Vehicle Wiring Harness And Hardware ( - 267649)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT373647	1	Wiring Harness	Vehicle
2	AT352237	1	Roof Wiring Harness	Return To Dig Wiring Harness and Horn
3	AT352236	1	Sensor Wiring Harness	Boom Height Kick Out (BHKO) Wiring Harness
4	AT351002	1	Roof Wiring Harness	Fan Compartment Wiring Harness
5	AT412661	1	Relay	SUB FOR AT398083
6	AT77726	1	Relay	-
7	AT360806	3	Hose Clamp	-
8	AT391081	1	Wiring Harness	Fan Filter Wiring Harness
9	AT392541	1	Wiring Harness	Cooling Package Wiring Harness
10	N380408	43	Clamp	-
11	19M7784	41	Screw	M10 X 20
12	AT38449	1	Ground Cable	-
13	28H1495	4	Spacer	0.493" X 0.675" X 1"
14	T76252	1	Clamp	-
15	19M9007	4	Screw	M6 X 12
16	T64784	1	Clip	-
17	T74410	1	Clamp	-
18	H224072	5	Clamp	-
19	19M7866	1	Screw	M8 X 20
20	57M10650	5	Clip Kit	-
21	R65476	1	Grommet	-
22	H226339	1	Clamp	-
23	19M7372	12	Cap Screw	M5 X 16
24	19M7775	3	Screw	M6 X 16
25	19M7867	2	Screw	M8 X 25
26	14M7303	3	Flange Nut	M6
27	14M7298	1	Flange Nut	M8
28	24M7027	4	Washer	5.300 X 10 X 1 mm
29	57M8736	1	Elec. Connector Accessory	-
30	14M7296	7	Flange Nut	M10
31	T290806	2	Angle	-
32	19M8320	2	Screw	M10 X 45
33	19M7786	1	Screw	M10 X 30
34	H224073	57	Tie Band	-
35	19M7805	2	Screw	M10 X 45
36	19M7785	1	Screw	M10 X 25
37	14M7396	1	Lock Nut	M8
38	T333577	2	Bracket	SUB FOR T249049

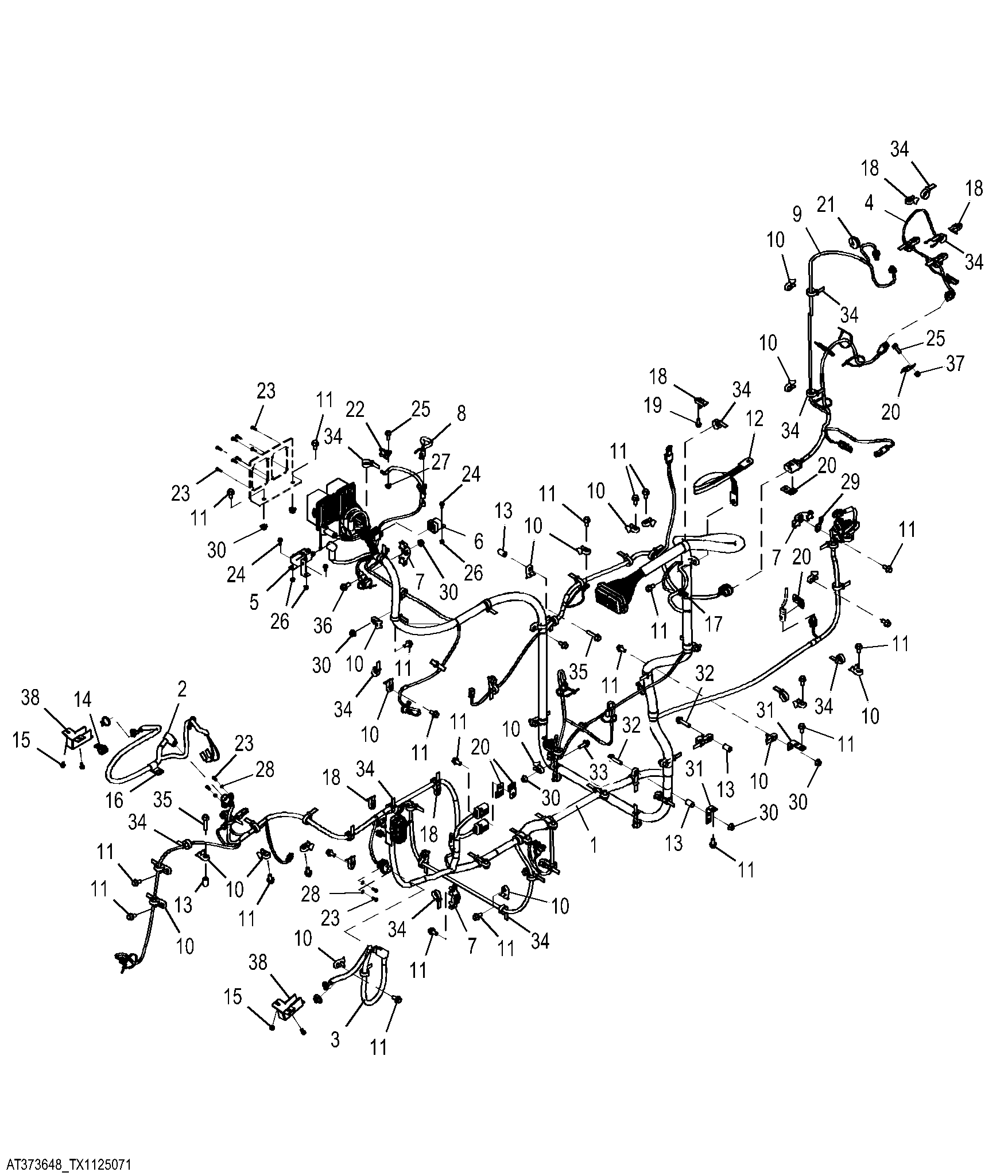

Vehicle Wiring Harness And Hardware ( - 267649)

Нет текстового описания
