Открытый узел

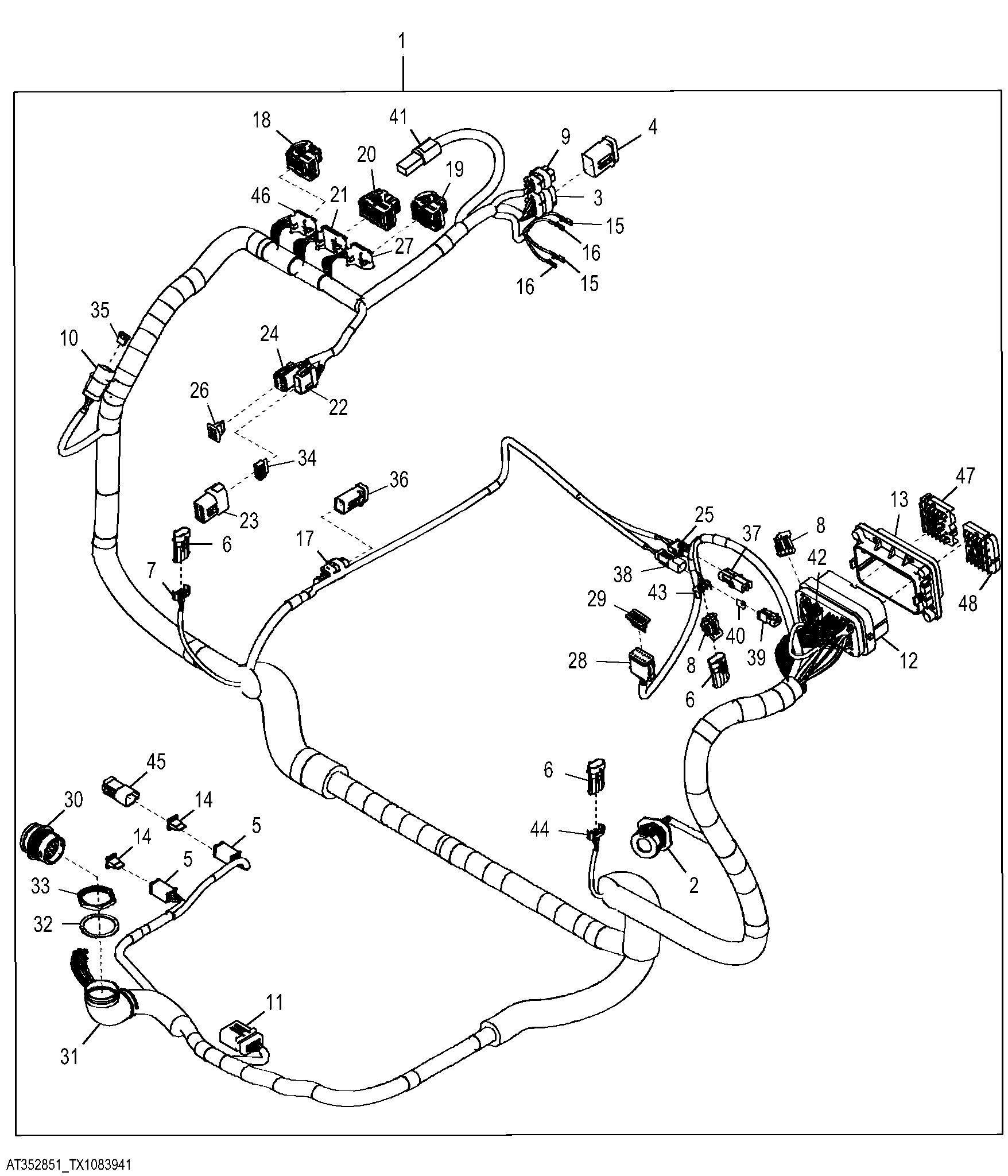

Operator Station Wiring Harness and Connectors

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT350452	1	Wiring Harness	Operator Station
2	57M9183	1	Elec. Connector Housing	Service ADVISOR™ Connector
3	57M9764	1	Elec. Connector Housing	Operator's Station Harness to Cab Roof Harness
4	57M9768	1	Elec. Connector Housing	-
5	57M8012	2	Electrical Connector Assy	24 V to 12 V Converter
6	57M7257	3	Elec. Connector Housing	-
7	57M7290	1	Elec. Connector Accessory	Park Lock Lever Switch Right
8	57M7255	2	Elec. Connector Housing	-
9	57M9750	1	Elec. Connector Housing	Operator's Station Harness to Cab / Canopy Roof Harness
10	57M8014	1	Elec. Connector Housing	Operator's Station Harness to Sealed Switch Module (SSM) Harness
11	57M9769	1	Elec. Connector Housing	Operator's Station Harness to Modular Telematics Gateway (MTG) Harness
12	57M9725	1	Elec. Connector Housing	Operator's Station Harness to Vehicle Harness
13	57M9690	1	Elec. Connector Terminal	-
14	57M8013	2	Elec.Connect Locking Device	-
15	57M9451	2	Elec. Connector Terminal	12 V Power Outlet
16	57M9711	2	Elec. Connector Terminal	12 V Power Outlet, Optional
17	57M9742	1	Elec. Connector Housing	Operator's Station Harness to Under Seat Heater Harness
18	57M10607	1	Elec. Connector Housing	-
19	57M8522	1	Elec. Connector Housing	-
20	57M10615	1	Elec. Connector Housing	-
21	57M10613	1	Elec. Connector Housing	Vehicle Control Unit (VCU) Connector J2
22	57M9653	1	Electrical Connector Assy	Hydraulic Joystick Connector
23	57M9575	1	Elec. Connector Housing	-
24	57M8746	1	Elec. Connector Housing	Pilot Control Enable
25	RE12363	1	Electrical Connector Assy	Air Seat Motor
26	57M8011	1	Elec.Connect Locking Device	-
27	57M10604	1	Elec. Connector Housing	Vehicle Control Unit (VCU) Connector J1
28	57M8636	1	Elec. Connector Housing	Transmission Control Lever (TCL)
29	57M8009	1	Elec.Connect Locking Device	-
30	57M9512	1	Elec. Connector Housing	-
31	57M9227	1	Elec. Connector Accessory	Operator's Station Harness to Front Dash Harness
32	57M7765	1	Lock Washer	-
33	57M8035	1	Nut	-
34	57M9658	1	Elec.Connect Locking Device	-
35	57M7678	1	Elec. Connector Terminal	-
36	57M9746	1	Elec. Connector Housing	-
37	R78053	1	Electrical Connector Assy	SUB FOR FFSB108873
38	57M8023	1	Elec. Connector Housing	Heated Seat Heater
39	57M8021	1	Electrical Connector Assy	-
40	57M7621	1	Elec.Connect Locking Device	-
41	57M9710	1	Elec. Connector Housing	Vehicle Control Unit (VCU) Connector J4
42	57M7290	1	Elec. Connector Accessory	Engine Speed Control
43	57M7290	1	Elec. Connector Accessory	Speed in Grip (SIG) Switch
44	57M7290	1	Elec. Connector Accessory	Park Lock Lever Switch Left
45	57M8014	1	Elec. Connector Housing	-
46	57M10604	1	Elec. Connector Housing	Vehicle Control Unit (VCU) Connector J3
47	Z77919	1	Elec. Connector Accessory	-
48	Z77920	1	Elec. Connector Accessory	-

Operator Station Wiring Harness and Connectors
