Cooling Package Wiring Harness and Connectors ( - 267649)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT392541	1	Wiring Harness	Cooling Package Wiring Harness
2	57M7254	1	Elec. Connector Housing	Hydraulic Fan Proportional Relief Solenoid
2	R104846	2	Elec. Connector Terminal	-
2	57M7258	2	Elec. Connector Seal	-
3	57M8021	1	Electrical Connector Assy	Hydraulic Fan Reversing Solenoid
3	R78065	2	Elec. Connector Terminal	-
4	57M9746	1	Elec. Connector Housing	Cooling Package Harness To Fan Compartment Harness
4	R78066	4	Elec. Connector Terminal	-
5	57M7289	3	Elec.Connect Locking Device	-
6	57M8022	1	Elec.Connect Locking Device	-
7	57M7256	1	Elec. Connector Housing	-
8	57M8023	1	Elec. Connector Housing	-
9	57M9768	1	Elec. Connector Housing	Cooling Package Harness To Vehicle Harness
9	R78066	7	Elec. Connector Terminal	-
9	57M9814	5	Elec. Connector Cavity Plug	-
10	57M7254	1	Elec. Connector Housing	Engine Coolant Level Switch
10	R104846	2	Elec. Connector Terminal	-
10	57M7258	2	Elec. Connector Seal	-
11	57M7254	1	Elec. Connector Housing	Engine Coolant Loss Switch
11	R104846	2	Elec. Connector Terminal	-
11	57M7258	2	Elec. Connector Seal	-

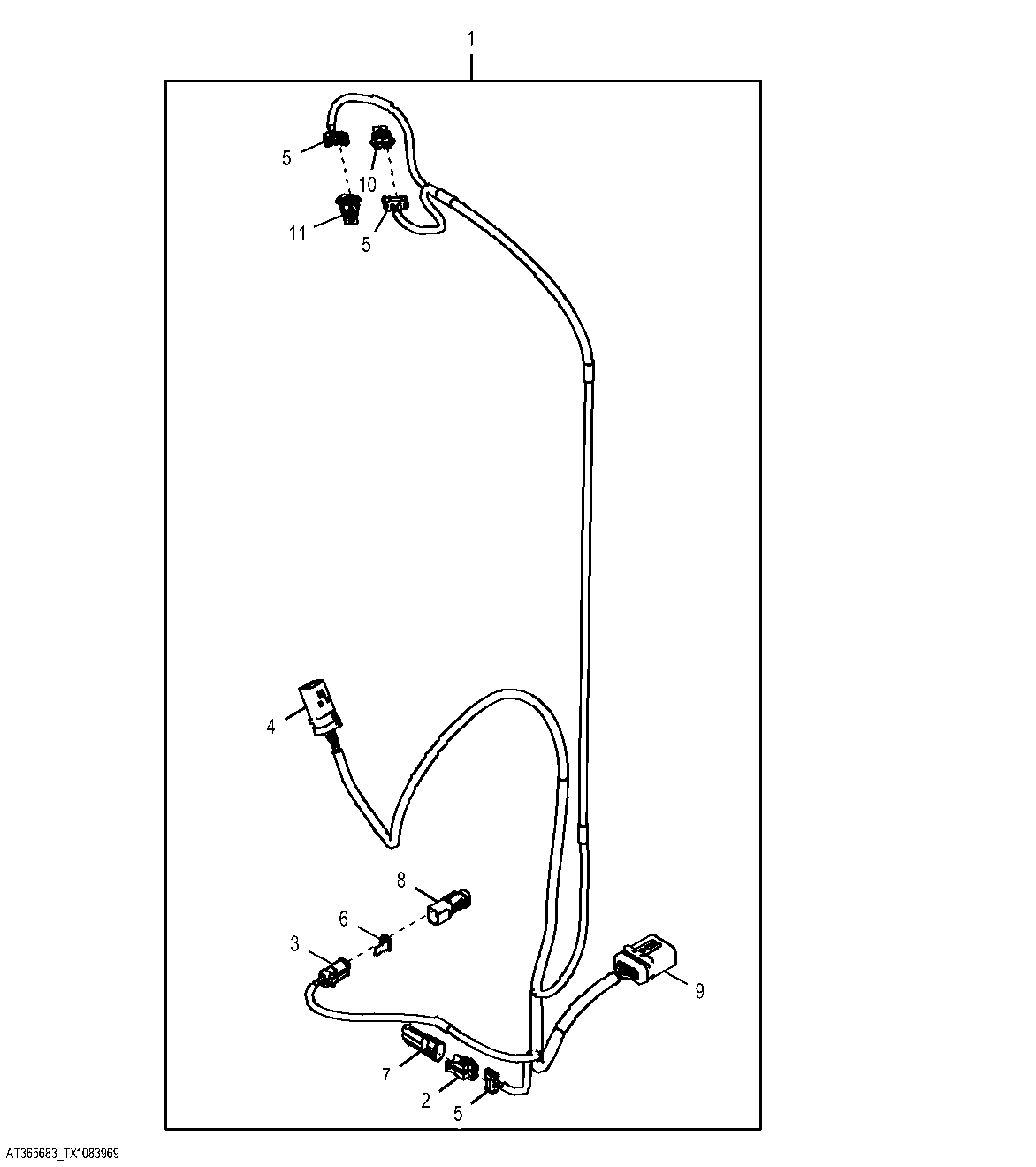

Cooling Package Wiring Harness and Connectors ( - 267649)
