Открытый узел

4429 TIMING GEAR COVER, WATER PUMP, LOWER IDLE GEAR

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE516674	1	Kit	(INCLUDES INSTRUCTIONS)
2	-	1	Part 2	NSEP, (MARKED R504725 ) (ORDER RE532938)
3	R545882	1	Gasket	SUB FOR R523183 OR R136516
4	RE517370	1	Fitting	M20 X 1.5
5	51M7044	1	O-Ring	17.300 X 2.200 mm
6	RE538097	1	Seal	(SUB FOR RE516340)
7	RE505981	1	Water Pump	(ALSO ORDER R123417 AND R123226 ) (SUB FOR RE515314, THIS APPLICATION)
7	SE501610	1	Water Pump Reman	(REMAN FOR RE505981)
8	RE46685	1	Fitting Plug	M18 X 1.5
9	51M7043	1	O-Ring	15.300 X 2.200 mm
10	R123226	1	Seal	-
11	-	1	Part 12	(MARKED R121036 ) (ORDER RE505981)NSEP
12	19M7863	5	Screw	M6 X 25
13	19M7796	2	Screw	M6 X 30
14	RE508566	1	Insert	(INCLUDES INSTRUCTIONS)
15	R123417	1	Gasket	-
16	19M8317	6	Screw	M8 X 40
17	R121424	1	O-Ring	91.669 X 3.531 mm (3-39/64" X 0.139")
18	R121411	1	Cover	-
19	19M7775	3	Screw	M6 X 16
20	19M8291	1	Screw	M8 X 35
21	RE67239	1	Screw	(THREADS WITH PRE-APPLIED SEALANT) M8 X 45
22	14M7296	6	Flange Nut	M10
23	19M7801	2	Screw	M8 X 60
24	19M7979	2	Screw	M8 X 55
25	RE56369	1	Gear	Z= 43, (MARKED R120636)
26	R114193	1	Bushing	-
28	R131283	1	Thrust Washer	11 X 60 X 3MM
29	19M8966	1	Screw	M10 X 50
30	RE505501	1	Bleed Valve	-
31	19M7867	1	Screw	M8 X 25
32	R504734	1	O-Ring	37.694 X 3.531 mm (1-31/64" X 0.139")

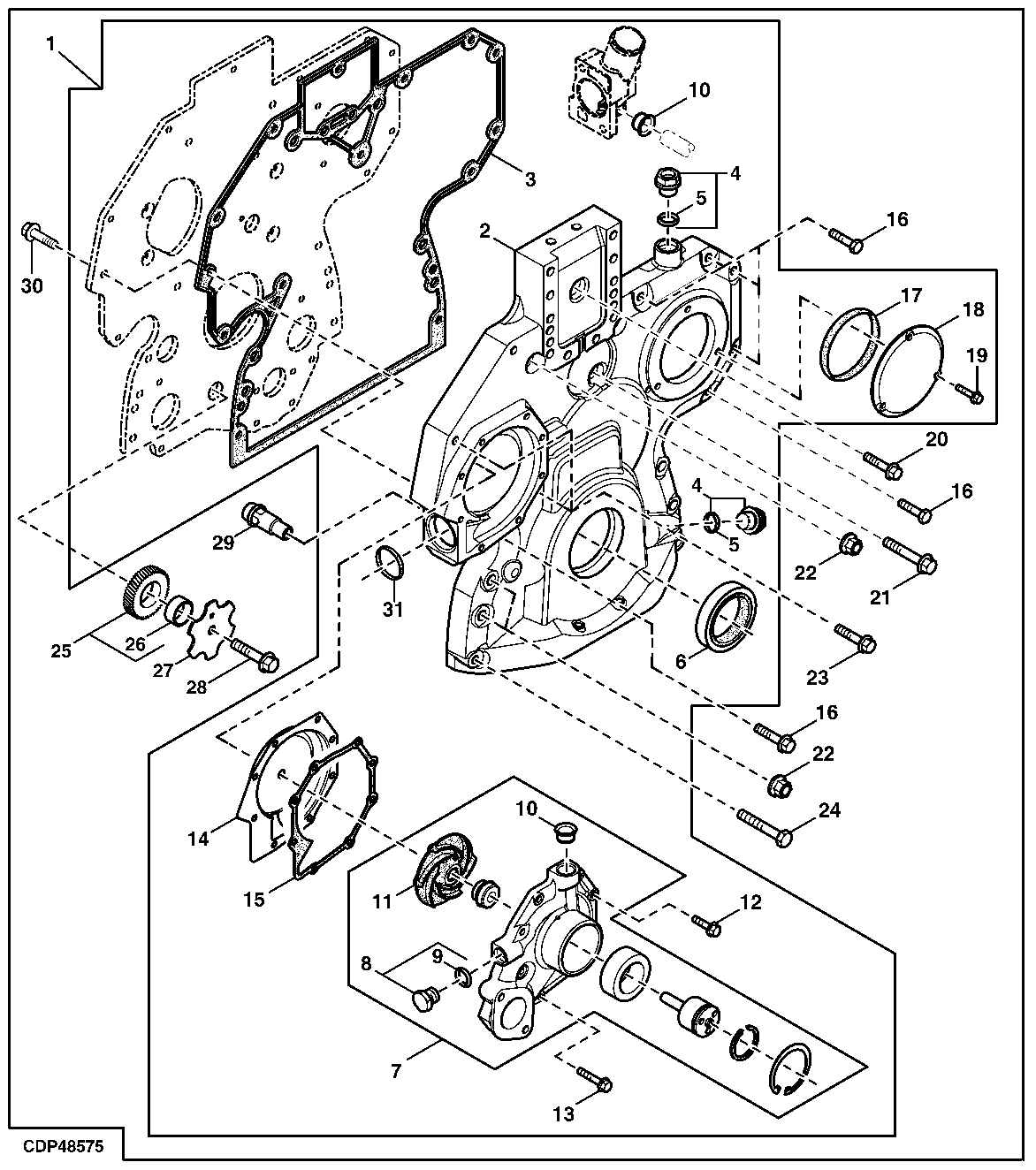

4429 TIMING GEAR COVER, WATER PUMP, LOWER IDLE GEAR
