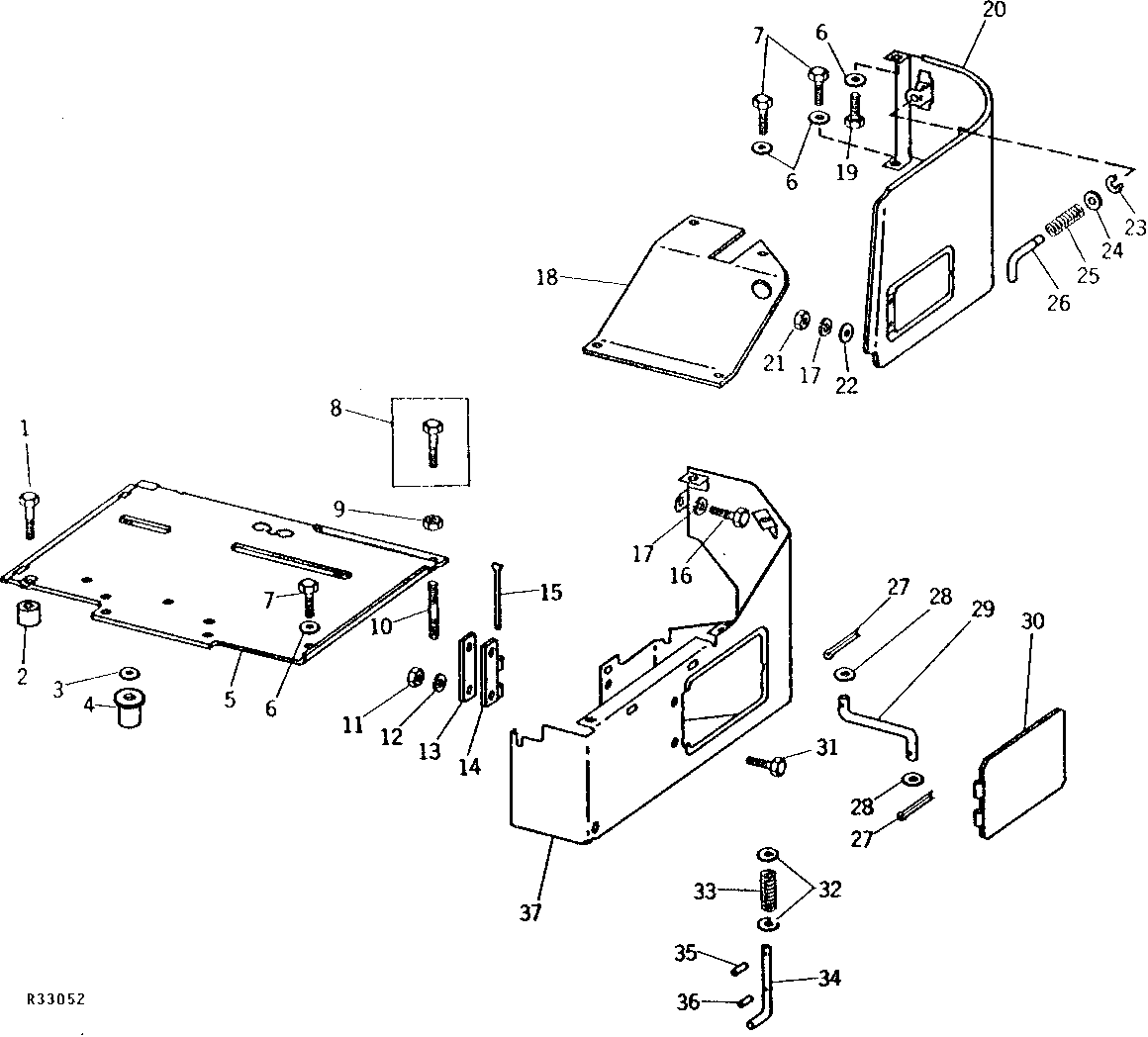

PLATFORM, TOOL BOX AND OPERATOR SHIELDS (STANDARD) [03I05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1726	2	Cap Screw	3/8" X 2-1/4"
2	28H1496	1	Spacer	0.493" X 0.675" X 1-1/8"
3	24M7098	2	Washer	(SUB FOR F2694R)
4	AR54467	2	SUPPORT	(NLA)
5	AR35206	1	PLATFORM	(NLA)
5	R45159	1	MAT	(BLACK RUBBER) (NLA)
6	24M7096	9	Washer	10.500 X 18 X 1.600 MM
7	19H2284	7	Cap Screw	3/8" X 7/8"
8	19H1726	1	Cap Screw	3/8" X 2-1/4"
9	14H1076	1	Nut	3/8"
10	R699R	1	STUD	-
11	14H786	2	Nut	1/4"
12	12H302	2	Lock Washer	1/4"
13	R35214	1	RETAINER	(NLA)
14	R35213	1	PLATE	(NLA)
15	R20538	1	PIN	-
16	19H1936	1	Cap Screw	3/8" X 3/4"
17	12H304	5	Lock Washer	3/8"
18	R35626	1	EXTENSION	R.H.
18	AR72135	1	MOLDING	(NLA)
19	19H1732	2	Cap Screw	3/8" X 1-1/4"
20	AR36773	1	SHIELD	L.H. (NLA)
20	AR36772	1	SHIELD	R.H. (NLA)
21	14H1076	4	Nut	3/8"
22	24M7096	4	Washer	10.500 X 18 X 1.600 MM
23	R72654	2	Snap Ring	(SUB FOR R27507)
24	24H1286	2	Washer	9/32" X 1/2" X 1/16"
25	R28783	2	Compression Spring	-
26	R27506	2	PIN	-
27	11M7079	2	Cotter Pin	0.098" X 0.472"
28	24H1286	2	Washer	9/32" X 1/2" X 1/16"
29	R40419	1	PIN FASTENER	(NLA)
30	AR36778	1	DOOR	-
31	19H1948	2	Cap Screw	1/4" X 3/4"
32	24M7096	2	Washer	10.500 X 18 X 1.600 MM
33	R1826R	1	Spring	-
34	R35210	1	PIN FASTENER	(NLA)
35	34H282	1	Spring Pin	3/16" X 1"
36	34H247	1	Spring Pin	1/8" X 3/4"
37	AR67385	1	TOOLBOX	(SUB FOR AR58545) (NLA)
37	R32239	1	Plug	-
