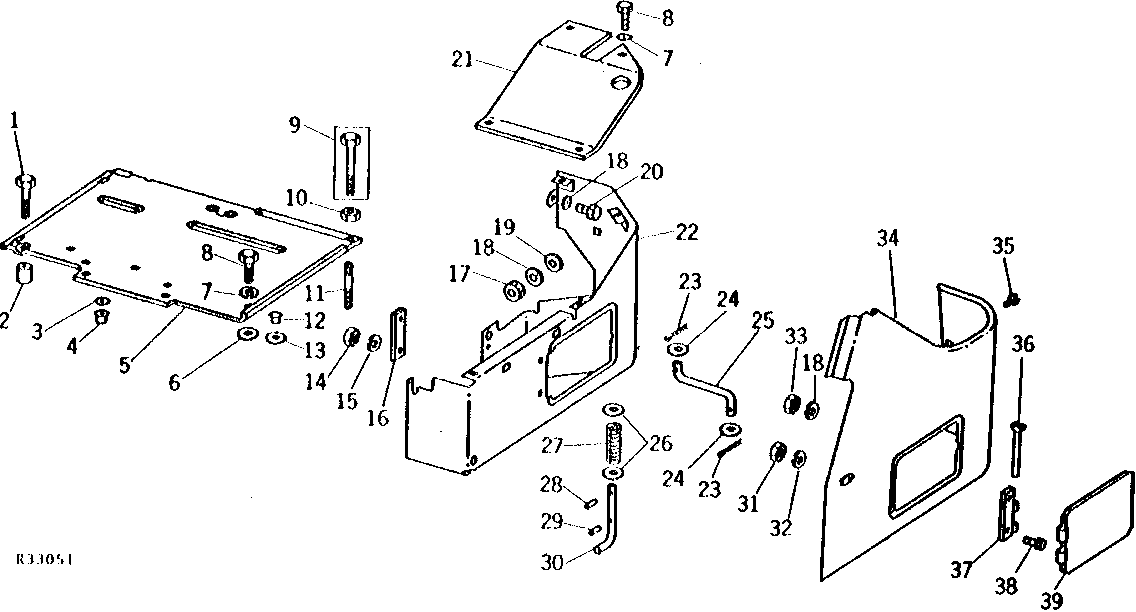

PLATFORM, TOOL BOX AND OPERATOR SHIELDS (ROW-CROP) [03I03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1726	2	Cap Screw	3/8" X 2-1/4"
2	28H1496	1	Spacer	0.493" X 0.675" X 1-1/8"
3	24M7098	2	Washer	(A) (SUB FOR F2694R)
4	AR54467	2	SUPPORT	(NLA)
4	AR54468	2	SUPPORT	(B) (NLA)
5	AR35206	1	PLATFORM	(NLA)
5	R45159	1	MAT	(BLACK RUBBER) (NLA)
6	R48378	3	Washer	(B)
7	24M7096	5	Washer	10.500 X 18 X 1.600 MM
8	19H2284	5	Cap Screw	3/8" X 7/8"
9	19H1726	1	Cap Screw	(A) 3/8" X 2-1/4"
9	19H1944	1	Cap Screw	(A) 3/8" X 2-3/4"
10	14H1076	1	Nut	3/8"
11	R699R	1	STUD	(A)
11	R826R	1	STUD	(A)
12	U42208	4	Isolator	(B)
13	24M7098	4	Washer	(B) (SUB FOR F2694R)
14	14H786	2	Nut	1/4"
15	12H302	2	Lock Washer	1/4"
16	R35214	1	RETAINER	(NLA)
17	14H1076	2	Nut	3/8"
18	12H304	7	Lock Washer	3/8"
19	24M7096	2	Washer	10.500 X 18 X 1.600 MM
20	19H1936	1	Cap Screw	3/8" X 3/4"
21	R35626	1	EXTENSION	(A) R.H.
21	AR63177	1	EXTENSION	(B) R.H. (SUB FOR R48094) (NLA)
22	AR67385	1	TOOLBOX	(SUB FOR AR58545) (NLA)
22	R32239	1	Plug	-
23	11M7079	2	Cotter Pin	0.098" X 0.472"
24	24H1286	2	Washer	9/32" X 1/2" X 1/16"
25	R40419	1	PIN FASTENER	(NLA)
26	24M7096	2	Washer	10.500 X 18 X 1.600 MM
27	R1826R	1	Spring	-
28	34H282	1	Spring Pin	3/16" X 1"
29	34H247	1	Spring Pin	1/8" X 3/4"
30	R35210	1	PIN FASTENER	(NLA)
31	14H785	2	Nut	5/16"
32	14H1076	4	Nut	3/8"
33	12H303	2	Lock Washer	5/16"
34	AR40930	1	SHIELD	(A) R.H. (NLA)
34	AR65968	1	SHIELD	(B) R.H. (NLA)
34	AR40931	1	SHIELD	(A) L.H. (NLA)
34	AR65969	1	SHIELD	(B) L.H. (NLA)
35	03H1765	2	Bolt	3/8" X 3/4"
36	R20538	1	PIN	-
37	R35213	1	PLATE	(NLA)
38	19H1948	2	Cap Screw	1/4" X 3/4"
39	AR36778	1	DOOR	-

PLATFORM, TOOL BOX AND OPERATOR SHIELDS (ROW-CROP) [03I03]
