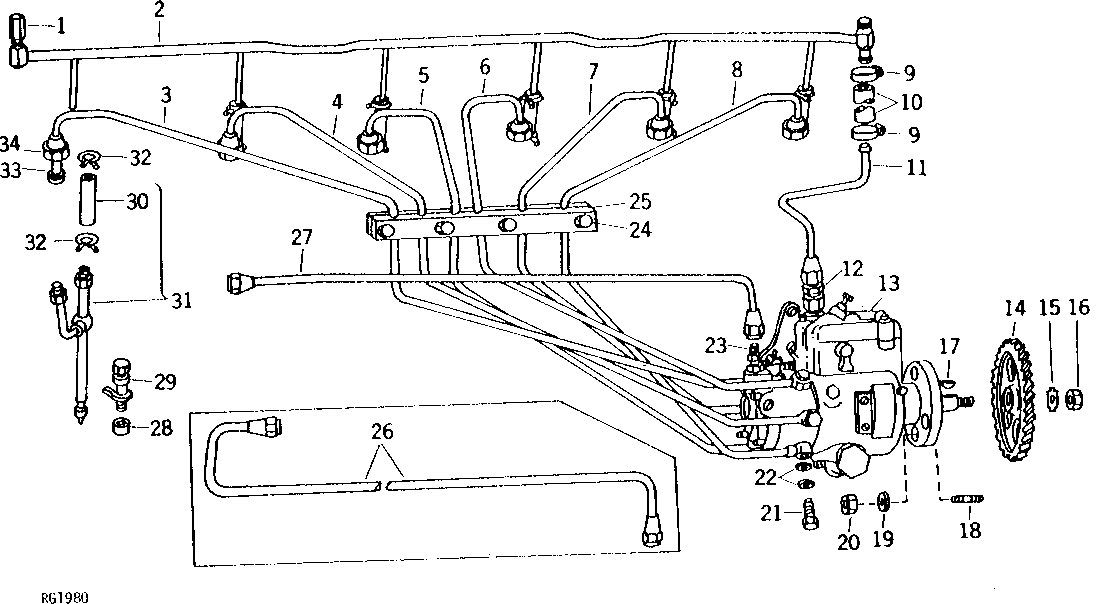

FUEL INJECTION PUMP, NOZZLES AND FUEL LINES (6531D) [01G09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R31147	1	Fitting	-
2	AR36680	1	FUEL LINE	-
3	AR36679	1	FUEL LINE	-
4	AR36678	1	FUEL LINE	-
5	AR36677	1	FUEL LINE	-
6	AR36676	1	FUEL LINE	-
7	AR36675	1	FUEL LINE	-
8	AR36674	1	FUEL LINE	-
9	AR21836	2	Clamp	(SUB FOR AR27253)
9	TY22559	1	Bulk Hose	(BULK)
10	R32639	1	HOSE	(SUB FOR R36971) (SUB TY22559)
10	TY22559	1	Bulk Hose	(BULK)
11	AR36358	1	FUEL LINE	-
12	R35352	1	Fitting	-
13	AR46386	1	FUEL INJECTION PUMP	(SUB SE500555) (ROOSA-MASTER NO. DBGFC637-91AL) (6030, 5020&) (NLA)
13	AR36877	1	FUEL INJECTION PUMP	(ROOSA-MASTER NO. BDGFC637-50AJ) (5020*)
13	SE500555	1	FUEL INJECTION PUMP REMAN	(REMAN FOR AR46386)
14	R35354	1	GEAR	-
15	R35355	1	PLATE	-
16	14H888	1	Nut	9/16"
17	-	1	Part 21	(6030)
18	R56481	2	STUD	(SUB FOR M3636T)
19	24H1303	2	WASHER	13/32" X 11/16" X 0.065"
20	14H1090	2	Nut	3/8", (SUB FOR E55662, APPL)
21	R26726	6	HOLLOW SCREW	-
22	T20055	12	WASHER	-
23	R32136	1	FITTING	-
24	19H2117	4	Cap Screw	5/16" X 1-1/8"
25	R35353	1	CLAMP	-
25	R39622	2	CUSHION	-
26	AR35087	1	FUEL LINE	-
27	AR50266	1	FUEL LINE	-
28	R34761	6	SPACER	-
29	R34760	6	CLAMP	-
30	R34765	6	BOOT	-
31	-	6	Part 36	(SUB AR50782) (SUB FOR AR36672 OR AR44978)
31	R60746	6	WASHER	(USE WITH AR50782) (SUB FOR R34764, APPL)
31	R48000	6	Seal	(USE WITH AR50782)
31	AR50782	6	INJECTION NOZZLE	-
31	SE501164	1	INJECTION NOZZLE REMAN	(ALSO ORDER R34765) (REMAN FOR AR50782)
32	R34766	12	Clamp	-
33	R34762	6	SLEEVE	-
34	R34763	6	FITTING	-
..	AR34368	1	PLUG	(NLA)
..	12H304	2	Lock Washer	3/8", (USE WITH 24H1303)

FUEL INJECTION PUMP, NOZZLES AND FUEL LINES (6531D) [01G09]
