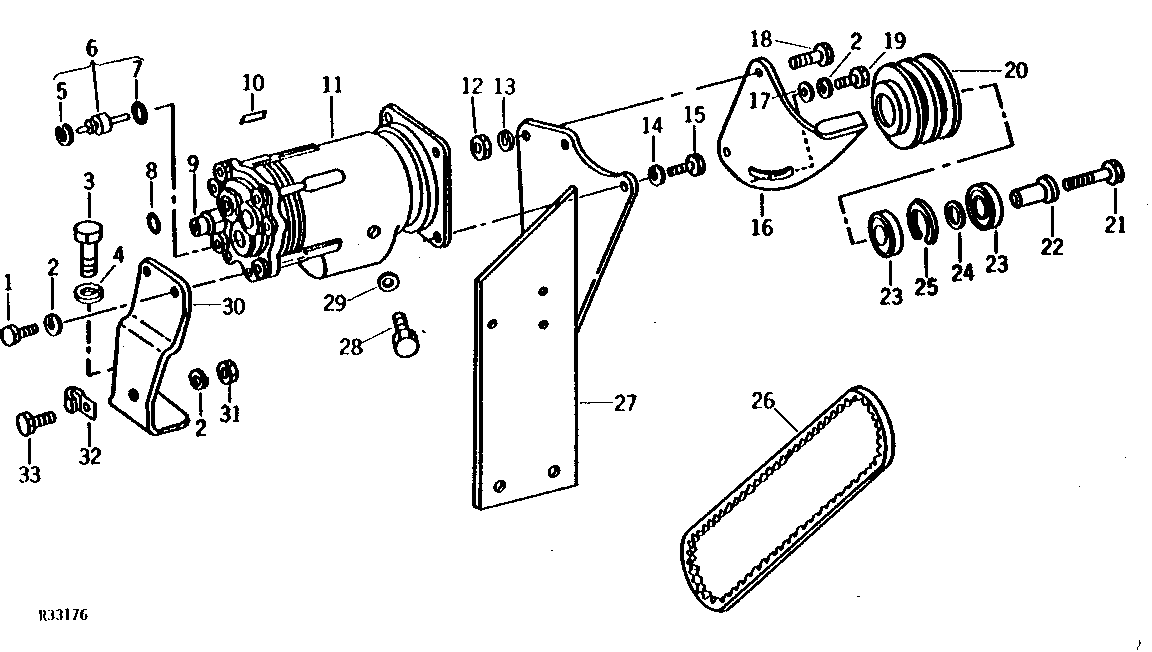

COMPRESSOR AND MOUNTING BRACKETS (HINSON) (6531D) [03G22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7662	2	Cap Screw	M10 X 30
1	19H1731	2	Cap Screw	3/8" X 1"
2	12M7066	2	Lock Washer	M10
2	12H304	2	Lock Washer	3/8"
3	19H1756	1	Cap Screw	5/8" X 1-1/2"
4	12H294	1	Lock Washer	5/8"
5	R63571	1	SNAP RING	-
6	AR78501	1	KIT	SUPER HEAT ASSEMBLY
6	R49856	1	OIL	COMPRESSOR, (SUB TY6384)
7	32240	1	O-Ring	-
8	R47235	2	O-RING	-
9	AR49808	1	VALVE	PRESSURE RELIEF
10	R46733	1	LABEL	CHHARGE
11	AR77343	1	COMPRESSOR	(SUB FOR AR68802 OR AR60948) (SUB TY6665, 19M7170, (3) 19M7163, (2) 19M7662, (3) 12M7065 AND (2) 12M7066)
11	AR92109	1	COMPRESSOR	(SUB TY6665)
11	TY6665	1	COMPRESSOR	-
11	SE501456	1	COMPRESSOR	(REMAN FOR AR92109 OR TY6665)
12	14H1047	1	Nut	7/16"
13	12H293	1	Lock Washer	7/16"
14	12H303	1	Lock Washer	5/16"
14	12M7065	1	Lock Washer	M8
15	19H2529	2	Cap Screw	5/16" X 1"
15	19M7163	3	Cap Screw	M8 X 25
16	AR46987	1	BRACKET	(NLA)
17	24M7096	1	Washer	10.500 X 18 X 1.600 MM
18	19H1821	1	CAP SCREW	7/16" X 1-1/4"
19	19H2552	1	CAP SCREW	3/8" X 1-1/8"
20	R43845	1	IDLER	-
21	R20634	1	BOLT	-
22	R43843	1	BUSHING	-
23	JD7142	2	Ball Bearing	-
24	R42841	1	WASHER	-
25	D398R	1	SNAP RING	-
26	R45112	1	V-BELT	-
27	AR46971	1	SUPPORT	(NLA)
28	R47233	1	PLUG	-
29	R47234	1	WASHER	-
30	R45117	1	SUPPORT	-
31	14H1076	1	Nut	3/8"
32	R45211	1	Clamp	-
33	19H2021	1	Cap Screw	3/8" X 5/8"
..	R49856	1	OIL	COMPRESSOR, (SUB TY6384)

COMPRESSOR AND MOUNTING BRACKETS (HINSON) (6531D) [03G22]

Нет текстового описания
