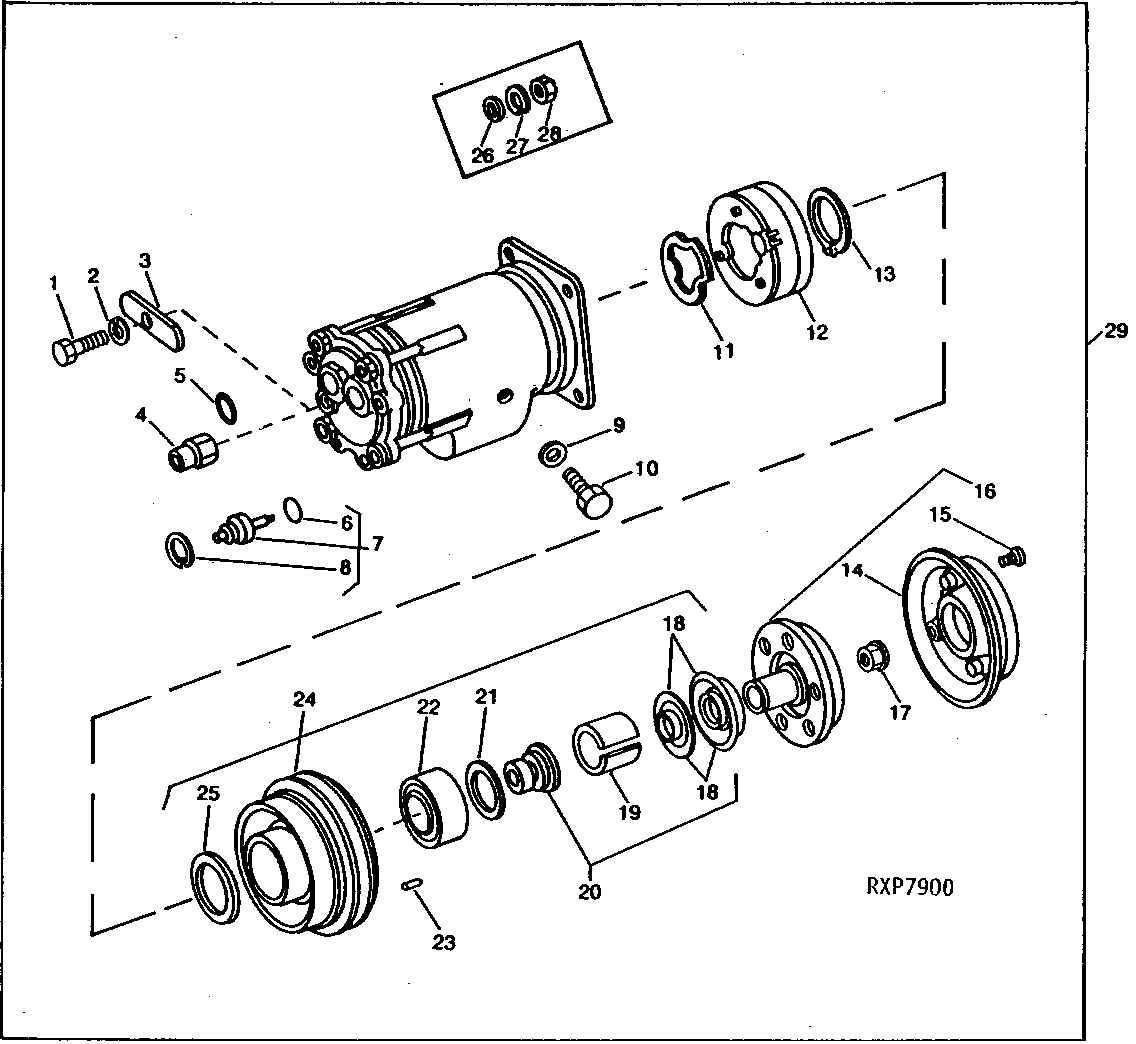

COMMPRESSOR, COIL, CLUTCH AND PULLEY (HINSON) (6531A) [03G19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7170	1	Cap Screw	M10 X 50
2	12M7066	1	Lock Washer	-
3	R60171	1	STRAP	-
4	AR49808	1	VALVE	-
5	R47235	2	O-RING	-
6	32240	1	O-Ring	-
7	AR78501	1	KIT	-
8	R63571	1	SNAP RING	-
9	R47234	1	WASHER	-
10	R47233	1	PLUG	-
11	R56246	1	GASKET	(A)
12	AR49803	1	ELECTRICAL COIL	(A)
13	R47224	1	SNAP RING	(A)
14	AR71290	1	COVER	(SUB FOR AR53446)
15	37H32	3	SCREW	0.190" X 3/8"
16	AR71286	1	CLUTCH	(SUB FOR AR63255)
17	R69297	1	FLANGE NUT	-
18	AR71289	1	SHIELD	(SUB FOR R47228 AND AR63254)
19	R47227	1	SEAL	(A)
20	AR71285	1	Valve Kit	COMPRESSOR SHAFT SEAL WITH PULLEY BEARING FRONT SHIELD, (SUB FOR AR49806)
21	R47226	1	SNAP RING	(A)
22	AR71288	1	BALL BEARING	(SUB FOR AR49805)
23	R47229	1	SHAFT KEY	-
24	AR71287	1	PULLEY	(SUB FOR AR49804)
25	R54766	1	WASHER	-
26	R47230	1	WASHER	(SUB R69297, THIS APPLICATION)
27	R69297	1	FLANGE NUT	(SUB FOR R47231)
28	R47232	1	NUT	(SUB FOR R69297)
29	AR77343	1	COMPRESSOR	(SUB FOR AR68802, AR60748, AR49802 OR AR49799) (SUB TY6665, 19M7120, (3) 19M7163, (2) 19M7662, (3) 12M7065, (2) 12M7066)
29	AR92109	1	COMPRESSOR	(SUB TY6665)
29	TY6665	1	COMPRESSOR	-
29	SE501456	1	COMPRESSOR	(REMAN FOR AR92109 OR TY6665)
