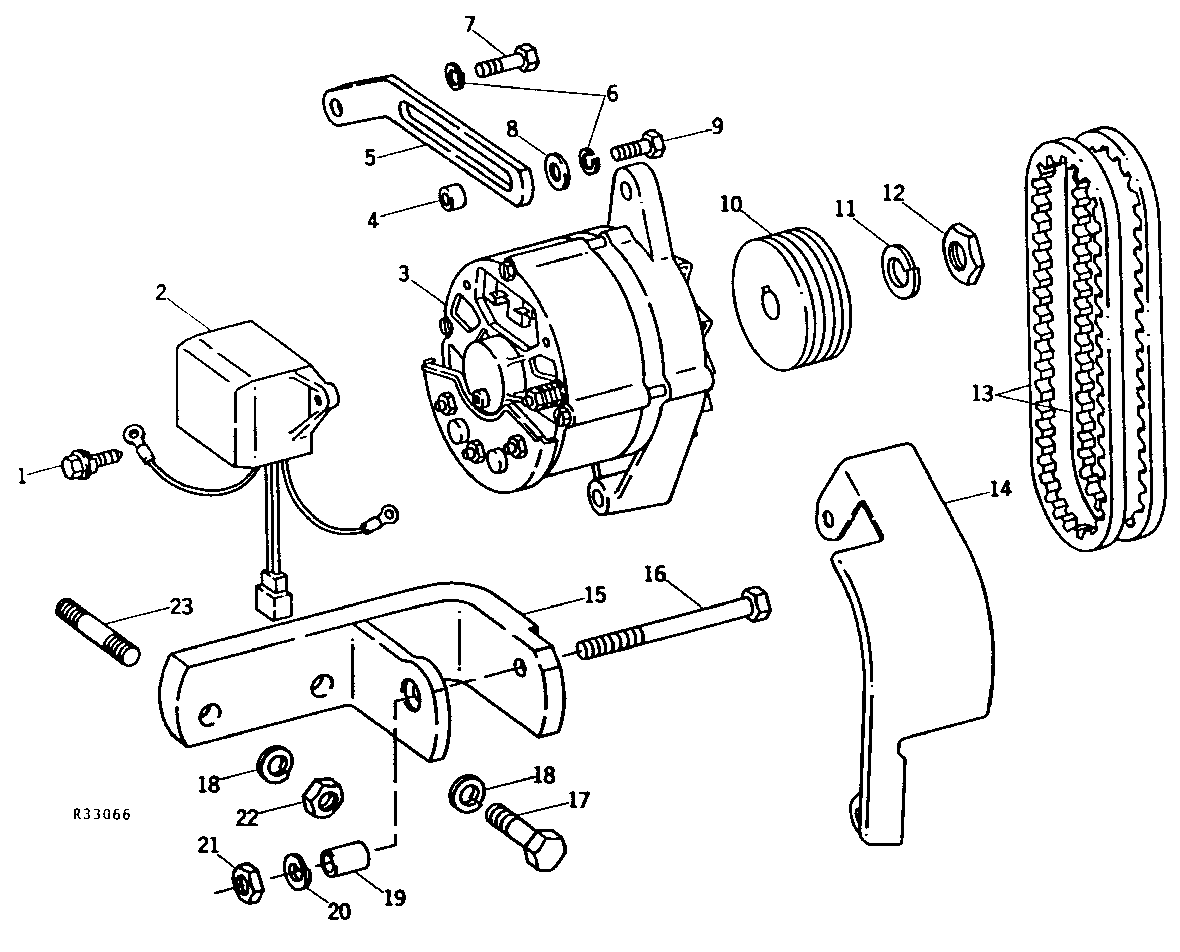

ALTERNATOR, REGULATOR AND MOUNTING BRACKET (MOTOROLA) (6531A) [02B12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	37H201	3	Screw	(SUB FOR R44008)
2	AR78298	1	VOLTAGE REGULATOR	(SUB FOR AR52927)
3	AR40420	1	ALTERNATOR	(MOTOROLA NO. 70D4410C01 OR PRESTOLITE NO. RA12NJD604) (12-VOLT) (55 AMP) (SUB TY26017)
3	TY24307	1	ALTERNATOR	(12-VOLT) (55 AMP) (SUB FOR TY1430) (SUB TY26017)
3	SE501357	1	Alternator Reman	(REMAN FOR TY26017 OR AR40420)
4	R51649	1	Bearing Race	-
5	R49593	1	STRAP	-
6	12H303	2	Lock Washer	5/16"
7	19H1900	1	Cap Screw	5/16" X 3/4"
8	24H1292	1	Washer	11/32" X 3/4" X 0.120"
9	19H2831	1	Cap Screw	5/16" X 1-1/2"
10	R43828	1	PULLEY	-
11	12H294	1	Lock Washer	5/8"
12	14H866	1	Nut	5/8"
13	AR53099	1	BELT SET	-
14	R51933	1	SHIELD	(SUB R55223)
14	R55223	1	Shield	-
15	AR53450	1	BRACKET	(SUB AR78393) (ALSO ORDER 19H2023)
15	AR78393	1	Bracket	-
16	19H1854	1	Cap Screw	3/8" X 3-3/4"
16	19H2023	1	CAP SCREW	3/8" X 3-1/4"
17	19H1978	1	Cap Screw	7/16" X 1-1/2"
18	12H293	2	Lock Washer	7/16"
19	R45377	1	SPACER	-
20	12H304	1	Lock Washer	3/8", (NOT REQUIRED W/E55662)
21	E55662	1	Flange Nut	3/8"
22	14H1047	1	Nut	-
23	K3083R	1	STUD	-

ALTERNATOR, REGULATOR AND MOUNTING BRACKET (MOTOROLA) (6531A) [02B12]
