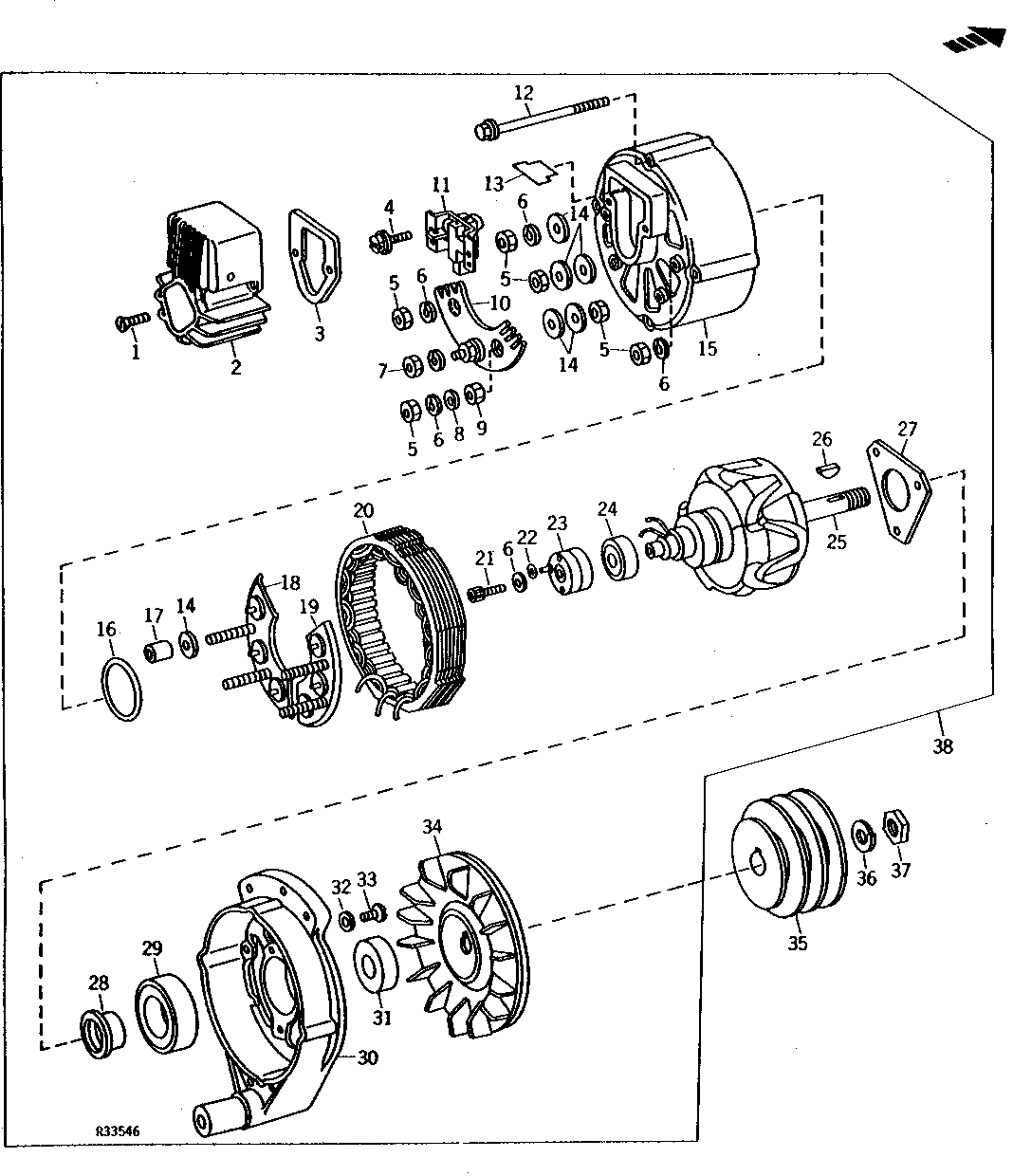

ALTERNATOR (12-VOLT) (72 AMP) (AIR CONDITIONING) (MOTOROLA) (6531D) [02B23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T31308	4	SCREW	-
2	AT56592	1	REGULATOR	(SUB FOR AR52079)
3	T29100	1	GASKET	-
4	37H10	2	Screw	0.164" X 3/8"
5	14H778	8	Nut	0.190"
6	12H246	7	LOCK WASHER	0.190"
7	14H786	1	Nut	1/4"
7	12H297	1	Lock Washer	1/4"
8	R15036	1	WASHER	INSULATOR, (SUB FOR R39804)
9	R39803	1	WASHER	INSULATOR
10	R30964	1	Cover	OUTPUT TERMINAL
10	AR50229	1	Diode	INSULATOR, TRIPLE
11	AT27128	1	HOLDER	-
12	R47460	4	BOLT	-
13	T25357	1	Insulator	-
14	R15036	7	WASHER	INSULATOR
15	R48728	1	HOUSING	-
16	T29105	1	RETAINER	-
17	T25353	2	BUSHING	-
18	AH103067	1	PLATE	POSITIVE, (SUB FOR AR50225)
19	AH103068	1	PLATE	NEGATIVE
20	AR50226	1	Stator	-
21	T17948	1	SCREW	(SUB FOR T29102)
22	R47461	1	INSULATOR	-
23	AT27127	1	RING	(NLA)
24	JD9449	1	Ball Bearing	(SUB FOR AT23188)
25	AR50227	1	ROTOR	-
26	26H9	1	SHAFT KEY	1/8" X 5/8"
27	T25346	1	RETAINER	-
28	R47462	1	SLEEVE	-
29	AR50228	1	BALL BEARING	-
30	AR50230	1	HOUSING	-
31	R47463	1	SPACER	-
32	12H315	3	Lock Washer	0.164"
33	21H1299	3	SCREW	0.164" X 3/8"
34	AR50231	1	FAN	-
35	R55077	1	PULLEY	-
36	12H294	1	Lock Washer	5/8"
37	14H866	1	Nut	5/8"
38	AR52078	1	ALTERNATOR	(MOTOROLA NO. 70D44417C01) (SUB TY6604)
38	TY6604	1	ALTERNATOR	(REMANUFACTURED) (SUB FOR AR52078)

ALTERNATOR (12-VOLT) (72 AMP) (AIR CONDITIONING) (MOTOROLA) (6531D) [02B23]
