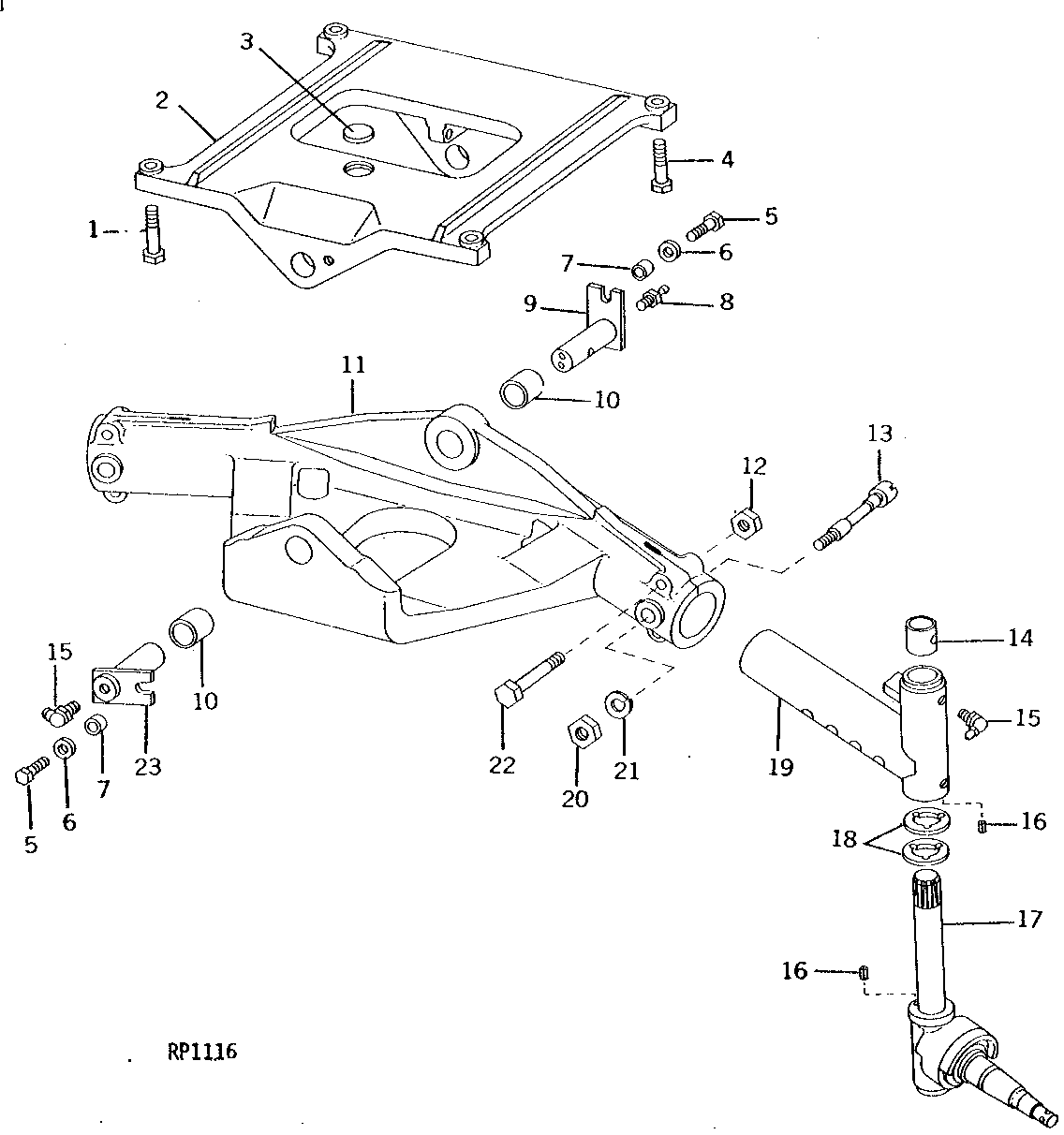

ADJUSTABLE TREAD FRONT AXLE HOUSING, PIVOT BRACKET AND KNEE (ROW-CROP AND STANDARD) [03F03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1862	2	Cap Screw	3/4" X 2-1/2"
2	R49410	1	BRACKET	(NLA)
3	30H26	1	Plug	2-1/8"
4	19H1715	2	Cap Screw	3/4" X 3"
5	19H3265	2	Cap Screw	1/2" X 1-7/8"
6	24H1272	2	Washer	9/16" X 1-1/4" X 1/4"
7	R36728	2	BUSHING	-
8	JD7759	1	Lubrication Fitting	-
9	AR36078	1	PIN	(WITH STRAP)
10	R35389	2	BUSHING	-
11	AR36638	1	HOUSING	(A) (MARKED R40260) (NLA)
12	14H794	4	Nut	3/4"
13	R40198	2	BOLT	-
14	R52188	4	Bushing	(SUB FOR R28471)
15	JD7781	5	Lubrication Fitting	-
16	34H308	4	Spring Pin	1/4" X 1/2"
17	AR36636	2	KNUCKLE	(SUB AR45807, R26333) AND 19H1863
17	AR45807	2	KNUCKLE	(ALSO ORDER R26333) AND 19H1863
18	R30398	4	Washer	-
19	AR36703	1	AXLE	(A) R.H. KNEE, (NLA)
19	AR36704	1	AXLE	(A) L.H. KNEE, (NLA)
19	AR41261	1	AXLE	(A) 2235MM (88") ADJUSTABLE TREAD FRONT AXLE, R.H. KNEE, (NLA)
19	AR41262	1	AXLE	(A) 2235MM (88") ADJUSTABLE TREAD FRONT AXLE, L.H. KNEE, (NLA)
20	14H854	2	NUT	1"
21	12H234	2	LOCK WASHER	1"
22	19H2000	4	Cap Screw	3/4" X 5"
23	AR36079	1	PIN	(WITH STRAP)

ADJUSTABLE TREAD FRONT AXLE HOUSING, PIVOT BRACKET AND KNEE (ROW-CROP AND STANDARD) [03F03]
