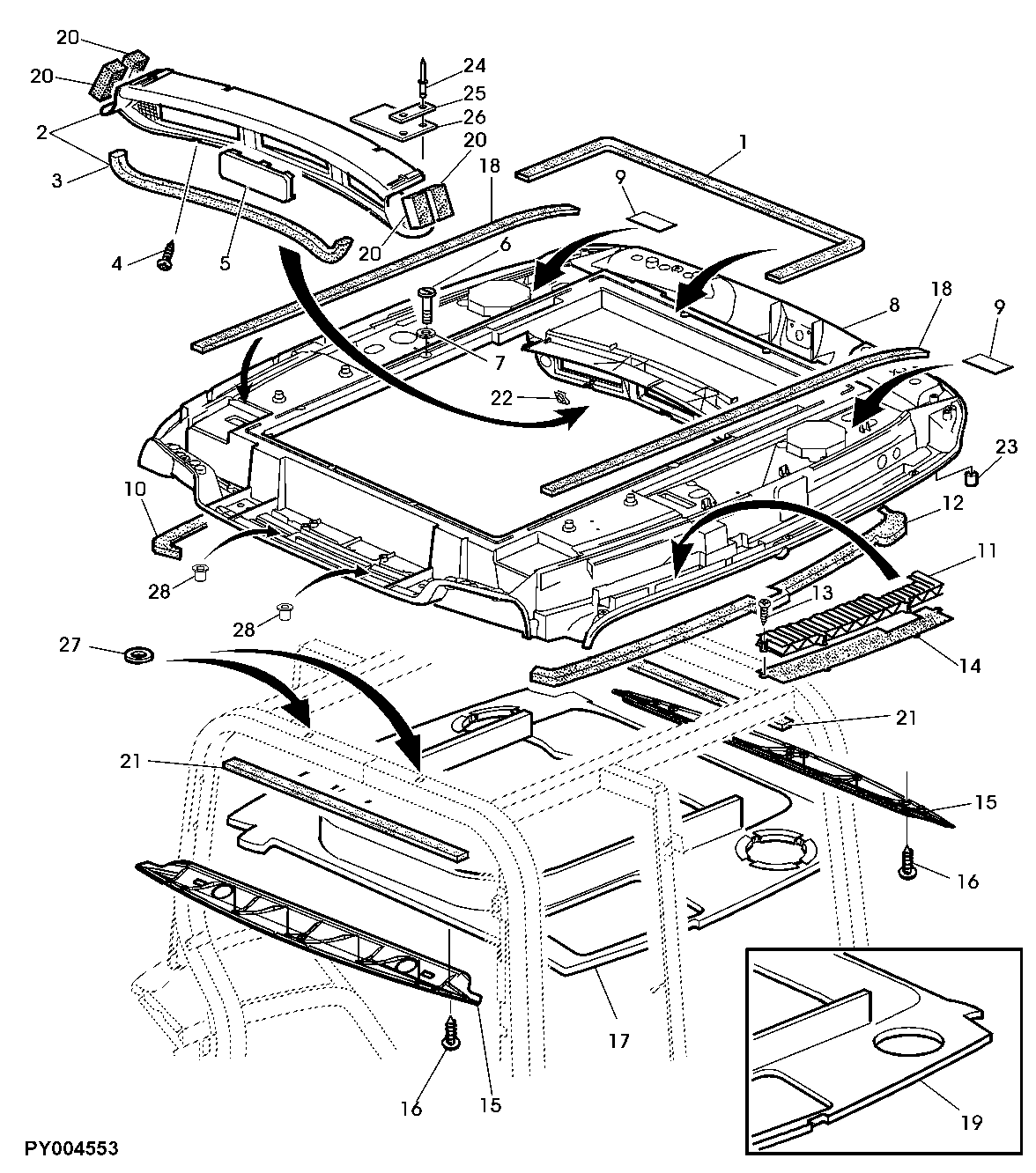

HEADLINER, HEADLINER TRIM (WITH HINGED HATCH)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	LGTH= 4200MM (165-23/64"), (MF L155025)
2	AL207534	1	Panel	(SUB FOR L153848, AL157618, AL203535)
3	L154810	1	Insulator	(SUB FOR L151585)
4	37M7088	3	Screw	-
5	L152335	3	Cover	-
6	37M7091	2	Screw	M6 X 25
7	24M7309	2	Washer	6.600 X 22 X 2 mm
8	AL172927	1	Roof	(SUB FOR AL150425, AL151541, AL158953)
9	R81207	6	Cover	-
10	L100413	1	Gasket	LH
11	L155256	2	Deflector	(SUB FOR L151679)
12	L100414	1	Gasket	RH
13	37M7358	8	Screw	-
14	L155257	2	Air Intake	(SUB FOR L151678)
15	L157470	2	Molding	(SUB FOR L156241)
15	L154571	2	Molding	(WITH SUN-BLIND)
16	21M7292	1	Screw	M6 X 16
17	AL160598	1	Headliner	(SUB FOR L153294, AL159014)
17	AL207904	1	Headliner	(WITH EXTRA STORAGE COMPARTMENT AT REAR LEFT) SUB FOR AL181224
17	AL207903	1	Headliner	(ROOF HATCH, WITHOUT EXTRA STORAGE COMPARTMENT) SUB FOR AL181206
17	AL160599	1	Panel	(WITH EXTRA STORAGE COMPARTMENT AT REAR LEFT) (SUB FOR L153295, AL159015)
18	-	2	Part 22	LGTH= 1500MM (59-1/16"), (MF L155025)
19	AL159014	1	Panel	(ORD AL160598 (2) L157462)
19	AL159015	1	Panel	(WITH EXTRA STORAGE COMPARTMENT AT REAR LEFT) (ORD AL160599 (2) L157462)
20	L110138	4	Pad	-
21	L157462	2	Isolator	-
22	L156275	3	Nut	-
23	L152460	1	Bushing	-
24	L78561	2	Rivet	(WITHOUT AIR-CONDITIONING)
25	L111574	1	Strap	(WITHOUT AIR-CONDITIONING)
26	L111575	1	Flap	(WITHOUT AIR-CONDITIONING)
27	L79335	2	Washer	-
28	L100286	1	Bushing	-
..	L155025	1	Weatherstrip	LGTH= 18000MM (708-21/32")
..	AL172330	1	Spout	FI (INCL KEY 28)

HEADLINER, HEADLINER TRIM (WITH HINGED HATCH)
