Electronically Operated Control Valve (E-ICV) Center Cab, RH

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL171959	2	Motor	(SUB FOR AL157359)
1	AL171959	2	Motor	(ORD W/ L156629) (SUB FOR AL157359)
2	L156629	1	Rack	LGTH = 54MM
2	L156628	1	Rack	LGTH = 44MM, (SUB FOR AL154928 APPL)
3	19M8705	6	Screw	M6 X 65
4	AL117105	1	Tune-Up Kit	(SUB FOR L111774)
5	14H1042	4	Nut	5/16"
6	14H1080	2	Nut	3/8"
7	L111836	2	O-Ring	-
8	AL117107	1	Tune-Up Kit	(ORD AL160989, L156628)
8	AL160989	1	Tune-Up Kit	-
9	AL118517	1	Seal Kit	-
10	AL118518	1	Tune-Up Kit	-
11	AL118652	1	Tune-Up Kit	-
12	19H2924	2	Screw	1/4" X 3/4"
13	T142419	1	O-Ring	(SUB FOR L35870 APPL)
14	AL80393	1	Gasket Kit	-
15	R459R	2	O-Ring	-
16	T46864	1	O-Ring	-
17	R26287	1	O-Ring	(SUB FOR H135641 APPL)
18	19H2992	2	Screw	1/4" X 1-1/4"
19	L115717	1	Valve Spool	-
20	R111238	1	Compression Spring	-
21	R95493	1	Disk	-
22	L111775	2	Stud	(ORD AL118512)
23	L111776	1	Stud	(ORD AL118512)
24	AL118512	1	Tune-Up Kit	-
25	AL117108	1	Tune-Up Kit	(ORD AL160990, L156628)
25	AL160990	1	Tune-Up Kit	-
26	AL116082	1	Selective Control Valve	(ORD AL159738, (3) L156628)
26	AL159738	1	Selective Control Valve	-
..	AL159296	1	Selective Control Valve	FI, (INCL KEYS 1, 3, AL159738)

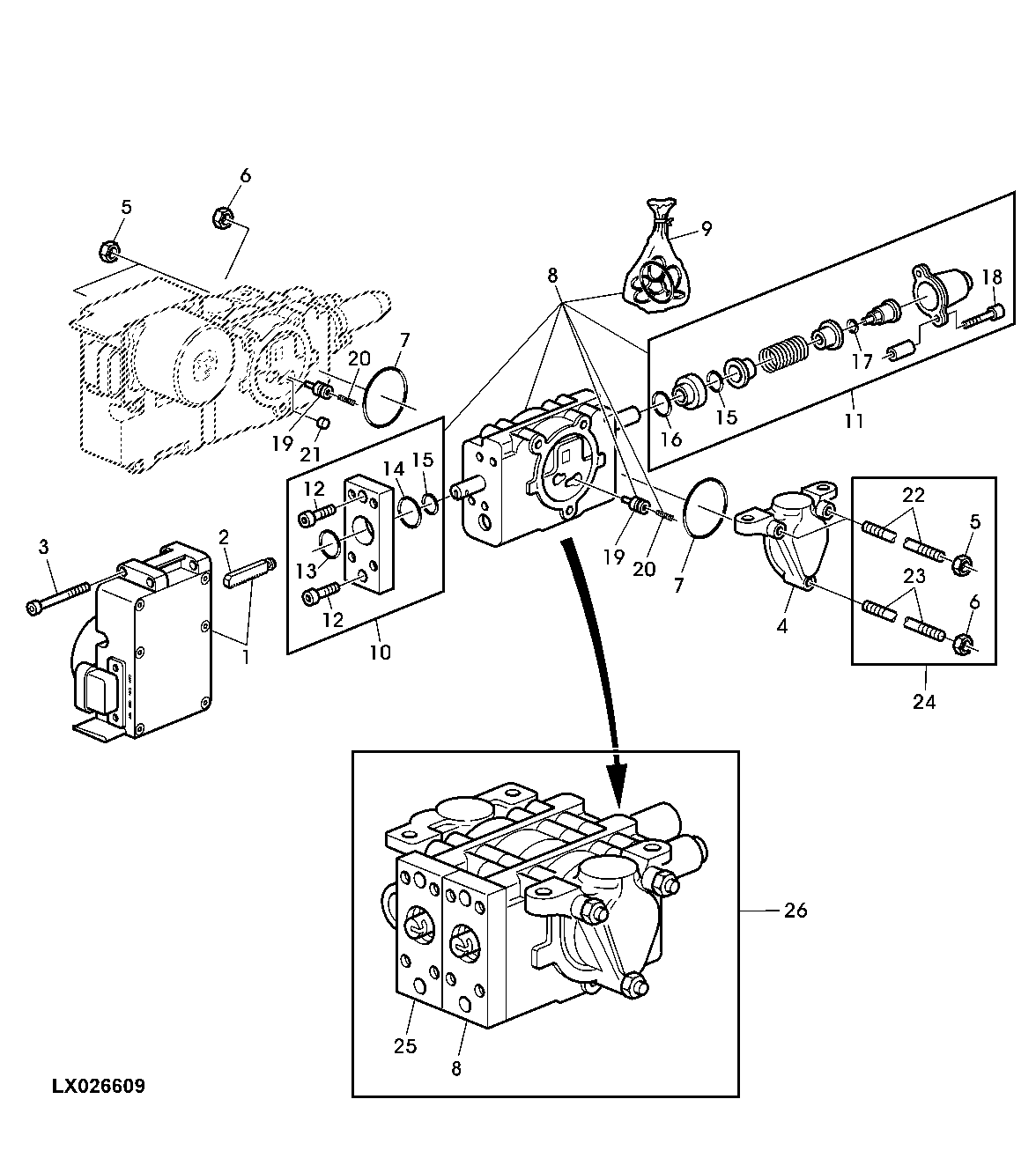

Electronically Operated Control Valve (E-ICV) Center Cab, RH

Нет текстового описания
