ACCEL. PEDAL (OPEN OPERATOR'S STATION / LOW PROFILE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL153748	1	Rod	(WITH MECHANICAL SPEED CONTROL)
2	R58511	1	Arm	(WITH MECHANICAL SPEED CONTROL)
3	L110311	1	Torsion Spring	(WITH MECHANICAL SPEED CONTROL)
4	L110988	1	Lever	(WITH MECHANICAL SPEED CONTROL)
5	34H394	2	Spring Pin	(WITH MECHANICAL SPEED CONTROL) 3/16" X 15/16"
6	AL151554	1	Lever	(WITH MECHANICAL SPEED CONTROL)
7	L150363	1	Bushing	-
8	R26871	1	Snap Ring	-
9	AL172026	1	Housing	(WITH ELECTRONIC SPEED CONTROL) (SUB FOR AL162511)
10	L150340	1	Housing	(WITH ELECTRONIC SPEED CONTROL)
11	L114645	1	Grip	(WITH ELECTRONIC SPEED CONTROL)
12	37M7361	3	Screw	(WITH ELECTRONIC SPEED CONTROL) M6 X 16
13	L150079	1	Bumper	(WITH ELECTRONIC SPEED CONTROL)
14	AL181277	1	Cover	SUB FOR AL176501 APPL
14	AL176501	1	Sensor	(WITH ELECTRONIC SPEED CONTROL) (SUB FOR AL156252)
15	AL175213	1	Sensor	(WITH ELECTRONIC SPEED CONTROL) SUB FOR AL156253
16	21M7474	1	Screw	(WITH ELECTRONIC SPEED CONTROL) M4 X 32
17	21M7477	1	Screw	(WITH ELECTRONIC SPEED CONTROL) M4 X 40
18	19M8825	3	Screw	(WITH ELECTRONIC SPEED CONTROL) M3 X 10
19	24M7029	3	Shim	(WITH ELECTRONIC SPEED CONTROL)
20	19M9036	3	Screw	(WITH ELECTRONIC SPEED CONTROL) M4 X 10
21	L150341	1	Housing	(WITH ELECTRONIC SPEED CONTROL)
22	99M7105	1	Plug	(WITH ELECTRONIC SPEED CONTROL)
23	L150718	1	Torsion Spring	-
24	14M7372	2	Nut	M4

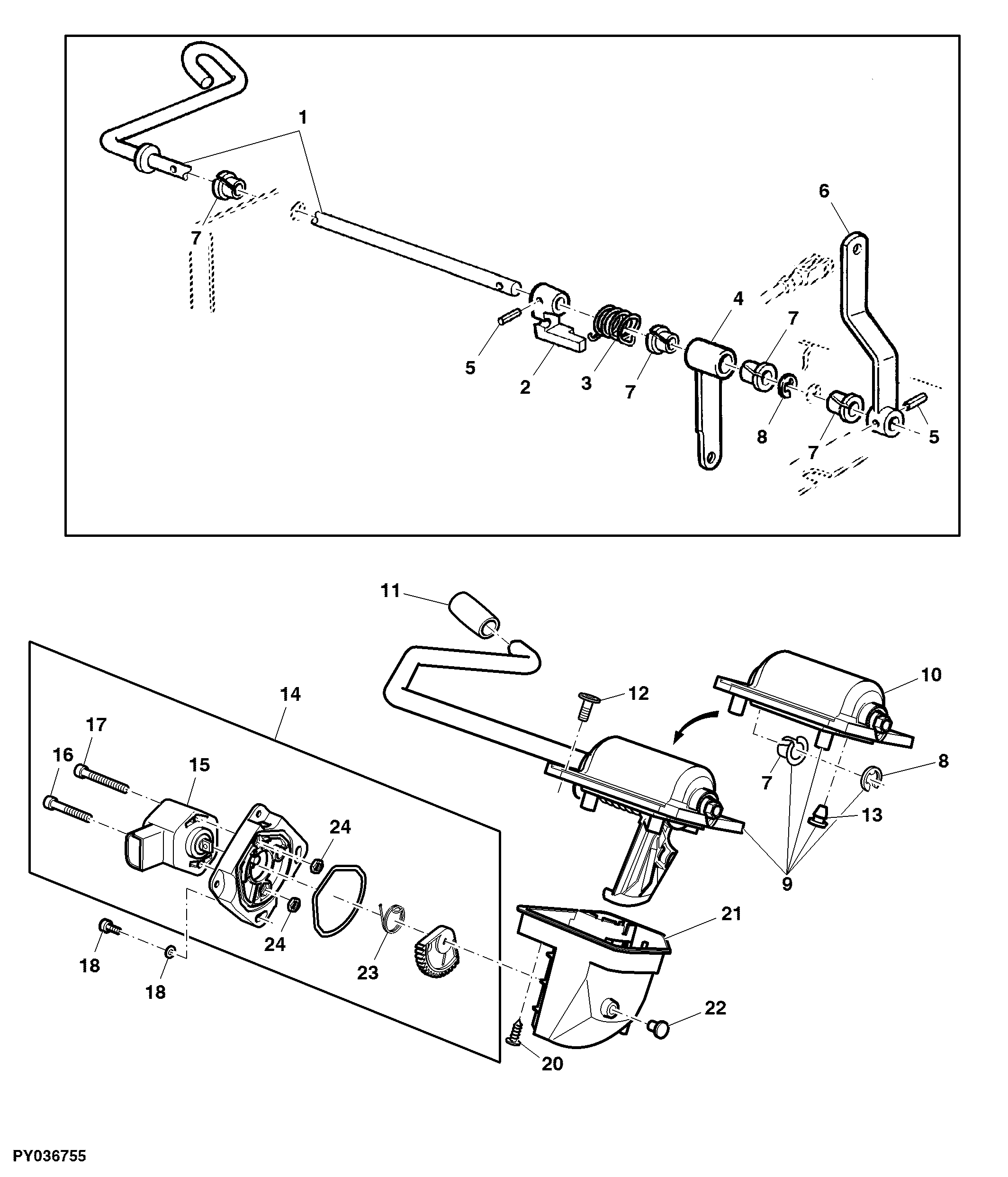

ACCEL. PEDAL (OPEN OPERATOR'S STATION / LOW PROFILE)
