Открытый узел

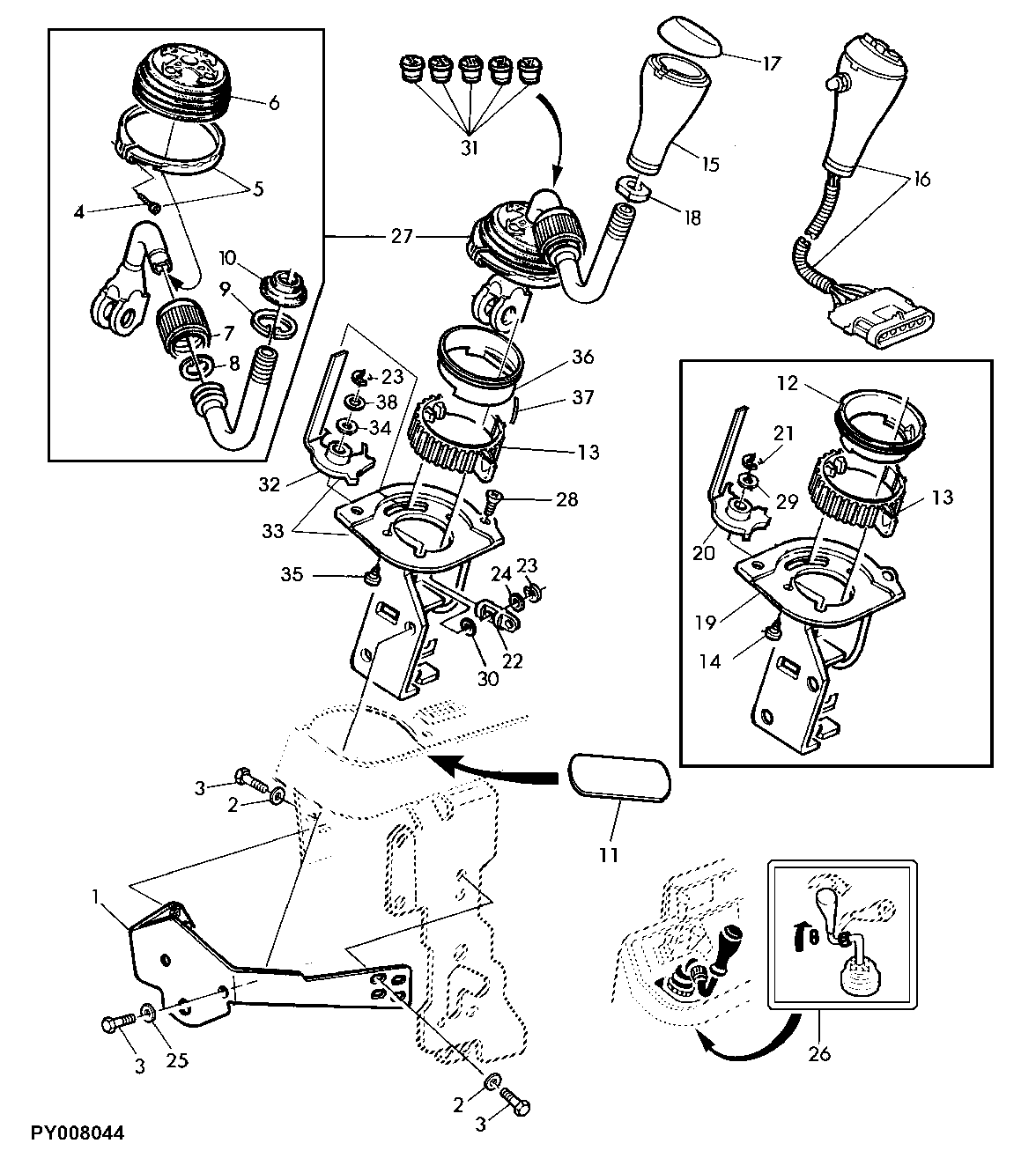

SWING-AWAY MULTI-FUNCTION LEVER FOR MCV (CONSOLE INTEGRATED)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL118136	1	Bracket	(SUB FOR AL113114)
2	24M7055	4	Washer	8.400 X 16 X 1.600 mm
3	19M7162	6	Cap Screw	M8 X 16
4	37M7196	1	Screw	-
5	AL111743	1	Clamp	-
6	L111831	1	Boot	-
7	L101351	1	Sleeve	-
8	40M7068	1	Snap Ring	-
9	40M7085	1	Snap Ring	(SUB FOR 40M7141)
10	L101553	1	Grommet	-
11	R81207	1	Cover	-
12	L101492	1	Guide	(WITH CONTROL VALVE REAR)
12	L101492	1	Guide	(WITH CONTROL VALVE R.H. / CENTER)
13	L111816	1	Ring	-
14	37M7033	3	Screw	(WITH CONTROL VALVE REAR)
14	37M7033	3	Screw	(WITH CONTROL VALVE REAR)
15	R131476	1	Grip	-
16	DC39967	1	Grip	-
17	R111697	1	Insert	-
18	R114922	1	Nut	-
19	AL119414	1	Bracket	(WITH CONTROL VALVE REAR) (SUB FOR AL81442)
19	AL119414	1	Bracket	(WITH CONTROL VALVE R.H. / CENTER) (SUB FOR AL81442)
20	AL81676	1	Cam	(WITH CONTROL VALVE REAR) (ORD AL119396, L101886)
20	AL81676	1	Cam	(WITH CONTROL VALVE R.H. / CENTER) (ORD AL119396, L101886)
21	40M7040	1	Snap Ring	(WITH CONTROL VALVE R.H. / CENTER)
21	40M7040	1	Snap Ring	(WITH CONTROL VALVE REAR)
22	AL81932	1	Pin Fastener	-
23	40M7059	1	Snap Ring	-
24	Z41659	1	Washer	-
25	24M7298	2	Washer	8.400 X 25 X 2 mm
26	L101835	1	Label	-
27	AL112164	1	Lever	-
28	21M7303	2	Screw	M5 X 20
29	24H1290	1	Washer	(WITH CONTROL VALVE REAR) 21/64" X 3/4" X 0.035"
29	24H1290	1	Washer	(WITH CONTROL VALVE R.H. / CENTER) 21/64" X 3/4" X 0.035"
30	24M7388	1	Washer	10 X 16 X 1 mm
31	RE52364	1	Plug	-
32	AL119396	1	Cam	(WITH CONTROL VALVE R.H. / CENTER)
32	AL119396	1	Cam	(WITH CONTROL VALVE REAR)
33	AL119413	1	Bracket	(WITH CONTROL VALVE REAR) INCL KEY 23, 34, 38
33	AL119413	1	Bracket	(WITH CONTROL VALVE R.H. / CENTER) INCL KEY 23, 34, 38
34	L116294	1	Washer	(WITH CONTROL VALVE REAR)
34	L116294	1	Washer	(WITH CONTROL VALVE R.H. / CENTER)
35	37M7222	3	Screw	(WITH CONTROL VALVE REAR)
35	37M7222	3	Screw	(WITH CONTROL VALVE R.H. / CENTER)
36	L116271	1	Guide	(WITH CONTROL VALVE REAR)
36	L116271	1	Guide	(WITH CONTROL VALVE R.H. / CENTER)
37	L116270	1	Gusset	(WITH CONTROL VALVE REAR)
37	L116270	1	Gusset	(WITH CONTROL VALVE R.H. / CENTER)
38	12M7117	1	Washer	10.200 X 20 X 1.100 mm
..	AL150474	1	Control	(WITH POWRQUAD PLUS TRANSMISSIONS) FI (ORD AL169862)

SWING-AWAY MULTI-FUNCTION LEVER FOR MCV (CONSOLE INTEGRATED)

Нет текстового описания
