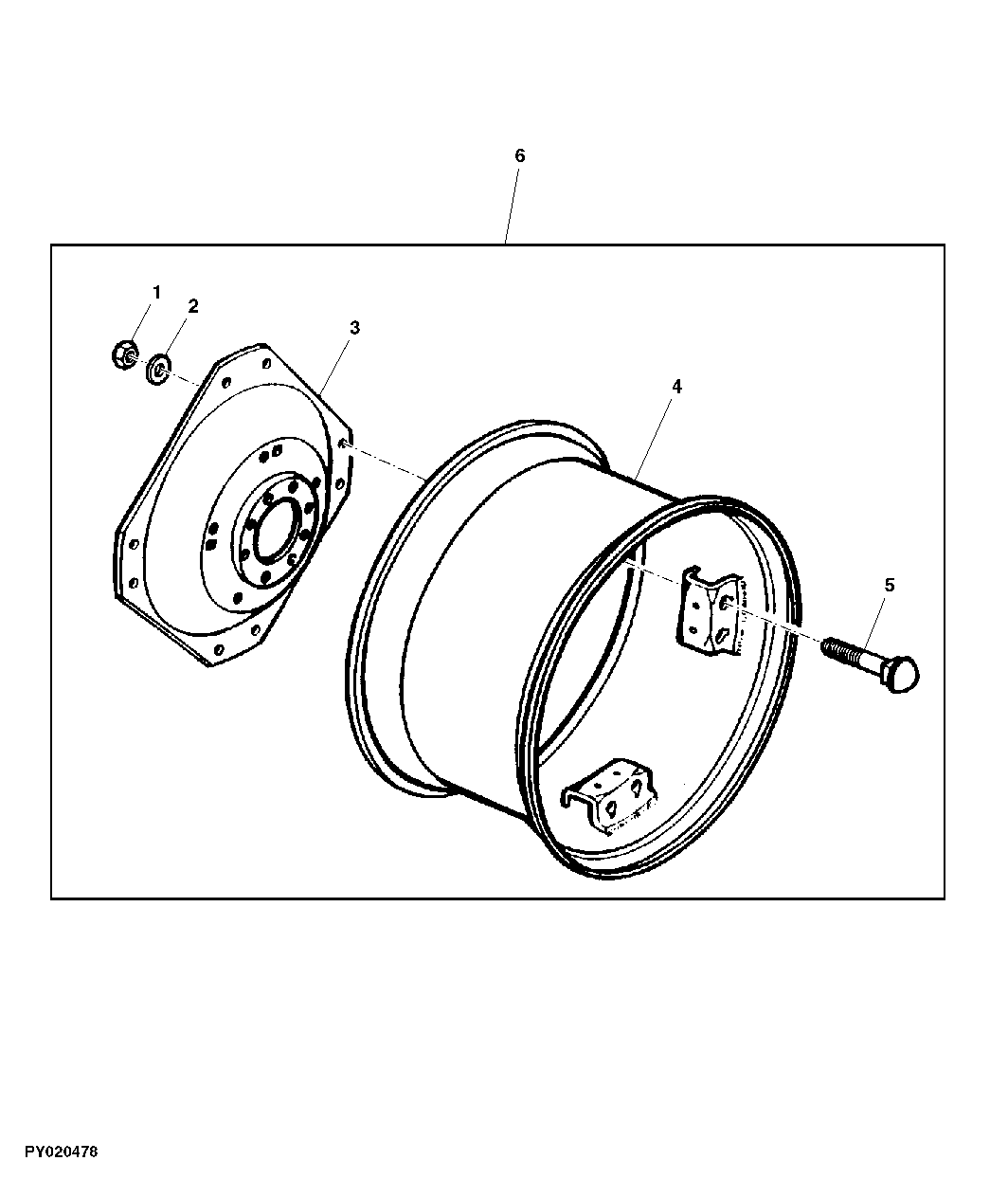

STEEL DISK REAR WHEELS, ADJUSTABLE WHEEL-TRACK

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7276	16	Nut	M16
2	L115344	16	Washer	ORDER L208869
2	L208869	16	Washer	-
3	L154511	2	Wheel Center	28", (FOR AL175812); (SUB FOR L110933)
3	L155234	2	Wheel Center	(FOR HEAVY-DUTY CONDITIONS) 28", (FOR AL175812); (SUB FOR L115067)
3	L154510	2	Wheel Center	32", (FOR AL175811); (SUB FOR L110530)
3	L154508	2	Wheel Center	38", (FOR AL110799, AL110773, AL175810); (SUB FOR L110352)
4	AL110799	2	Rim	(FOR TIRE SIZE REFER TO TIRE MANUAL OF MANUFACTURER) (WITH 2-POST ROLL GARD STANDARD VERSION) DW12 X 38, MARKED GKN 01118426
4	AL175810	2	Rim	(FOR TIRE SIZE REFER TO TIRE MANUAL OF MANUFACTURER) DW15L X 38, MARKED GKN 01118365; (SUB FOR AL110555)
4	AL110773	2	Rim	(FOR TIRE SIZE REFER TO TIRE MANUAL OF MANUFACTURER) (NO LONGER AVAILABLE) DW14L X 38, MARKED GKN 01118388, (ORDER AL175810)
4	AL175811	2	Rim	(FOR TIRE SIZE REFER TO TIRE MANUAL OF MANUFACTURER) DW15L X 34, MARKED GKN 01118368; (SUB FOR AL110764)
4	AL175812	2	Rim	(FOR TIRE SIZE REFER TO TIRE MANUAL OF MANUFACTURER) (WITH 2-POST ROLL GARD LOW PROFILE) DW15L X 30, MARKED GKN 01118385; (SUB FOR AL110779)
5	L41560	16	Bolt	M16 X 74 (10.9)
6	AL112851	2	Wheel	(FOR TIRE SIZE REFER TO TIRE MANUAL OF MANUFACTURER) DW15L X 30
6	AL117551	2	Wheel	(FOR TIRE SIZE REFER TO TIRE MANUAL OF MANUFACTURER) (FOR HEAVY-DUTY CONDITIONS) DW15L X 30
6	AL112854	2	Wheel	(FOR TIRE SIZE REFER TO TIRE MANUAL OF MANUFACTURER) DW15L X 34
6	AL112858	2	Wheel	(FOR TIRE SIZE REFER TO TIRE MANUAL OF MANUFACTURER) DW12 X 38
6	AL112859	2	Wheel	(FOR TIRE SIZE REFER TO TIRE MANUAL OF MANUFACTURER) DW14L X 38
6	AL112860	2	Wheel	(FOR TIRE SIZE REFER TO TIRE MANUAL OF MANUFACTURER) DW15L X 38
