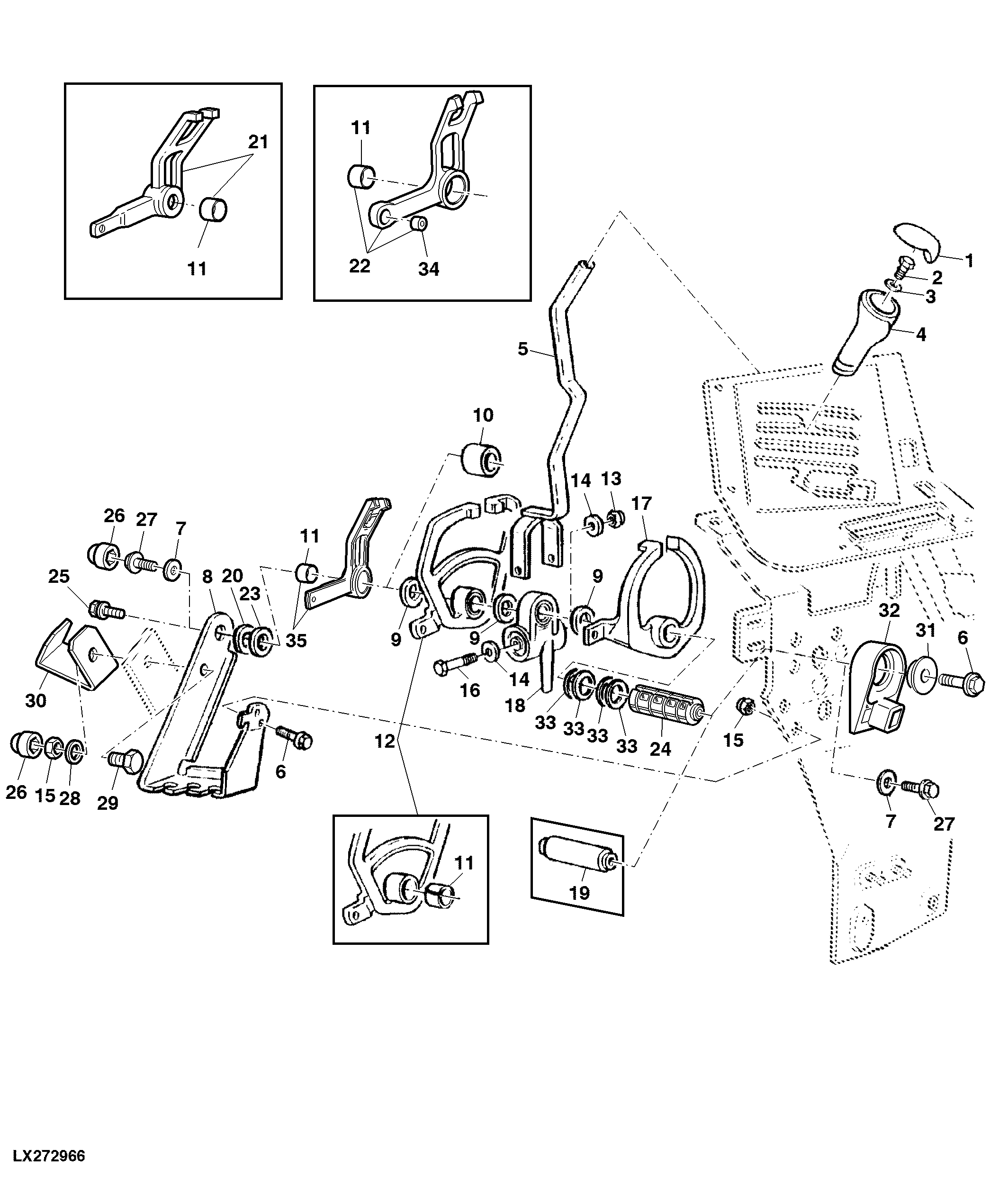

RANGE SHIFTING (POWRQUAD WITH REVERSER CONTROL AT SHIFT CONSOLE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L113018	1	Insert	-
2	19M7560	1	Cap Screw	M6 X 16
3	24M7139	1	Washer	6.400 X 18 X 1.600 mm
4	L77805	1	Knob	-
5	AL110859	1	Shifter Rod	-
6	19M7865	1	Screw	M8 X 16
7	24M7024	2	Washer	9 X 28 X 3 mm
8	L112053	1	Support	-
9	L77963	3	Washer	TK = 2.0 mm (5/64")
10	L101929	1	Bushing	(WITH 16-SPEED TRANSMISSION)
11	R198159	1	Bushing	SUB FOR L77978
12	AL117583	1	Quadrant	(SUB FOR AL110850)
13	14M7166	1	Lock Nut	M8
14	L79335	2	Washer	-
15	14M7416	3	Flange Nut	M8
16	19M8403	1	Cap Screw	M8 X 75, (10.9)
17	AL117582	1	Quadrant	INCLUDES L77978 (SUB FOR AL110849)
18	AL110860	1	Support	INCLUDES L77978
19	L110566	1	Pin	(ORD L113994)
20	L111987	1	Washer	TK = 1.5 mm (1/16")
20	L77963	1	Washer	TK = 2.0 mm (5/64")
20	L111988	1	Washer	TK = 1.0 mm (3/64")
21	AL117584	1	Quadrant	(WITH 20 OR 24-SPEED TRANSMISSION) (ORD AL200297, L152504, L152925, 40M7041) (SUB FOR AL110851)
22	AL153630	1	Quadrant	(WITH 20 OR 24-SPEED TRANSMISSION) (ORD AL200297)
23	L113225	1	Washer	TK = 6.0 mm (15/64")
24	L113994	1	Pin Fastener	(SUB FOR L110566)
25	AL119584	1	Screw	(USE IN CONJUNCTION WITH GEAR TRANSMISSION THAT HAS GREASE FITTING AND PIN L113994) (SUB FOR AL117787)
26	L32394	2	Cap	-
27	M78508	2	Cap Screw	M8 X 20
28	24M7055	1	Washer	8.400 X 16 X 1.600 mm
29	03M7184	1	Bolt	M8 X 20
30	L116033	1	Support	(2-POST ROLL GARD)
31	L116263	1	Washer	-
32	L116262	1	Bushing	-
33	L112469	4	Shim	-
34	L153824	1	Isolator	(SUB FOR L152503)
35	AL200297	1	Quadrant	(WITH 20 OR 24-SPEED TRANSMISSION)
