RANGE SHIFT COMPONENTS (POWRQUAD PLUS OR AUTOQUAD)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL153499	1	Shifter	(SUB FOR AL116407, AL118131)
2	L113225	1	Washer	TK = 6.0 mm (15/64")
3	L112469	4	Shim	-
4	AL112912	1	Bracket	-
5	19M7378	1	Cap Screw	M8 X 45
6	19M7865	4	Screw	M8 X 16
7	24M7024	1	Washer	9 X 28 X 3 mm
8	AL110861	1	Support	-
9	L77963	1	Washer	TK = 2.0 mm (5/64")
10	AL117584	1	Quadrant	(ORD AL200297, L152504, L152925, 40M7041) (SUB FOR AL110851)
11	AL153630	1	Quadrant	(ORD AL200297)
12	AL117583	1	Quadrant	(SUB FOR AL110850)
13	14M7166	2	Lock Nut	M8
14	L79335	2	Washer	-
15	14M7416	2	Flange Nut	M8
16	19M8403	1	Cap Screw	M8 X 75, (10.9)
17	AL117582	1	Quadrant	INCLUDES L77978 (SUB FOR AL110849)
18	AL110860	1	Support	INCLUDES L77978
19	L113994	1	Pin Fastener	(SUB FOR L110566)
20	L111988	1	Washer	TK = 1.0 mm (3/64")
20	L111987	1	Washer	TK = 1.5 mm (1/16")
20	L77963	1	Washer	TK=2.0 mm (5/64")
21	L116303	1	Bushing	(SUB FOR L110567,L115163)
22	AL117581	1	Quadrant	NLA, ORDER AL206877INCLUDES L77978 (SUB FOR AL110848)
22	AL206877	1	Quadrant	INCLUDES L204982
23	L102451	1	Extension Spring	-
24	24M7055	1	Washer	8.400 X 16 X 1.600 mm
25	AL117589	1	Quadrant	(FOR JAPAN AND ITALY ONLY) (ORD AL153948, L152504, L152925, 40M7041) (SUB FOR AL114965)
26	AL153948	1	Quadrant	(FOR JAPAN AND ITALY ONLY)
27	L175906	1	Switch	(SUB FOR L113722)
28	L32394	2	Cap	-
29	14M7273	1	Nut	M8
30	24M7055	1	Washer	8.400 X 16 X 1.600 mm
31	19M7139	1	Cap Screw	M8 X 20
32	L152316	1	Knob	AUTOQUAD (SUB FOR L115441)
32	L152316	1	Knob	POWRQUAD PLUS (ORD AL180675)
33	24M7298	1	Washer	8.400 X 25 X 2 mm
34	L204982	1	Bushing	FOR AL206877
34	R198159	1	Bushing	SUB FOR L77978
35	L153824	1	Isolator	(SUB FOR L152503)
36	AL115927	1	Shifter	(SINGLE-LEVER CONTROL, CONSOLE-INTEGRATED)
36	AL116408	1	Lever	-
36	AL118603	1	Shifter	ORDER AL180587
36	AL180587	1	Shifter	-
37	L112592	1	Knob	AUTOQUAD (ORD AL153498)
37	L112592	1	Knob	POWRQUAD PLUS (ORD AL180675)
38	L113720	3	Bolt	-
39	L53890	1	O-Ring	-
40	AL153498	1	Shifter	(SINGLE-LEVER CONTROL, CONSOLE-INTEGRATED) (SUB FOR AL113522, AL118130)
41	AL118593	1	Shifter	(SINGLE-LEVER CONTROL, CONSOLE-INTEGRATED) ORDER AL180587
42	AL200297	1	Quadrant	-

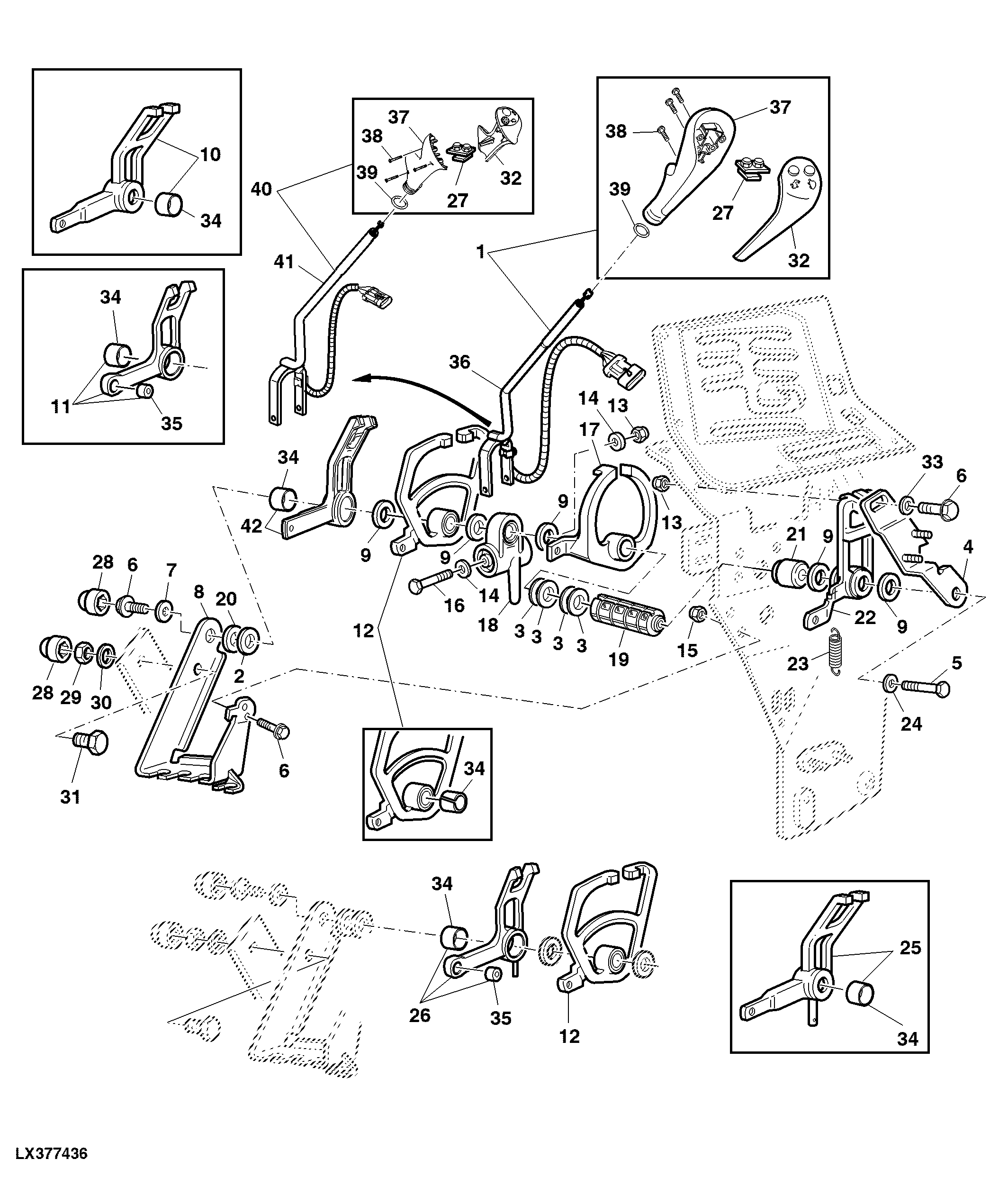

RANGE SHIFT COMPONENTS (POWRQUAD PLUS OR AUTOQUAD)
