Открытый узел

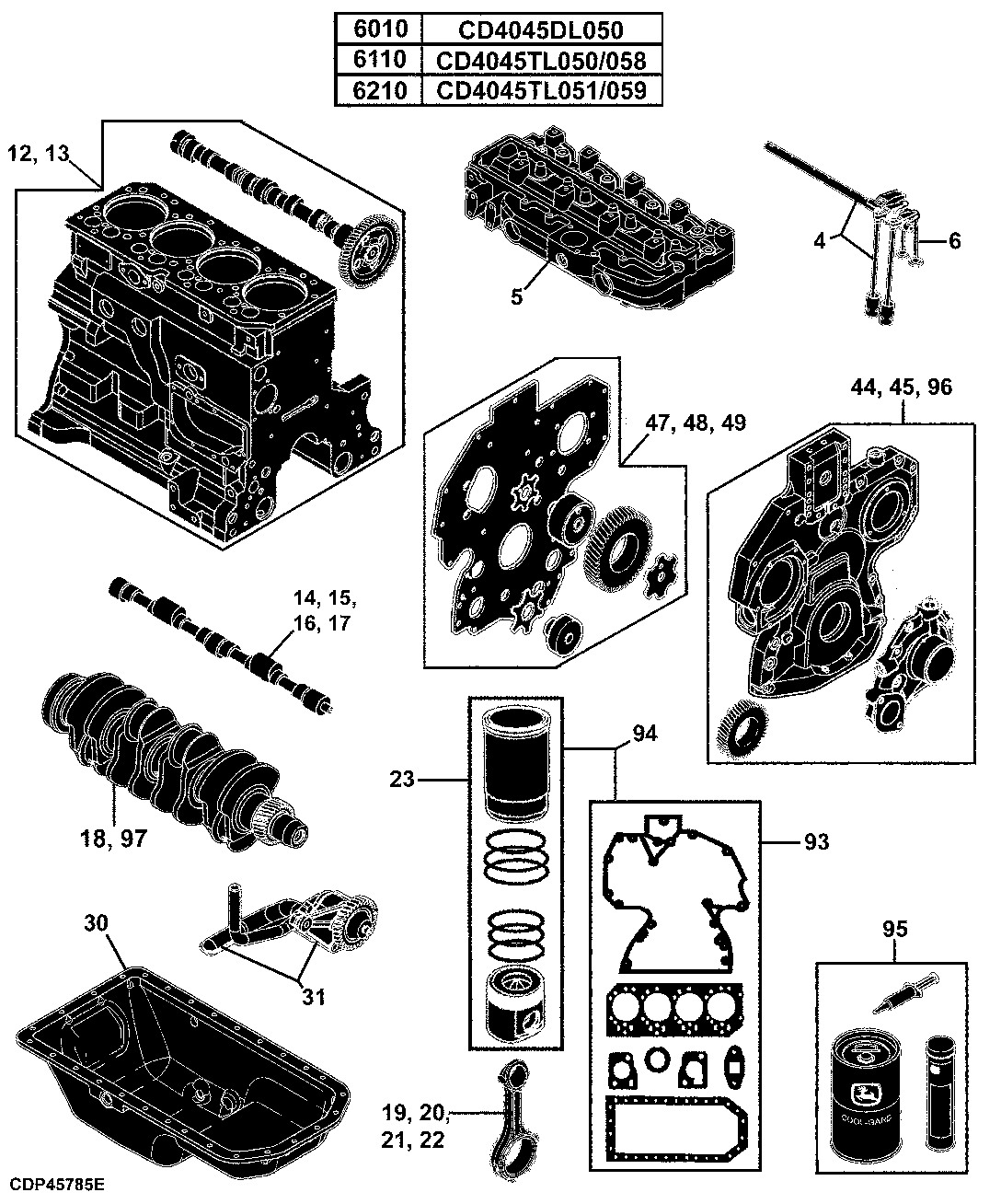

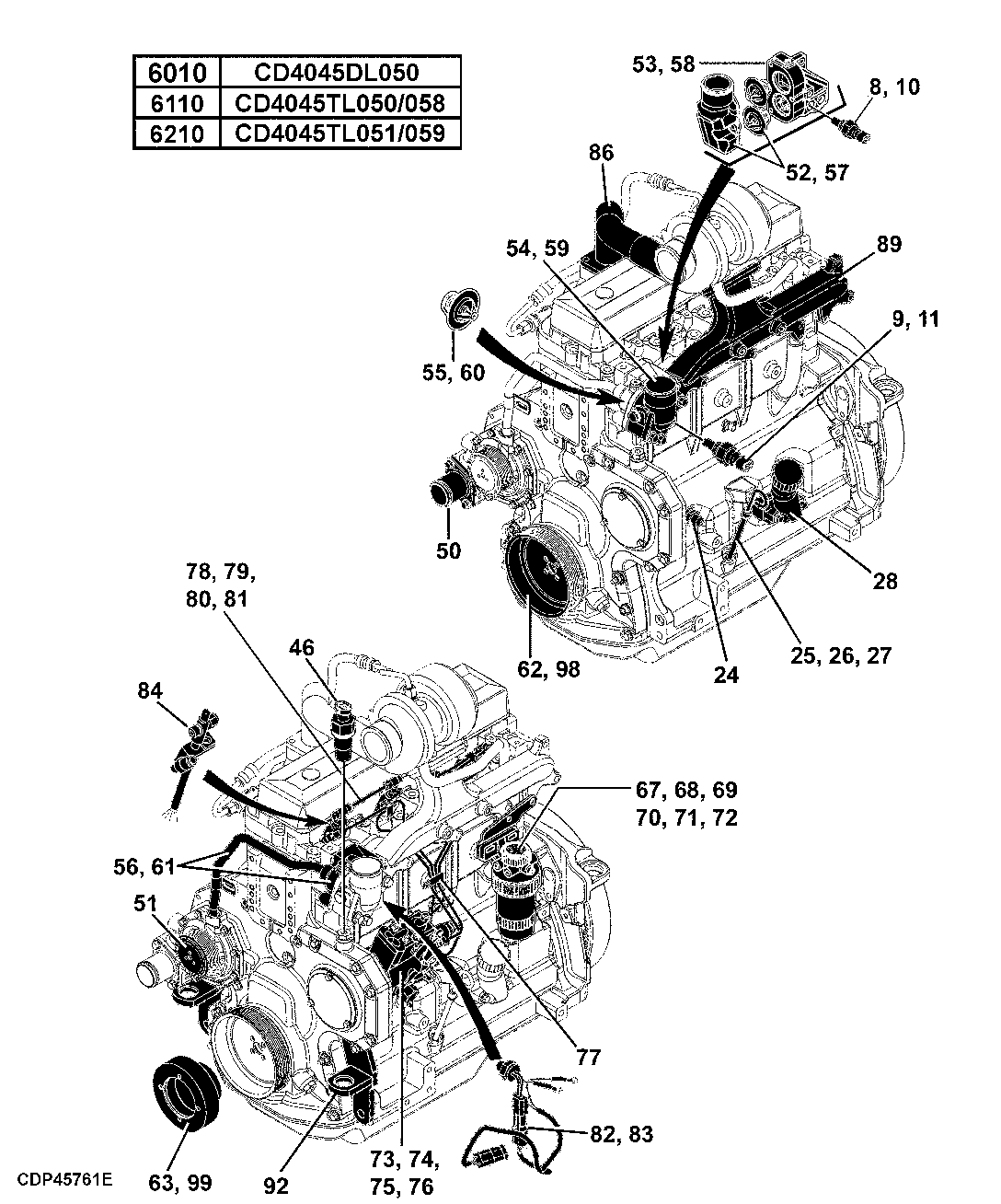

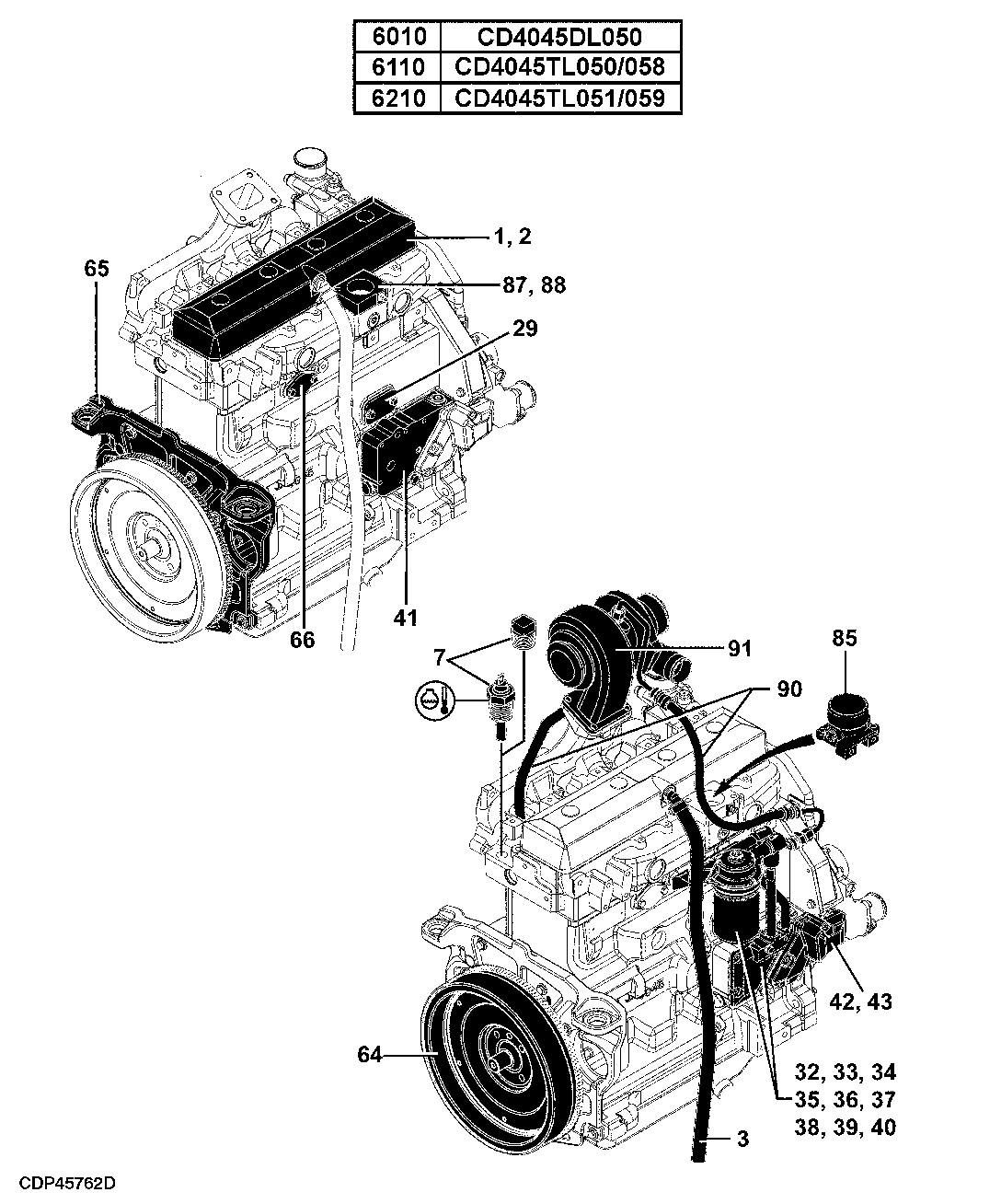

20 ENGINE, 6010 (4045DL050), 6110 (4045TL050/58), 6210 (4045TL051/59), ( -799 999)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	LIQUID GASKET, GREASE FOR CAMSHAFT BUSHING, COOLANT	-
-	-	1	SWITCH, OIL PRESSURE	-
-	-	1	SHORT BLOCK ASSEMBLY	-
-	-	1	ROCKER ARM / SHAFT / TAPPET / PUSH ROD	-
-	-	1	PULLEY ADAPTER FRONT PTO FOR CRANKSHAFT WITH TAPER NOSE	-
-	-	1	PISTON / LINER - KIT	-
-	-	1	OIL PUMP	-
-	-	1	OIL PAN	-
-	-	1	OIL FILTER, ADAPTER, OIL LINES	-
-	-	1	OIL FILTER / ADAPTER	-
-	-	1	OIL FILTER / ADAPTER	-
-	-	1	OIL FILLER NECK (LEFT HAND SIDE)	-
-	-	1	OIL COOLER	-
-	-	1	THERMOSTAT (SINGLE)	-
-	-	1	KIT, PRIMARY FUEL FILTER ( ACCESSORY )	-
-	-	1	KIT, PRIMARY FUEL FILTER ( ACCESSORY )	-
-	-	1	INTERMEDIATE HOUSING (OIL COOLER / WATER PUMP)(LATE DESIGN)	-
-	-	1	INTERMEDIATE HOUSING (OIL COOLER / WATER PUMP)(EARLY DESIGN)	-
-	-	1	INTAKE MANIFOLD	-
-	-	1	INTAKE MANIFOLD	-
-	-	1	INJECTION NOZZLE	-
-	-	1	IDLE GEAR (UPPER) , CONVERSION KIT	-
-	-	1	IDLE GEAR (UPPER)	-
-	-	1	FUEL LINES	-
-	-	1	FUEL LINE (LEAK OFF)	-
-	-	1	FUEL LINE (LEAK OFF)	-
-	-	1	TIMING GEAR COVER, WATER PUMP (CAST IRON, WITH INSERT), LOWER IDLE GEAR	-
-	-	1	WATER TEMPERATURE SENSOR (WITH 2-POST ROLL GARD) - PLUG	-
-	-	1	WATER TEMPERATURE SENSOR	-
-	-	1	WATER TEMPERATURE SENSOR	-
-	-	1	WATER TEMPERATURE SENSOR	-
-	-	1	WATER TEMPERATURE SENSOR	-
-	-	1	WATER PUMP PULLEY	-
-	-	1	WATER PUMP INTAKE	-
-	-	1	VALVE COVER	-
-	-	1	VALVE COVER	-
-	-	1	VALVE / VALVE SEAT / SPRING / ROTATOR	-
-	-	1	TURBOCHARGER OIL LINES	-
-	-	1	TURBOCHARGER	-
-	-	1	FUEL LINE (LEAK OFF)	-
-	-	1	TIMING GEAR COVER, WATER PUMP (CAST IRON, WITH INSERT), LOWER IDLE GEAR	-
-	-	1	TIMING GEAR COVER, WATER PUMP (ALUMINIUM, W/O INSERT), LOWER IDLE GEAR	-
-	-	1	THERMOSTAT HOUSING / BY PASS TUBE TO WATER PUMP (SINGLE THERMOSTAT)	-
-	-	1	THERMOSTAT HOUSING / BY PASS TUBE TO WATER PUMP (SINGLE THERMOSTAT)	-
-	-	1	THERMOSTAT HOUSING / BY PASS TUBE TO WATER PUMP (DOUBLE THERMOSTAT)	-
-	-	1	THERMOSTAT HOUSING / BY PASS TUBE TO WATER PUMP (DOUBLE THERMOSTAT)	-
-	-	1	THERMOSTAT COVER (SINGLE THERMOSTAT)	-
-	-	1	THERMOSTAT COVER (SINGLE THERMOSTAT)	-
-	-	1	THERMOSTAT / COVER (DOUBLE THERMOSTAT)	-
-	-	1	THERMOSTAT / COVER (DOUBLE THERMOSTAT)	-
-	-	1	THERMOSTAT (SINGLE)	-
-	-	1	BALANCER SHAFT (LATE DESIGN)	-
-	-	1	CRANKSHAFT PULLEY FOR CRANKSHAFT WITH TAPER NOSE	-
-	-	1	CRANKSHAFT PULLEY FOR CRANKSHAFT WITH STRAIGHT NOSE	-
-	-	1	COVER, WITHOUT FUEL PUMP	-
-	-	1	COVER WITHOUT OIL FILLER NECK AND OIL DIPSTICK (RIGHT HAND SIDE)	-
-	-	1	CONVERSION KIT, OIL FILTER ADAPTER / OIL LINES	-
-	-	1	CONVERSION KIT, OIL FILTER ADAPTER / OIL LINES	-
-	-	1	CONNECTING ROD / BEARINGS	-
-	-	1	CONNECTING ROD / BEARINGS	-
-	-	1	CONNECTING ROD / BEARINGS	-
-	-	1	CONNECTING ROD / BEARINGS	-
-	-	1	COLD-WEATHER STARTING KIT	-
-	-	1	BREATHER	-
-	-	1	CRANKSHAFT WITH STRAIGHT NOSE/ BEARINGS	-
-	-	1	BALANCER SHAFT (LATE DESIGN)	-
-	-	1	BALANCER SHAFT (EARLY DESIGN)	-
-	-	1	BALANCER SHAFT (EARLY DESIGN)	-
-	-	1	AIR HEATER (LATE DESIGN)	-
-	-	1	AIR HEATER (EARLY DESIGN)	-
-	-	1	ADAPTER FRONT PTO FOR CRANKSHAFT WITH STRAIGHT NOSE	-
-	-	1	ADAPTER / OIL LINES	-
-	-	1	ADAPTER / OIL LINES	-
-	-	1	ADAPTER / OIL LINES	-
-	-	1	ADAPTER / OIL LINES	-
-	-	1	9901 Complete Block Assembly	-
-	-	1	FINAL FUEL FILTER	-
-	-	1	FUEL LINE (LEAK OFF)	-
-	-	1	FUEL INJECTION PUMP, SOLENOID (ENERGIZED TO RUN)	-
-	-	1	FUEL INJECTION PUMP WIRING HARNESS AND SENSOR	-
-	-	1	FUEL INJECTION PUMP	-
-	-	1	FUEL INJECTION PUMP	-
-	-	1	FUEL INJECTION PUMP	-
-	-	1	FUEL FILTER / FUEL LINE	-
-	-	1	FUEL FILTER / FUEL LINE	-
-	-	1	FUEL FILTER / FUEL LINE	-
-	-	1	FRONT PLATE AND UPPER IDLE GEAR	-
-	-	1	FLYWHEEL HOUSING	-
-	-	1	FLYWHEEL	-
-	-	1	9901 Complete Block Assembly	-
-	-	1	EXHAUST MANIFOLD	-
-	-	1	ENGINE SPEED SENSOR	-
-	-	1	ENGINE OVERHAUL KIT	-
-	-	1	ENGINE GASKET SET	-
-	-	1	ENGINE FRONT BRACKETS	-
-	-	1	DIPSTICK / GUIDE (LEFT HAND SIDE)	-
-	-	1	DIPSTICK / GUIDE (LEFT HAND SIDE)	-
-	-	1	DIPSTICK / GUIDE (LEFT HAND SIDE)	-
-	-	1	CYLINDER HEAD	-
-	-	1	CYLINDER BLOCK	-
-	-	1	CRANKSHAFT WITH TAPER NOSE / BEARINGS	-

20 ENGINE, 6010 (4045DL050), 6110 (4045TL050/58), 6210 (4045TL051/59), ( -799 999)
