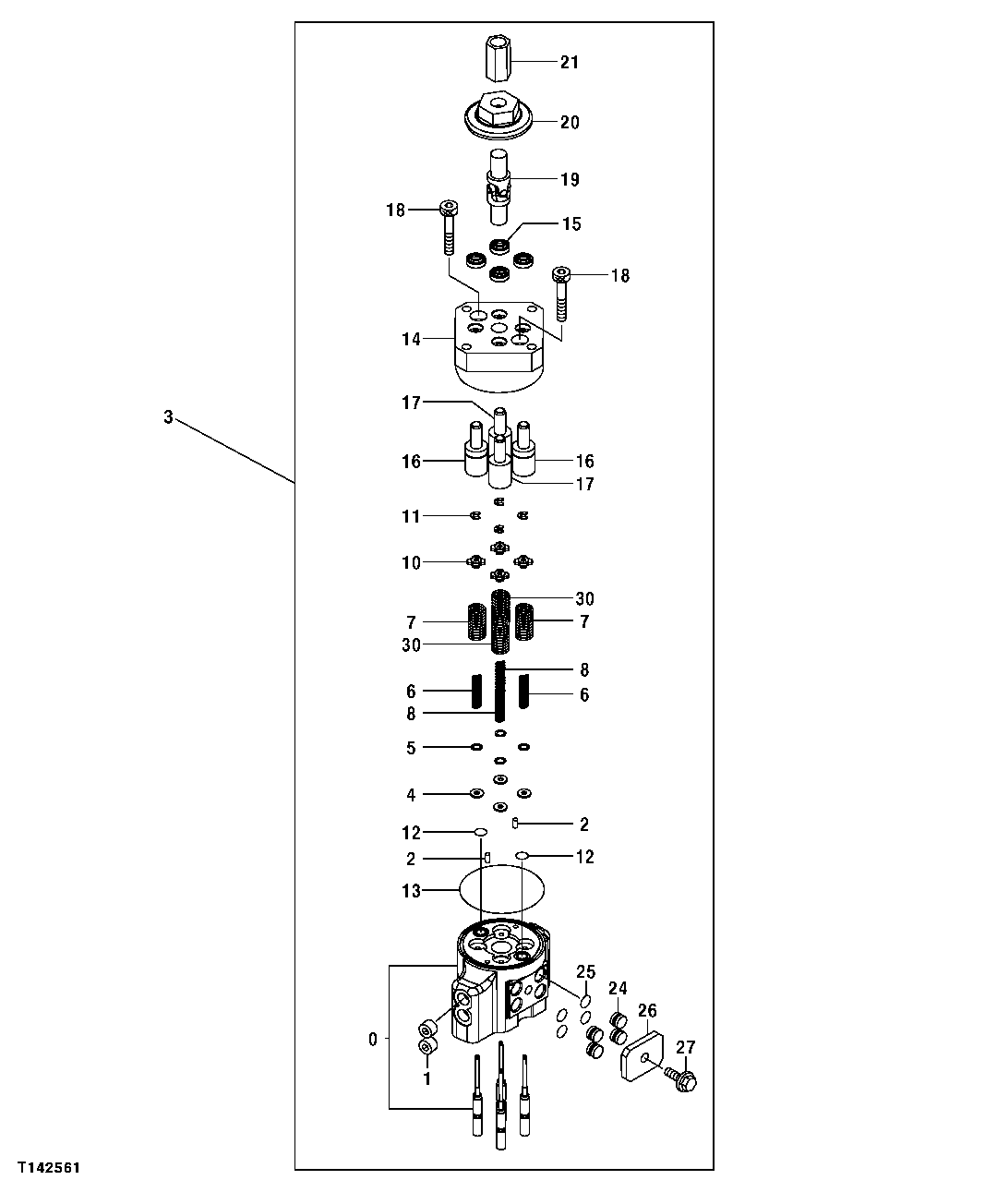

PILOT CONTROLLER VALVE COMPONENTS (DIG AND SWING) (SN -951031)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	-	1	Part 1	(TH8081319 NLA)
1	942011	2	Fitting Plug	(SUB FOR 94-2011)
2	J400408	2	Pin	-
3	9239583	1	Hydr./Pilot Control Valve	(SUB FOR 9195304 ) (SUB 9239583 ) (ALSO ORDER (3) 19M7139, (3) 24M7055 AND 4609956)
4	4410898	4	Spacer	-
5	4173208	12	Shim	-
6	4425414	2	Spring	-
7	4421771	2	Spring	-
8	4429120	2	Spring	-
10	4429119	4	Guide	-
11	4437333	4	Snap Ring	-
12	4431914	2	O-Ring	-
13	4431915	1	O-Ring	-
14	-	1	Part 14	(2044350 NLA), Manifold Has One Punch Mark On Top Face, (SUB 9234284, (4) 4477852, (2) 9759158 AND (2) 9759157)
14	9234284	1	Manifold	Manifold Has Two Punch Marks On Top Face, (SUB FOR 2044350 ) (ALSO ORDER (2) 9759158, (2) 9759157 AND (4) 4477852)
15	4447050	4	Seal	(USE WITH 2044350 ) (SUB 9234284, (4) 4477852, (2) 9759158 AND (2) 9759157)
15	-	4	Part 17	(4477852 NLA), (SUB FOR 4447050 ) (ALSO ORDER 9234284, (2) 9759158 AND (2) 9759157 ) (USE WITH 9234284)
16	-	2	Part 18	(9754825 NLA), (USE WITH 2044350 ) (SUB 9234284, (4) 4477852, (2) 9759158 AND (2) 9759157)
16	9759157	2	Piston	(SUB FOR 9754825 ) (ALSO ORDER (4) 4477852, 9234284 AND (2) 9759158 ) (USE WITH 9234284)
17	-	2	Part 20	(9754826 NLA), (USE WITH 2044350 ) (SUB 9234284, (4) 4477852, (2) 9759158 AND (2) 9759157)
17	9759158	2	Piston	(SUB FOR 9754826 ) (ALSO ORDER (4) 4477852, (2) 9759158 AND 9234284 ) (USE WITH 9234284)
18	19M8923	2	Screw	M8 X 45, (SUB FOR J780845)
19	4335060	1	Universal Joint	-
20	4639115	1	Cam	(SUB FOR 4437106)
21	4182067	1	Jointer	-
24	4442323	4	Pipe Plug	-
25	CH11560	4	Packing	-
26	4442339	1	Plate	-
27	19M7932	1	Cap Screw	M8 X 16
30	4446960	2	Spring	-

PILOT CONTROLLER VALVE COMPONENTS (DIG AND SWING) (SN -951031)
