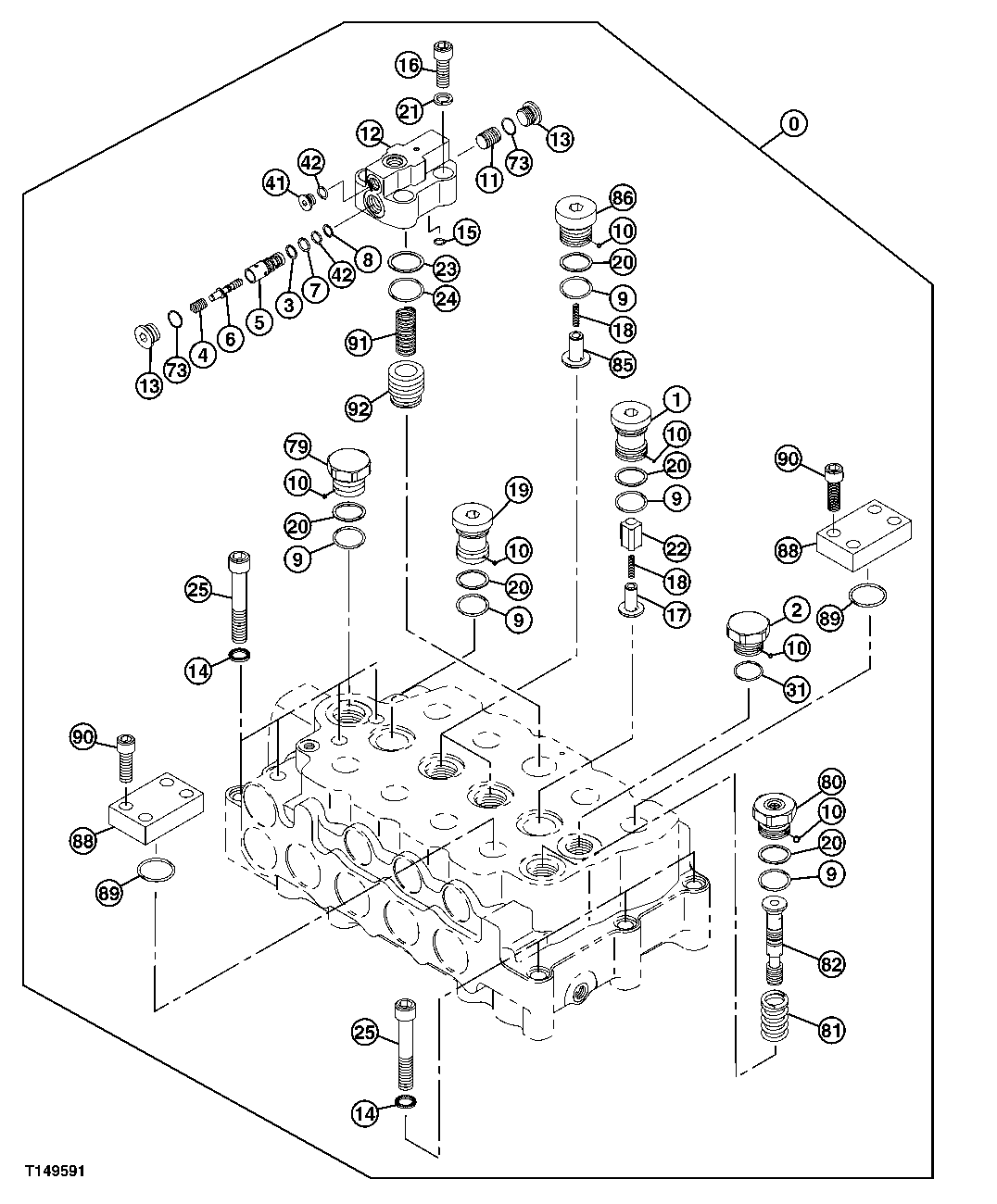

CONTROL VALVE (4 SPOOL SIDE SECTION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4444992	1	Hyd Actuated Control Valve	Additional Components Listed On Previous and Following Pages
1	0622850	1	Cap	(SUB FOR AT202034)
2	0818102	1	Cap	(SUB FOR TH0818102)
3	4040813	1	Back-Up Ring	(SUB FOR TH110449)
4	0622863	1	Spring	(SUB FOR AT202047)
5	0622866	1	Sleeve	(SUB FOR AT202050)
6	0622864	1	Poppet	(SUB FOR AT202048)
7	4140470	1	O-Ring	(SUB FOR TH109089)
8	4092265	1	Back-Up Ring	(SUB FOR TH102598)
9	4088425	6	O-Ring	(SUB FOR AT202080)
10	0189803	7	Ball	(SUB FOR AT203704)
11	0622867	1	Piston	(SUB FOR AT202051)
12	0809802	1	Cover	(SUB FOR TH0809802)
13	0622822	2	Cap	(SUB FOR AT202006)
14	0189908	7	Washer	(SUB FOR AT217052)
15	CH17167	1	O-Ring	-
16	M341440	4	Screw	(SUB FOR AT201961)
17	0622829	1	Check Valve	-
18	0622827	3	Spring	(SUB FOR AT202011)
19	0622825	1	Cap	(SUB FOR AT202009)
20	0223104	6	Back-Up Ring	(SUB FOR AT217055)
21	0622865	4	Washer	(SUB FOR AT202049)
22	0622848	1	Check Valve	-
23	4138942	1	Back-Up Ring	(SUB FOR AT217083)
24	AT264324	1	O-Ring	(SUB FOR TH100044)
25	19M8564	7	Screw	M16 X 110
31	0624703	1	O-Ring	(SUB FOR TH0624703)
41	0622810	1	Cap	(SUB FOR AT201994)
42	M800650	2	Packing	-
73	4506418	2	O-Ring	(SUB FOR U46489)
79	0622870	1	Cap	(SUB FOR AT202054)
80	0622846	1	Cap	(SUB FOR AT202030)
81	0622845	1	Spring	(SUB FOR AT202029)
82	0818101	1	Spool Valve	(SUB FOR TH0818101)
85	0705401	2	Check Valve	-
86	0703701	2	Fitting Plug	(SUB FOR AT217064)
88	0622858	2	Flange	(SUB FOR AT202042)
89	0197011	2	O-Ring	(SUB FOR AT217054)
90	19M8734	8	Screw	M14 X 45
91	0622856	1	Spring	(SUB FOR AT202040)
92	0622855	1	Poppet	(SUB FOR AT202039)

CONTROL VALVE (4 SPOOL SIDE SECTION)

Нет текстового описания
