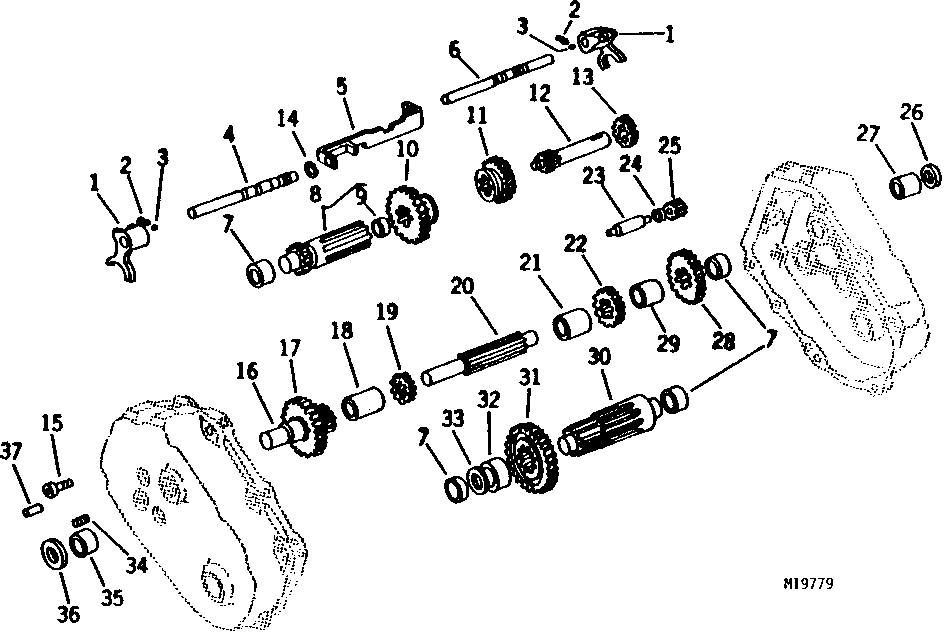

TRANSAXLE GEARS, SHIFTER RODS AND FORKS [B17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M11021	2	FORK	-
2	M40350	2	COMPRESSION SPRING	-
3	M40351	2	BALL	-
4	M41038	1	SHIFTER ROD	(1ST AND REVERSE SPEEDS)
5	AM30640	1	STOP	-
6	M41037	1	SHIFTER ROD	(2ND AND 3RD SPEEDS)
7	JD9807	2	NEEDLE BEARING	-
8	AM30293	1	SHAFT	-
9	JD8833	1	NEEDLE BEARING	-
10	M40358	1	GEAR	(1ST AND REVERSE SPEEDS)
11	M40359	1	GEAR	(2ND AND 3RD SPEEDS)
12	M41750	1	SHAFT	-
13	M40361	1	GEAR	-
14	R32507	1	Snap Ring	-
15	19H2924	11	Screw	1/4" X 3/4"
16	AM30245	1	SHAFT	-
17	M41042	1	SPUR GEAR	-
18	M40681	1	BUSHING	(SUB AM30245) (44.45 MM) 1-3/4" LONG
19	M40365	1	GEAR	-
20	M40366	1	SHAFT	-
21	M40367	1	BUSHING	(30.16 MM) 1-3/16" LONG (NO LONGER AVAILABLE)
22	M40368	1	GEAR	-
23	M40371	1	PIN FASTENER	-
24	M40372	1	BUSHING	(11.11 MM) 7/16" LONG (NO LONGER AVAILABLE)
25	M40373	1	IDLER	-
26	M40374	1	SEAL	(31.75 MM) 1-1/4" O.D.
27	JD9808	1	NEEDLE BEARING	-
28	M40370	1	GEAR	-
29	M40369	1	BUSHING	(19.05 MM) 3/4" LONG
30	M40375	1	SHAFT	-
31	M41044	1	SPUR GEAR	-
32	M40377	1	BUSHING	(15.88 MM) 5/8" LONG
33	M40378	1	Washer	-
34	15H623	2	Pipe Plug	3/8"
35	JD8813	1	Needle Bearing	-
36	M40676	3	SEAL	(34.93 MM) 1-3/8" O.D.
37	M41028	2	PIN	-

TRANSAXLE GEARS, SHIFTER RODS AND FORKS [B17]
