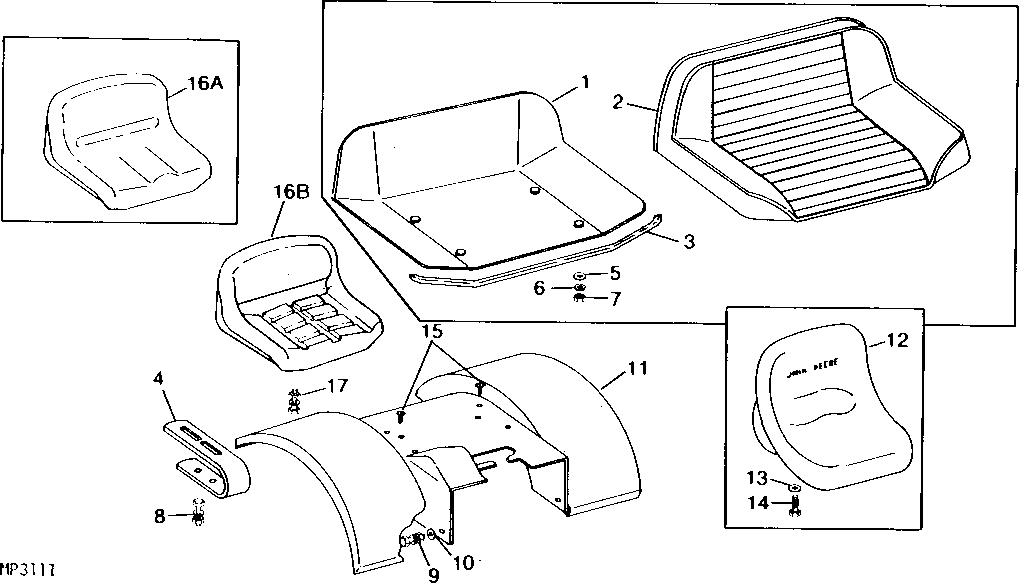

SEAT AND FENDER-DECK (SERIAL NO. 20,001- ) [A09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(ORDER AM100163) (SUB FOR AM30763, AM33245 AND AM37480)
2	-	1	Part 2	(ORDER AM100163) (SUB FOR AM30766, AM33245 AND AM37480)
3	M44391	1	ISOLATOR	(3.048 M) 10 FT.
4	M41544	2	SPRING	-
5	24H1305	4	Washer	13/32" X 13/16" X 0.065"
6	12H304	4	Lock Washer	3/8"
7	14H1076	4	Nut	3/8"
8	19H1731	4	Cap Screw	3/8" X 1"
8	14H1076	4	Nut	3/8"
8	12H304	4	Lock Washer	3/8"
9	12H304	2	Lock Washer	3/8"
9	14H1076	2	Nut	3/8"
9	19H1936	2	Cap Screw	3/8" X 3/4"
10	24H1308	2	Washer	13/32" X 1" X 0.134"
11	AM31908	1	FENDER	(NO LONGER AVAILABLE)
12	AM34065	1	SEAT	(ORDER AM36845) (MOLDED TYPE) (EXTRA EQUIPMENT)
13	12H304	4	Lock Washer	3/8"
14	19H1936	4	Cap Screw	3/8" X 3/4"
15	37H108	2	SCREW	3/8" X 5/8"
17	19H1900	4	Cap Screw	5/16" X 3/4"
17	12H303	4	Lock Washer	5/16"
17	24M7207	4	Washer	8.400 X 24 X 2 MM
16A	-	1	Part 20	(ORDER AM100163) (SUB FOR AM33245, AM36866 AND AM37480)
16B	AM100163	1	Seat	-

SEAT AND FENDER-DECK (SERIAL NO. 20,001- ) [A09]
