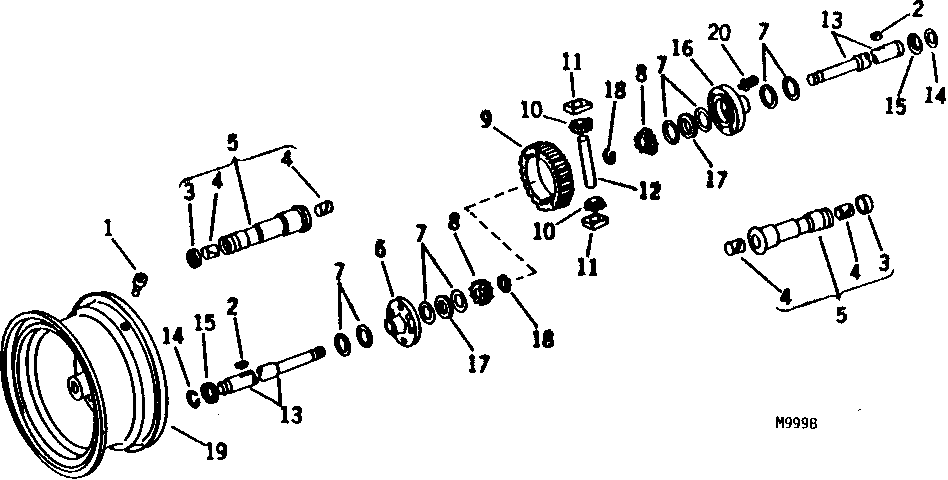

DIFFERENTIAL ASSEMBLY, REAR AXLES AND WHEELS [B18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AM30795	1	Tire Valve Stem	(SUB FOR AM30346)
2	26H26	2	Shaft Key	1/4" X 1-1/8"
3	M40676	1	SEAL	(34.93 MM) 1-3/8" O.D.
4	M41740	4	BUSHING	-
5	AM31926	2	HOUSING	(NO LONGER AVAILABLE)
6	M41746	1	CRADLE	(TAPPED HOLES)
7	JD9824	4	Thrust Bearing	(22.23 MM) 7/8" I.D.
8	M41739	2	BEVEL GEAR	-
9	M41049	1	STEERING GEAR	-
10	M41745	2	PINION	-
11	M41128	2	Strap	-
12	M40381	1	Pin	(84.14 MM) 3-5/16" LONG
13	M41744	2	SHAFT	-
14	W23122	2	Snap Ring	(SUB FOR M40808)
15	24H1441	4	Washer	1-1/64" X 1-1/2" X 0.048"
16	M41747	1	CRADLE	(PLAIN HOLES)
17	JD8875	1	Needle Bearing	(22.23 MM) 7/8" I.D.
18	M40514	2	Snap Ring	-
19	AM30797	2	WHEEL	-
20	19H2333	4	Cap Screw	1/4" X 2-1/4"
20	12H302	4	Lock Washer	1/4"
..	AM31925	1	TRANSAXLE	(SUB AM39055) (NO LONGER AVAILABLE)
..	M41725	1	TIRE	(18 X 8.50-8)
..	M45607	1	TIRE	(SUB M80369) (18 X 8.50-8)
..	M80369	1	TIRE	(18 X 8.50-8)
..	M46016	1	INNERTUBE	(SUB M82713) (18 X 8.50-8)

DIFFERENTIAL ASSEMBLY, REAR AXLES AND WHEELS [B18]
