Hydraulic Steering Oil Lines, 4WD, OOS, Paddy

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SU46842	1	Clamp	-
2	NF101292	1	Fitting	-
3	19M8291	1	Screw	M8 X 35
4	19M7783	1	Screw	M10 X 16
5	SU33605	2	Block Clamp	-
6	SJ28069	1	Oil Line	Supply
7	51M7043	1	O-Ring	15.300 X 2.200 mm
8	NF100632	1	Hose Clamp	-
9	NF101711	1	Hose Clamp	-
10	AH107416	1	Clip	-
11	SU289353	1	Strap	-
12	19M7868	1	Screw	M8 X 30
13	38H5016	2	Elbow Fitting	-
14	SU33634	1	Bracket	Steering Lines Support
15	SU20994	6	Rubber Track Belt	LGTH = 80 mm
16	NF100556	2	Half Clamp	-
17	19M7865	5	Screw	M8 X 16
18	SU21057	3	Clamp	-
19	38H5076	1	Adapter Fitting	-
20	SJ35003	1	Oil Line	Transmission Lubrication
20	SJ20914	1	Oil Line	Transmission Lubrication
21	51M7045	1	O-Ring	19.300 X 2.200 mm
22	NF100926	3	Hose Clamp	-
23	19M7867	2	Screw	M8 X 25
24	SJ21783	1	Oil Line	Return To Oil Cooler
25	51M7041	2	O-Ring	11.300 X 2.200 mm
26	SJ19571	1	Hydraulic Hose	Cooler
26	SJ36067	1	Hydraulic Hose	Cooler
27	SU40168	1	Bracket	Steering Lines Support
28	14M7298	5	Flange Nut	M8
29	SJ23046	1	Oil Line	Steering Line RH
30	SJ23047	1	Oil Line	Steering Line LH
31	19M7788	1	Screw	M12 X 25
32	T77857	2	O-Ring	-
33	T77613	4	O-Ring	-
34	SJ37959	1	Oil Line	Steering, Front RH
35	SJ37200	1	Oil Line	Steering, Rear RH
36	SU58634	1	Bracket	Steering Lines Support
37	SJ37197	1	Oil Line	Steering, Front LH
38	SJ37201	1	Oil Line	Steering, Rear LH

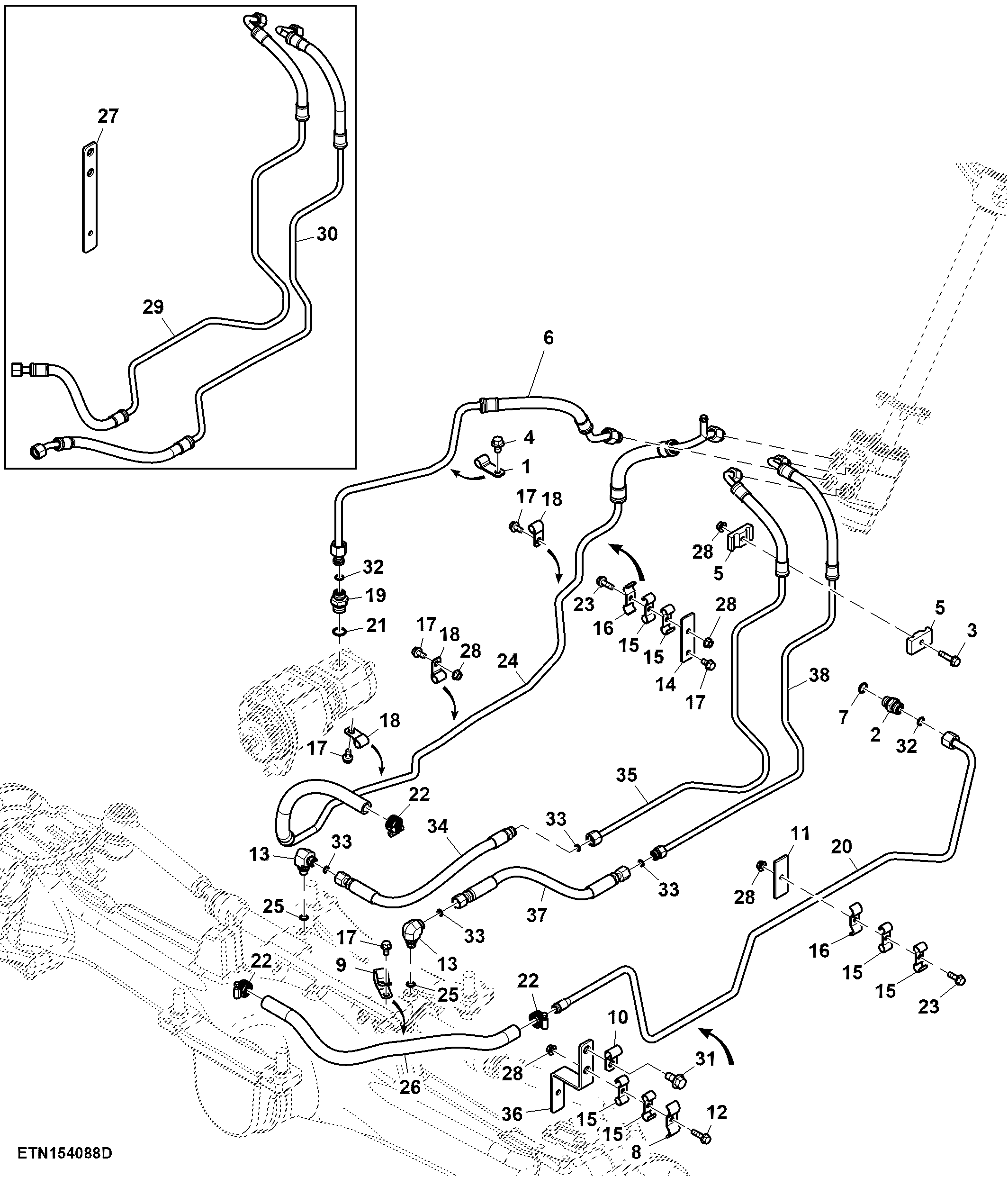

Hydraulic Steering Oil Lines, 4WD, OOS, Paddy
