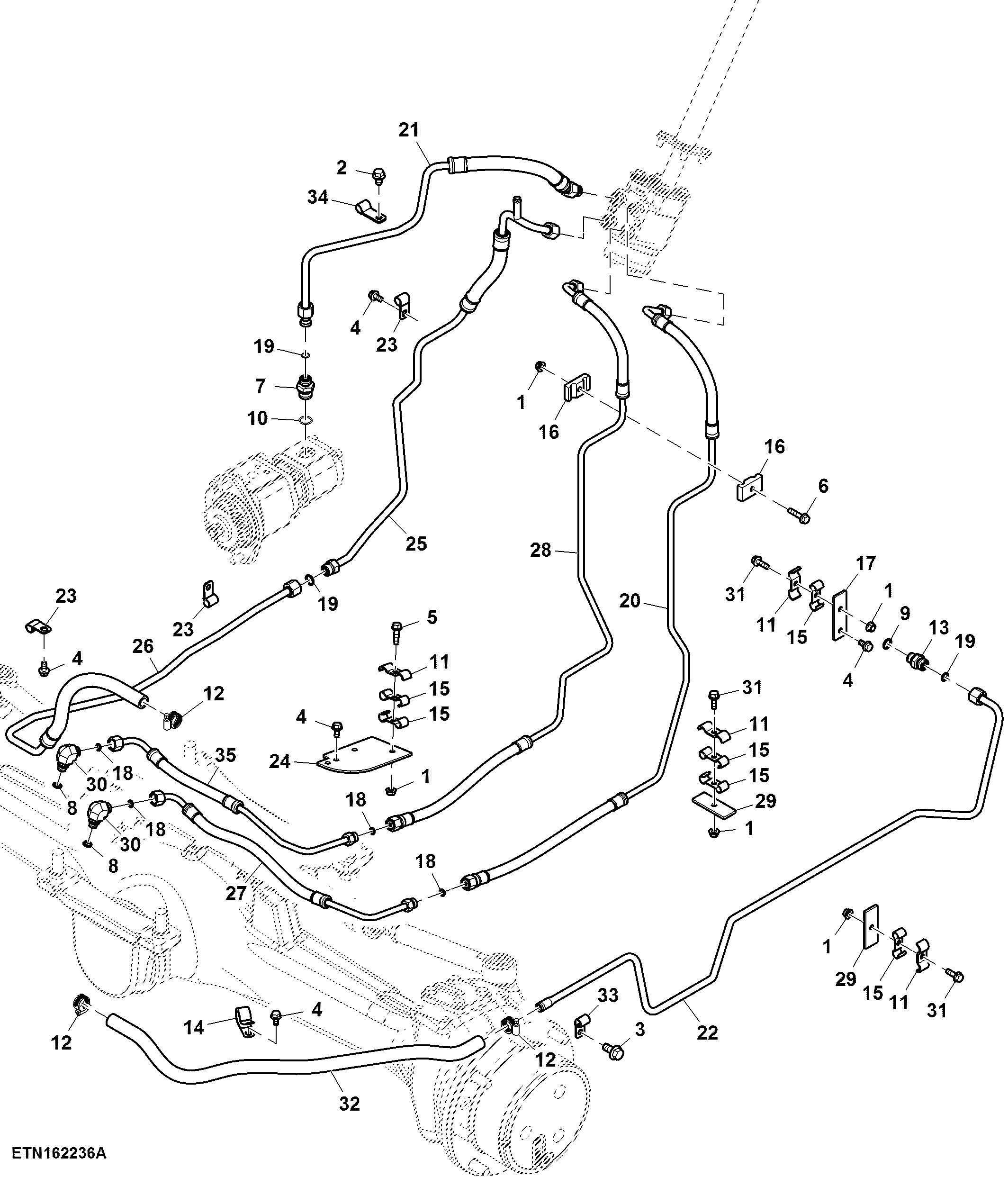

Hydraulic Steering Oil Lines, 4WD, W/ AC, PowerTech™ Electronic

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	6	Flange Nut	M8
2	19M7783	1	Screw	M10 X 16
3	19M7788	1	Screw	M12 X 25
4	19M7865	6	Screw	M8 X 16
5	19M7868	2	Screw	M8 X 30
6	19M8291	1	Screw	M8 X 35
7	38H5076	1	Adapter Fitting	-
8	51M7041	2	O-Ring	11.300 X 2.200 mm
9	51M7043	1	O-Ring	15.300 X 2.200 mm
10	51M7045	1	O-Ring	19.300 X 2.200 mm
11	NF100556	5	Half Clamp	-
12	NF100926	3	Hose Clamp	-
13	NF101292	1	Fitting	-
14	NF101711	1	Hose Clamp	-
15	SU20994	8	Rubber Track Belt	LGTH = 80 mm
16	SU33605	2	Block Clamp	-
17	SU33634	1	Bracket	Steering Lines Support
18	T77613	4	O-Ring	-
19	T77857	3	O-Ring	-
20	SJ26360	1	Oil Line	Steering Line, Rear LH
21	SJ20353	1	Oil Line	Steering Line, Supply Oil
22	SJ35003	1	Oil Line	Transmission Lubrication USE WITH SJ36067
22	SJ20914	1	Oil Line	Transmission Lubrication USE WITH SJ19571
23	SU21057	4	Clamp	-
24	SU34109	1	Bracket	-
25	SJ23220	1	Oil Line	Steering Line, Return to Oil Cooler
26	SJ26417	1	Oil Line	Steering Line, Return to Oil Cooler
27	SJ26363	1	Oil Line	Steering Line, Front LH
28	SJ26370	1	Oil Line	Steering Line, Rear RH
29	SU289353	2	Strap	-
30	38H5016	2	Elbow Fitting	-
31	19M7867	3	Screw	M8 X 25
32	SJ19571	1	Hydraulic Hose	LGTH = 795 mm, Cooler
32	SJ36067	1	Hydraulic Hose	LGTH = 900 mm, Cooler
33	AH107416	1	Clip	-
34	SU46842	1	Clamp	-
35	SJ26368	1	Oil Line	Steering Line, Front RH

Hydraulic Steering Oil Lines, 4WD, W/ AC, PowerTech™ Electronic

Нет текстового описания
