Hydraulic Steering Oil Lines, W/ A/C, High Clearance, 2WD

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	4	Flange Nut	M8
2	19M7783	1	Screw	M10 X 16
3	19M7788	1	Screw	M12 X 25
4	19M7865	4	Screw	M8 X 16
5	19M7868	1	Screw	M8 X 30
6	19M8291	1	Screw	M8 X 35
7	38H5076	1	Adapter Fitting	-
8	51M7041	2	O-Ring	11.300 X 2.200 mm
9	51M7043	1	O-Ring	15.300 X 2.200 mm
10	51M7045	1	O-Ring	19.300 X 2.200 mm
11	NF100556	1	Half Clamp	-
12	NF100926	3	Hose Clamp	-
13	NF101292	1	Fitting	-
14	NF101711	2	Hose Clamp	-
15	SU20994	3	Rubber Track Belt	LGTH = 80 mm
16	SU33605	2	Block Clamp	-
17	SU33634	1	Bracket	Steering Lines Support
18	T77613	2	O-Ring	-
19	T77857	3	O-Ring	-
20	NF100632	2	Hose Clamp	-
21	SJ20353	1	Oil Line	LGTH = 537.1 mm, Supply Oil
22	SU21057	3	Clamp	-
23	38H5002	1	Adapter Fitting	-
24	SJ23176	1	Oil Line	LGTH = 1141.4 mm, LH
25	SJ23181	1	Oil Line	LGTH = 1165.8 mm, RH
26	SU297805	1	Fitting	-
27	SU289353	1	Strap	Steering Lines Support
28	SU40168	1	Bracket	Steering Lines Support
29	19M7867	2	Screw	M8 X 25
30	SJ23220	1	Oil Line	LGTH = 899.3 mm, Steering Line, Return to Oil Cooler, Rear
31	SJ23268	1	Oil Line	LGTH = 620.7 mm, Steering Line, Return to Oil Cooler, Front
32	SJ19571	1	Hydraulic Hose	LGTH = 795 mm, Cooler
33	SJ24417	1	Oil Line	LGTH = 2090.1 mm, Transmission Lubrication
34	AH107416	1	Clip	-

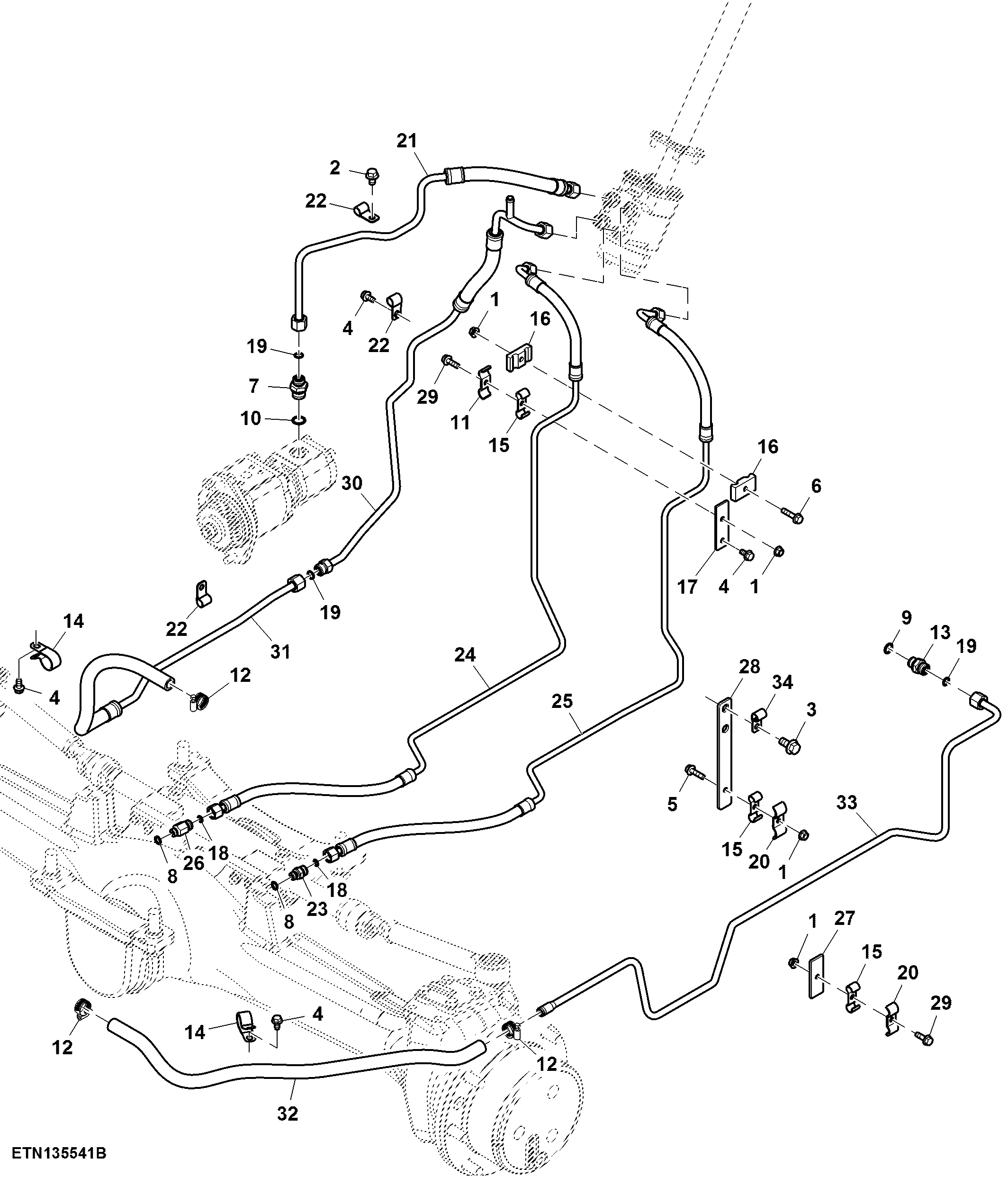

Hydraulic Steering Oil Lines, W/ A/C, High Clearance, 2WD
