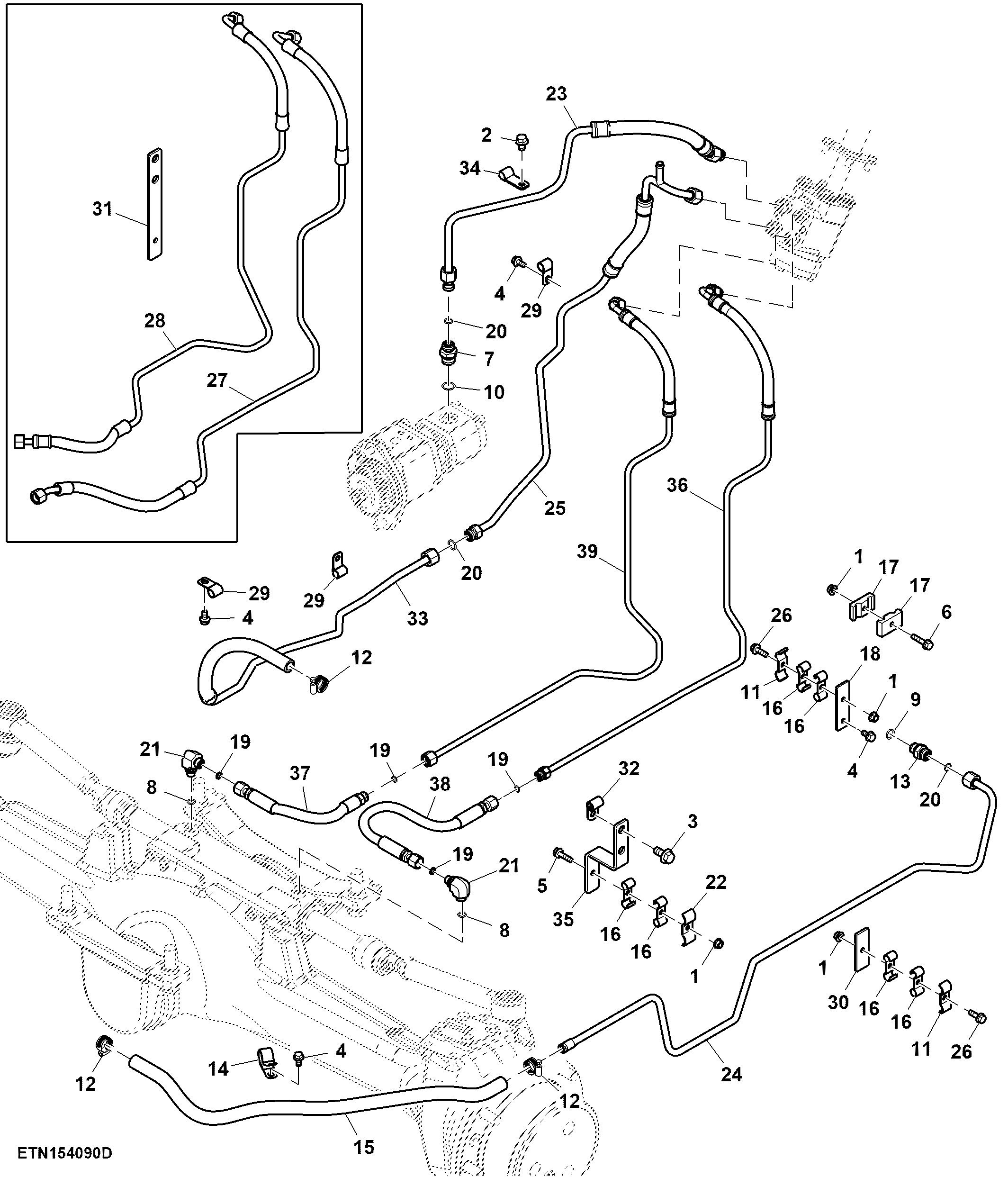

Hydraulic Steering Oil Lines, 4WD, Cab, W/ A/C, Paddy

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	4	Flange Nut	M8
2	19M7783	1	Screw	M10 X 16
3	19M7788	1	Screw	M12 X 25
4	19M7865	4	Screw	M8 X 16
5	19M7868	1	Screw	M8 X 30
6	19M8291	1	Screw	M8 X 35
7	38H5076	1	Adapter Fitting	-
8	51M7041	2	O-Ring	11.300 X 2.200 mm
9	51M7043	1	O-Ring	15.300 X 2.200 mm
10	51M7045	1	O-Ring	19.300 X 2.200 mm
11	NF100556	2	Half Clamp	-
12	NF100926	3	Hose Clamp	-
13	NF101292	1	Fitting	-
14	NF101711	1	Hose Clamp	-
15	SJ19571	1	Hydraulic Hose	Cooler
15	SJ36067	1	Hydraulic Hose	Cooler
16	SU20994	6	Rubber Track Belt	LGTH = 80 mm
17	SU33605	2	Block Clamp	-
18	SU33634	1	Bracket	Steering Lines Support
19	T77613	4	O-Ring	-
20	T77857	3	O-Ring	-
21	38H5016	2	Elbow Fitting	-
22	NF100632	1	Hose Clamp	-
23	SJ28027	1	Oil Line	Supply
24	SJ20914	1	Oil Line	Transmission Lubrication
24	SJ35003	1	Oil Line	Transmission Lubrication
25	SJ23220	1	Oil Line	Steering Line, Return to Oil Cooler, Rear
26	19M7867	2	Screw	M8 X 25
27	SJ23004	1	Oil Line	LH
28	SJ23018	1	Oil Line	RH
29	SU21057	3	Clamp	-
30	SU289353	1	Strap	-
31	SU40168	1	Bracket	-
32	AH107416	1	Clip	-
33	SJ23219	1	Oil Line	Steering Line, Return to Oil Cooler, Front
34	SU46842	1	Clamp	-
35	SU58634	1	Bracket	Steering Lines Support
36	SJ38801	1	Oil Line	Steering, Rear LH
37	SJ37959	1	Oil Line	Steering, Front RH
38	SJ37197	1	Oil Line	Steering, Front LH
39	SJ38800	1	Oil Line	Steering, Rear RH

Hydraulic Steering Oil Lines, 4WD, Cab, W/ A/C, Paddy
