Hydraulic Steering Oil Lines, 2WD, IOOS, PowerTech™ Electronic

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	4	Flange Nut	M8
2	19M7783	1	Screw	M10 X 16
3	19M8291	1	Screw	M8 X 35
4	51M7041	2	O-Ring	11.300 X 2.200 mm
5	51M7045	1	O-Ring	19.300 X 2.200 mm
6	NF100556	1	Half Clamp	-
7	NF100926	3	Hose Clamp	-
8	SU297805	1	Fitting	-
9	SU33605	2	Block Clamp	-
10	SU33634	1	Bracket	Steering Lines Support
11	T77857	2	O-Ring	-
12	SJ35003	1	Oil Line	Transmission Lubrication USE WITH SJ36067
12	SJ20914	1	Oil Line	Transmission Lubrication USE WITH SJ19571
13	19M7868	1	Screw	M8 X 30
14	T77613	2	O-Ring	-
15	51M7043	1	O-Ring	15.300 X 2.200 mm
16	38H5002	1	Adapter Fitting	-
17	NF101711	2	Hose Clamp	-
18	NF101292	1	Fitting	-
19	19M7865	4	Screw	M8 X 16
20	38H5076	1	Adapter Fitting	-
21	SU20994	3	Rubber Track Belt	LGTH = 80 mm
22	SJ20915	1	Oil Line	Steering Line, Return to Oil Cooler
23	19M7788	1	Screw	M12 X 25
24	NF100632	2	Hose Clamp	-
25	SJ28069	1	Oil Line	Supply
26	SJ36067	1	Hydraulic Hose	LGTH = 900 mm, Cooler
26	SJ19571	1	Hydraulic Hose	LGTH = 795 mm, Cooler
27	SU21057	2	Clamp	-
28	SU289353	1	Strap	-
29	SU40168	1	Bracket	Steering Lines Support
30	19M7867	2	Screw	M8 X 25
31	SJ22953	1	Oil Line	Steering Line LH
32	SJ22954	1	Oil Line	Steering Line RH
33	AH107416	1	Clip	-
34	SU46842	1	Clamp	-

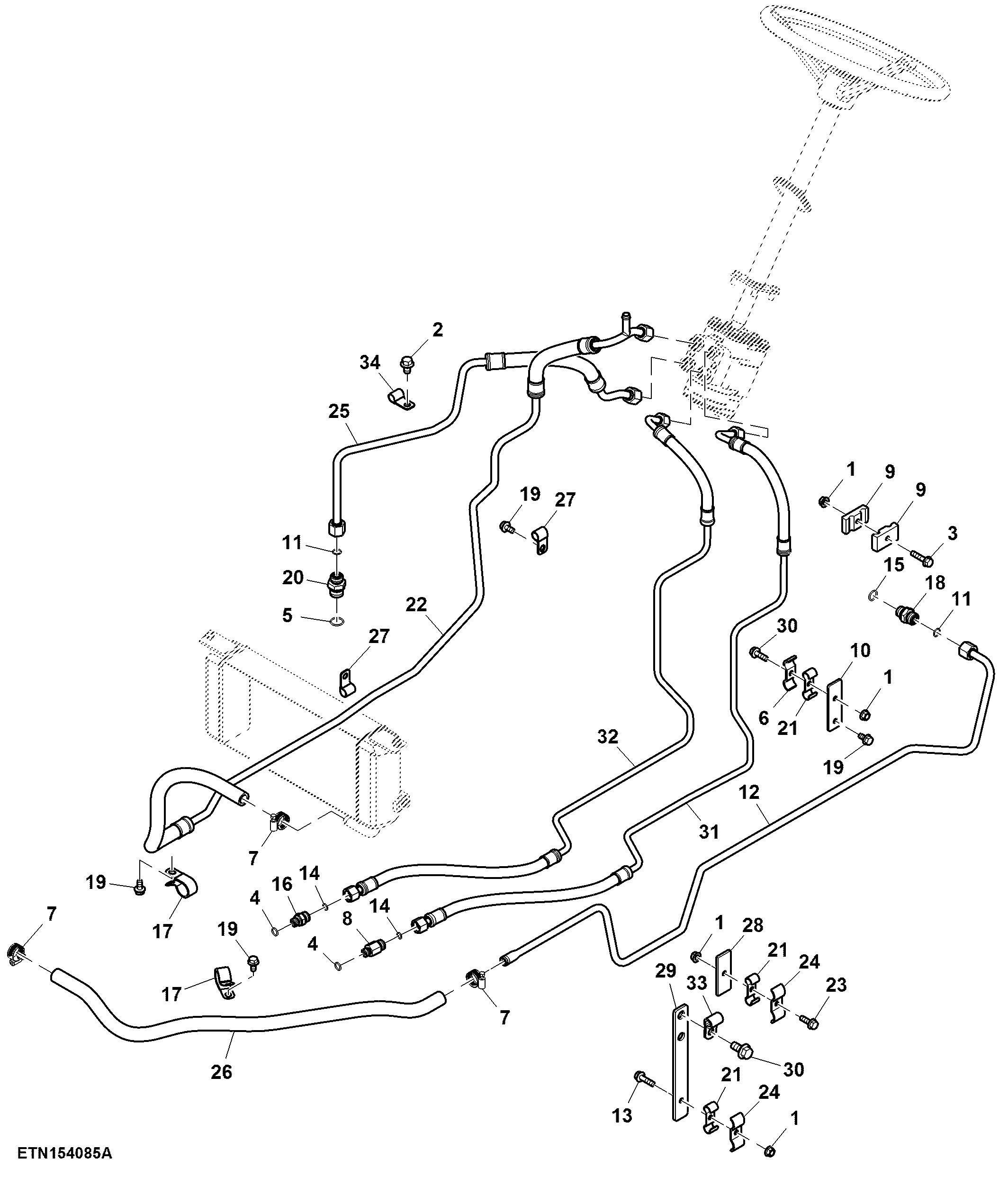

Hydraulic Steering Oil Lines, 2WD, IOOS, PowerTech™ Electronic
