WIRING HARNESSES, BATTERIES AND SENDERS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(SUB (2) TY21741, (2) T79470, (2) T79471, (4) 14M7298 AND (4) 24M7207)( AT126235 NO LONGER AVAILABLE)
6	4031771	1	Relay	(SUB FOR TH104069)BATTERY
7	4229055	1	WIRING HARNESS	(SUB FOR TH111933)WIPER
8	4229056	1	WIRING HARNESS	(SUB FOR TH111934)WIPER SWITCH
9	4229057	1	WIRING HARNESS	(SUB FOR TH111935)DOME LIGHT
10	21M7288	2	Screw	M6 X 10
11	24M7298	4	Washer	8.400 X 25 X 2 mm, (SUB FOR 24M7207)
40	AT219485	4	Elec. Connector Terminal	(BATTERY TERMINAL CLAMPS)
43	4191038	1	ELECTRICAL CONNECTOR ASSY	(SUB FOR TH107964)(FUSIBLE LINK)
44	4192489	5	Diode	(SUB FOR TH110500)(NOT ILLUSTRATED)
44	4232092	1	Wiring Harness	(SUB FOR AT126815)(ALSO ORDER AT130947 CONNECTOR KIT)
45	14M7274	4	Nut	M10
46	12M7066	4	Lock Washer	10 mm
47	4190261	1	Clip	(SUB FOR TH109649)
48	R73384	2	Clamp	(SUB FOR TH108597 OR 4190253)
50	T28949	4	Clamp	(SUB FOR TH108458 OR 4190274)
51	XCL-19	3	Hose Clamp	(SUB FOR TH108459 OR 4192035)
52	4190266	1	Clip	(SUB FOR TH108793)
53	R50454	3	Clamp	(SUB FOR TH109445 OR 4192034)
54	19M7881	14	Screw	M8 X 20
55	12M7066	14	Lock Washer	10 mm
68	4240648	1	WIRING LEAD	(SUB FOR AT130831)
2A	4131299	2	ANGLE	(SUB FOR TH100525)(USE WITH ORIGINAL BATTERY)
2B	T79470	2	ANGLE	(USE WITH REPLACEMENT BATTERY)
3A	4177557	2	Bolt	(SUB FOR TH108578)(USE WITH ORIGINAL BATTERY)
3B	T79471	2	Hook Bolt	(USE WITH REPLACEMENT BATTERY)
4A	14M7274	4	Nut	M10, (USE WITH ORIGINAL BATTERY)
4B	14M7298	4	Flange Nut	M8, (USE WITH REPLACEMENT BATTERY)
5A	TY6106	2	DRY CHARGED BATTERY	(USE IF AVAILABLE)
5B	TY21741	2	DRY CHARGED BATTERY	(SUB FOR TY6106)(AT182295 NO LONGER AVAILABLE)

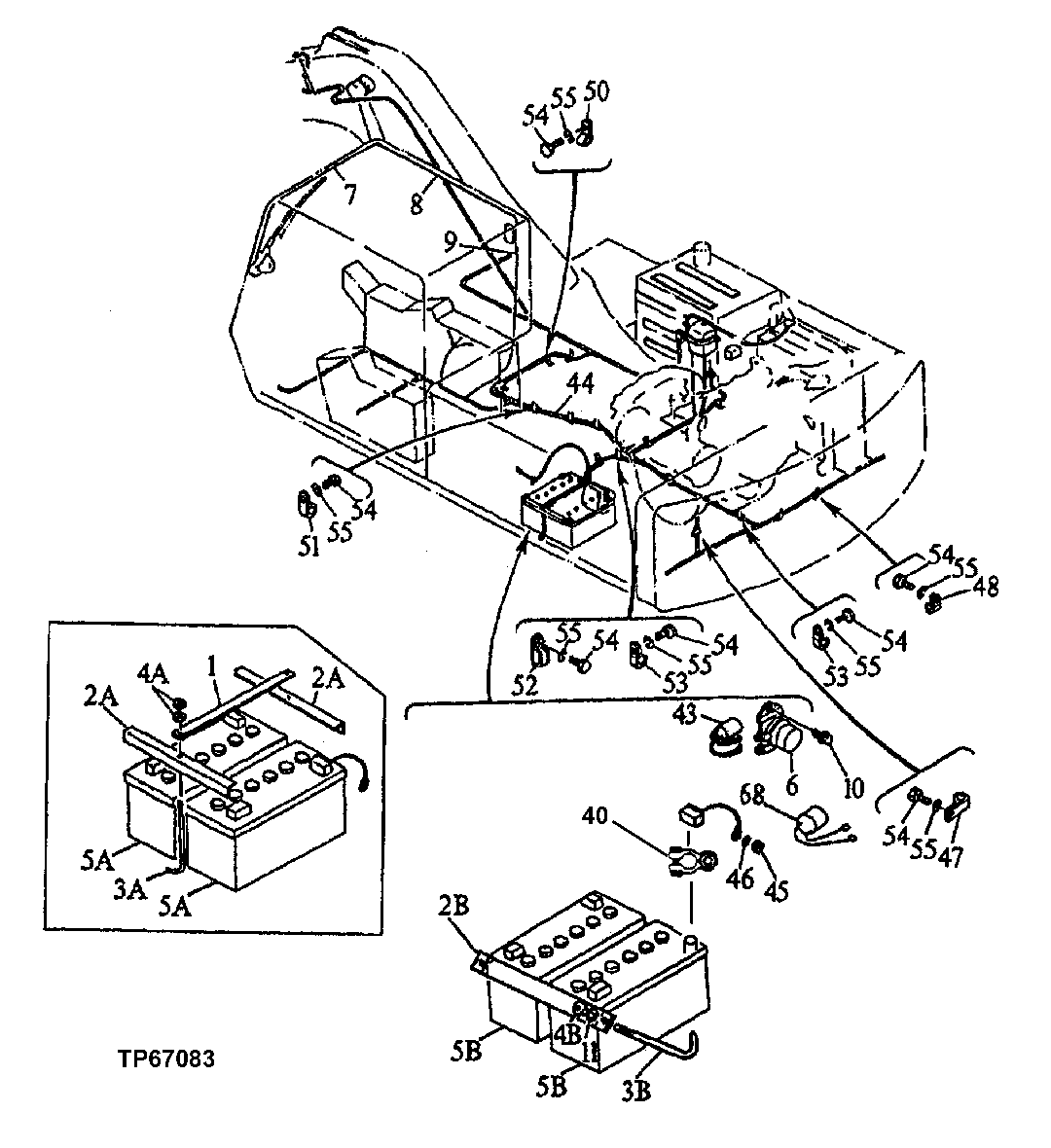

WIRING HARNESSES, BATTERIES AND SENDERS
