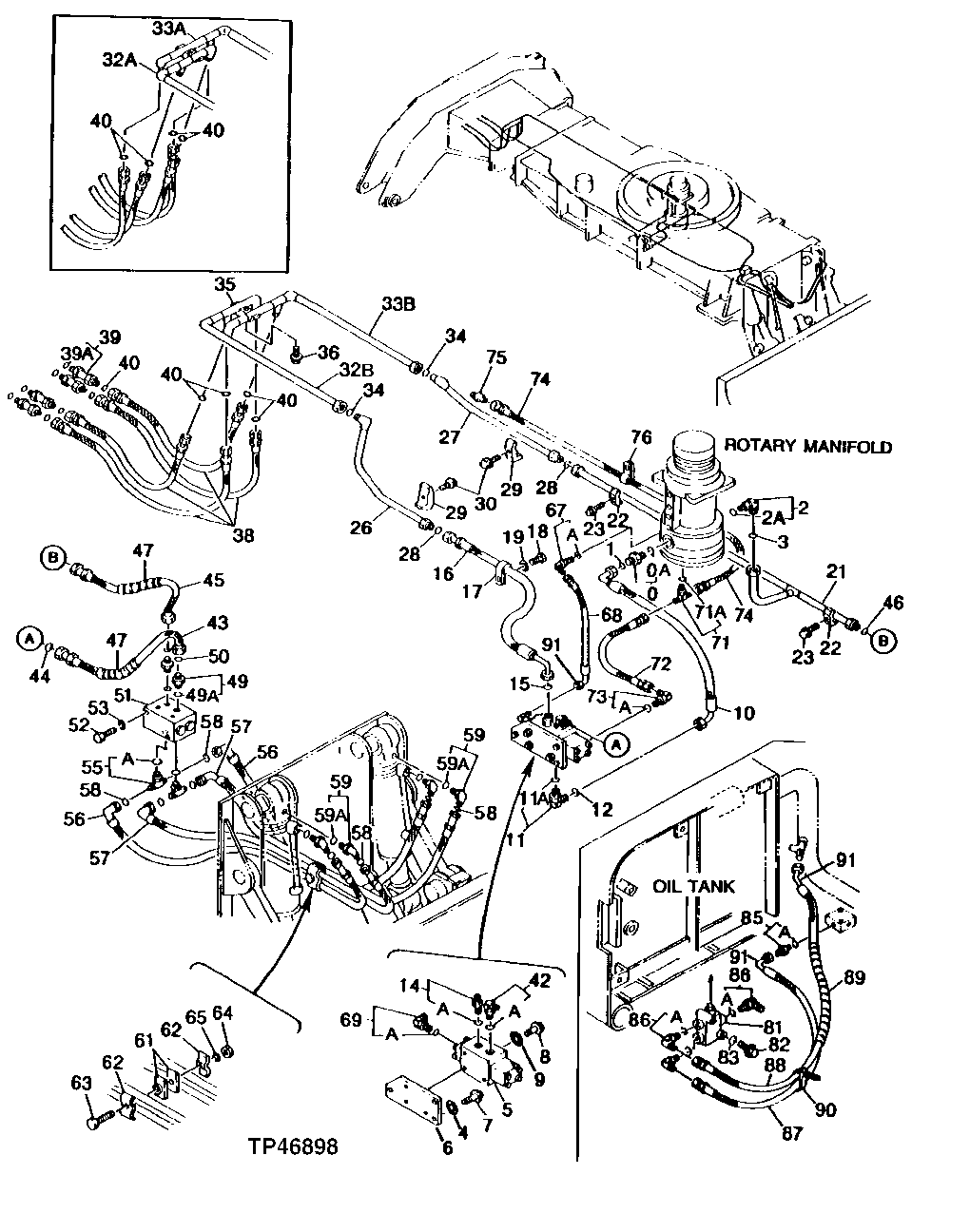

TWO-STABILIZER AND BLADE HYDRAULIC HOSES AND LINES

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	A853166	1	Adapter Fitting	(SUB FOR AT107392 OR 4189619)
1	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070"), (SUB FOR TH108349)
2	4205391	1	Elbow Fitting	(SUB FOR AT127606)
3	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070"), (SUB FOR TH108326)
4	12M7058	3	Lock Washer	12 mm, (SUB FOR 12M7067)
5	4223033	1	Hyd Actuated Control Valve	(SUB FOR AT127665)BLADE WITH STABILIZER DIVERTER
6	4222951	1	Bracket	(SUB FOR AT127664)
7	19M8011	3	Cap Screw	M12 X 30
8	19M8122	3	Cap Screw	M12 X 85
9	12M7058	3	Lock Washer	12 mm, (SUB FOR 12M7067)
10	AT127727	1	Hydraulic Hose	30.1752" X 550 mm (21-3/4") X 30.1752"
11	4157562	1	Elbow Fitting	(SUB FOR TH109540)
12	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070"), (SUB FOR TH108349)
14	A853166	1	Adapter Fitting	(SUB FOR AT107392 OR 4189619)
15	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070"), (SUB FOR TH108349)
16	AT127692	1	Hydraulic Hose	36.5252" X 1200 mm (47-1/4") X 30.1752"
17	AT121321	1	Hose Clamp	-
18	19M8017	1	Cap Screw	M12 X 20
19	24M7047	1	Washer	13 X 24 X 2.500 mm
21	8044973	1	Oil Line	(SUB FOR AT127949)
22	4190126	2	Clamp	(SUB FOR TH109830)
23	19M7361	2	Cap Screw	M12 X 50
26	8043812	1	Oil Line	(SUB FOR AT127945)
27	8043813	1	Oil Line	(SUB FOR AT127946)
28	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070"), (SUB FOR TH108326)
29	4190126	2	Clamp	(SUB FOR TH109830)
30	19M7361	2	Cap Screw	M12 X 50
34	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070"), (SUB FOR TH108326)
35	4285723	1	Clamp	(SUB FOR TH109071 OR 4189859)
36	19M7361	1	Cap Screw	M12 X 50
38	AT127609	4	Hydraulic Hose	13/16" X 650 mm (25-1/2") X 13/16"
39	4197531	4	Adapter Fitting	(SUB FOR AT127603)
40	T77857	8	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), (SUB FOR TH108323)
42	4157562	1	Elbow Fitting	(SUB FOR TH109540)
43	AT127686	1	Hydraulic Hose	30.1752" X 649 mm (25-1/2") X 30.1752"
44	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070"), (SUB FOR TH108349)
45	AT127685	1	Hydraulic Hose	36.5252" X 699 mm (27-1/2") X 30.1752"
46	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070"), (SUB FOR TH108326)
47	-	2	Part 49	(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH), (SUB FOR AT138222)
0A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
2A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
11A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
14A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
32A	8041917	1	Line	(SUB FOR AT127926)
32B	8045703	1	Oil Line	(SUB FOR AT127957)
33A	8041916	1	Line	(SUB FOR AT127925)
33B	8045702	1	Oil Line	(SUB FOR AT127956)
39A	4506418	1	O-Ring	17.800 X 2.400 mm (0.701" X 3/32"), (SUB FOR U46489)
42A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
