Открытый узел

STEERING KNUCKLE

STEERING KNUCKLE

STEERING KNUCKLE

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

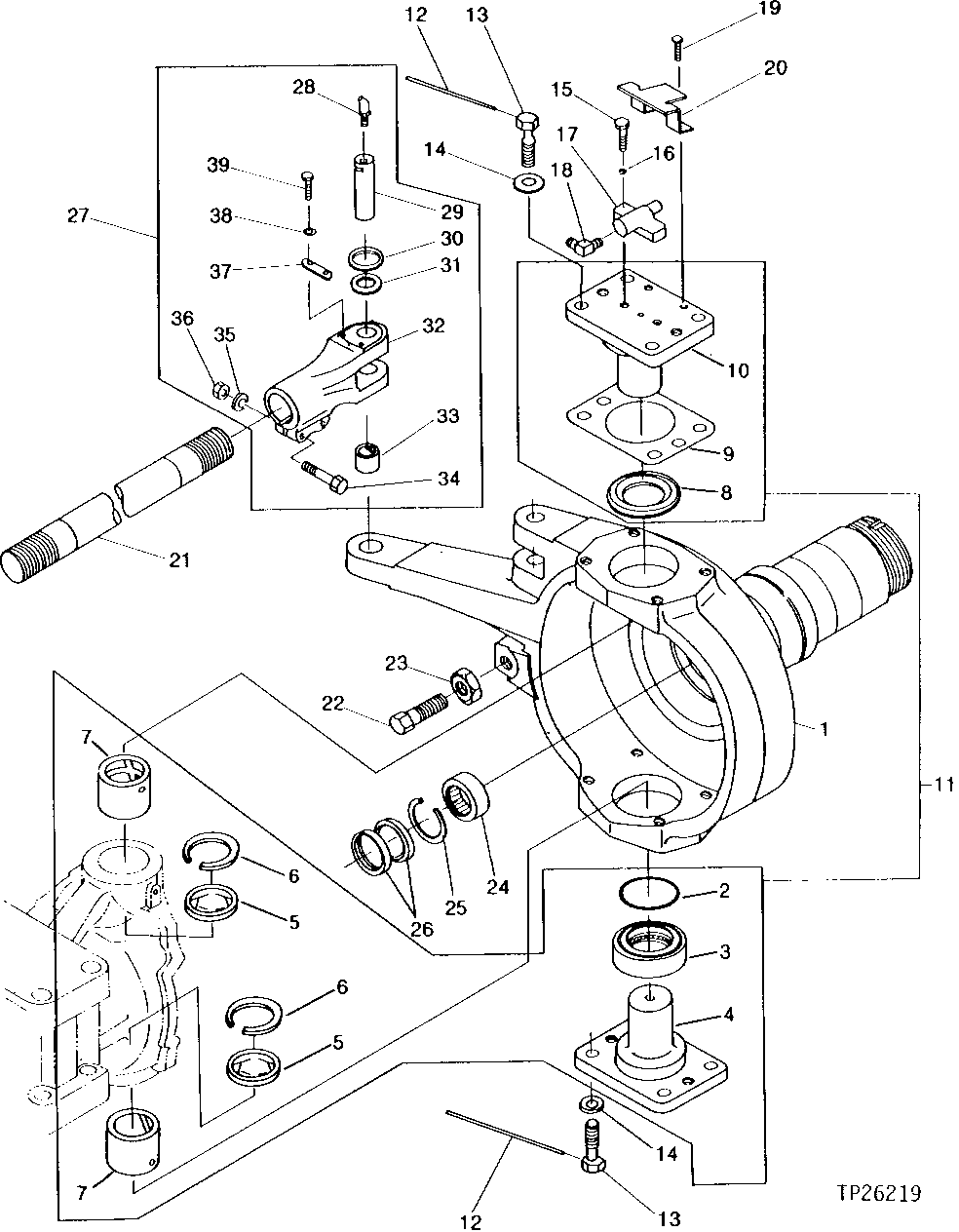

STEERING KNUCKLE

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	0362502	1	Knuckle	(SUB FOR AT127410)(LEFT HAND)
1	0362501	1	Knuckle	(SUB FOR AT127409)(RIGHT HAND)
2	0266549	1	O-RING	(SUB FOR TH112246)
3	-	1	Part 4	(SUB AT127432)
4	-	1	Part 5	(SUB AT127432)(LOWER)
5	0362526	4	Plug	(SUB FOR AT128496)
6	0362527	4	Snap Ring	(SUB FOR AT128497)
7	-	2	Part 8	(SUB AT127432)
8	-	1	Part 9	(SUB AT127432)
9	-	1	Part 10	(SUB AT127432)
10	-	1	Part 11	(SUB AT127432)(UPPER)
11	0362524	1	Kit	(SUB FOR AT127432)
12	T44829	8	WIRE	-
13	0266517	16	Bolt	M20 X 60, (SUB FOR TH105100)(8 EACH KNUCKLE)
14	24M7279	16	Washer	21 X 37 X 4 mm, (SUB FOR TH105099 OR 0266529)(8 EACH KNUCKLE)
15	T116333	4	Bolt	M10 X 30, (SUB FOR AT127413)(2 EACH KNUCKLE)
16	12M7066	4	Lock Washer	10 mm, (SUB FOR AT127415 ) (SUB FOR 0362507)(2 EACH KNUCKLE)
17	0362506	2	Manifold	(SUB FOR AT127414)(1 EACH KNUCKLE)
18	0362525	2	ELBOW FITTING	(SUB FOR TH105096 ) (SUB FOR AT128351)(1 EACH KNUCKLE)
19	19M7932	4	Cap Screw	M8 X 16, (SUB FOR AT127412)(2 EACH KNUCKLE)
20	0362503	2	Cover	(SUB FOR AT127411)(1 EACH KNUCKLE)
21	0266522	1	Tube	(SUB FOR TH105105)
22	0266523	2	BOLT	M24 X 65, (SUB FOR TH105106)(1 EACH KNUCKLE)
23	CC102451	2	Nut	(SUB FOR AT127431 ) (SUB FOR 0362523)(1 EACH KNUCKLE)
24	0266508	2	Needle Bearing	(SUB FOR TH105091)(1 EACH KNUCKLE)
25	0266509	2	SNAP RING	(SUB FOR TH105092)(1 EACH KNUCKLE)
26	4S00608	4	Seal	(SUB FOR TH105076 OR 0266403)(2 EACH KNUCKLE)
27	0362509	1	Tie Rod End	(SUB FOR AT127417)(RIGHT HAND)
27	0362510	1	Tie Rod End	(SUB FOR AT127418)(LEFT HAND)
28	T116334	1	Lubrication Fitting	(SUB FOR TH100075)
29	-	1	Part 31	(SUB AT127417, THIS APPLICATION OR AT127418)
30	-	2	Part 32	(SUB AT127417, THIS APPLICATION OR AT127418)
31	-	2	Part 33	(SUB AT127417, THIS APPLICATION OR AT127418)
32	-	1	Part 34	(SUB AT127417, THIS APPLICATION OR AT127418)
33	-	1	Part 35	(SUB AT127417, THIS APPLICATION OR AT127418)
34	-	2	Part 36	(SUB AT127417, THIS APPLICATION OR AT127418)
35	12M7058	2	Lock Washer	12 mm, (SUB FOR 12M7067)
36	-	2	Part 38	(SUB AT127417, THIS APPLICATION OR AT127418)
37	-	1	Part 39	(SUB AT127417, THIS APPLICATION OR AT127418)
38	12M7066	2	Lock Washer	10 mm, (SUB FOR AT127415 ) (SUB FOR 0362507)
39	19M8784	2	Screw	M10 X 20, (SUB FOR 19M8356)
