Открытый узел

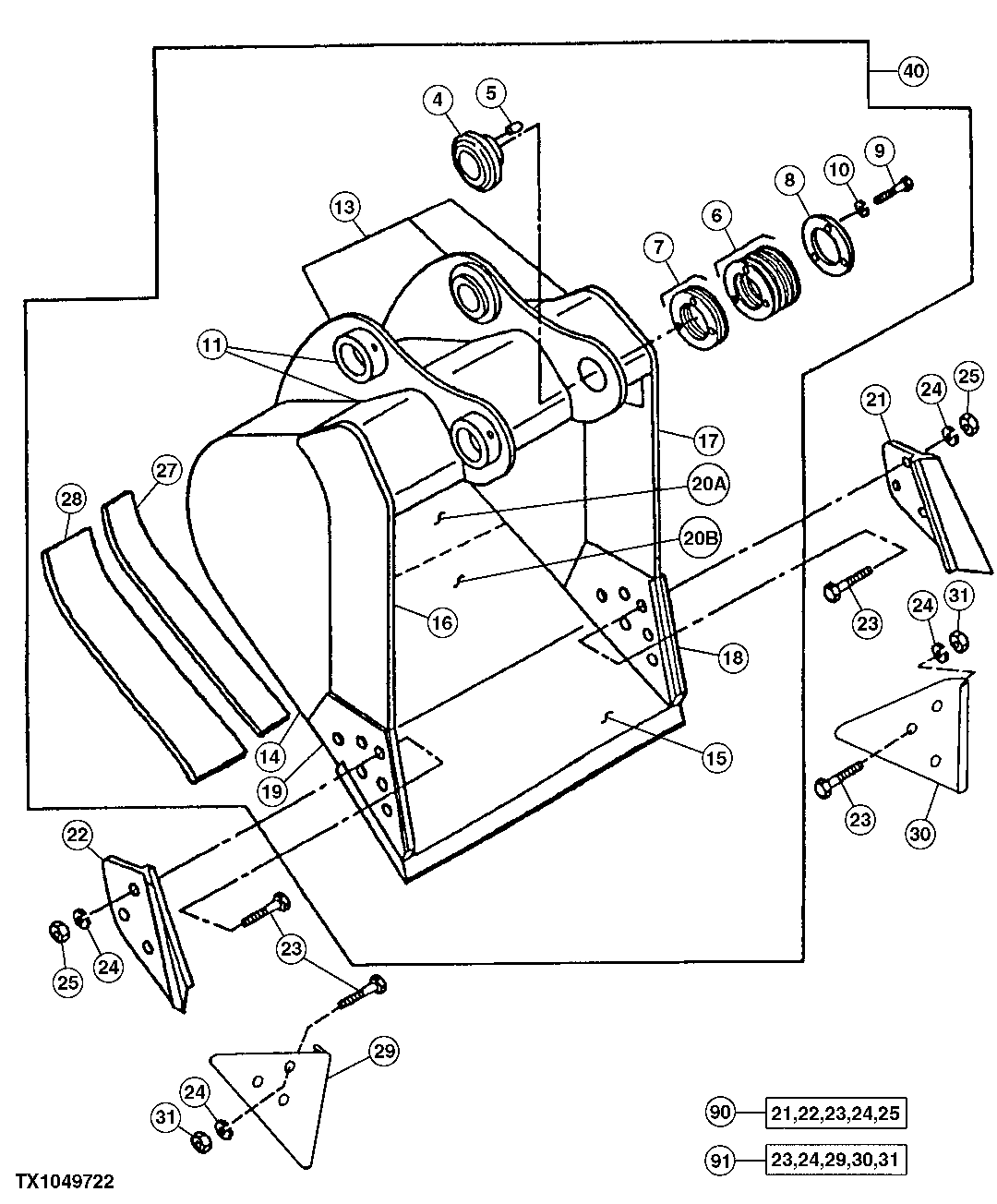

GENERAL PURPOSE BUCKET (ORDER TEETH SEPARATELY)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	-	1	Part 1	( AT131083 NLA)
5	R48685	1	Dowel Pin	-
6	TH104512	9	Washer	(1 MM)
7	TH104513	1	Shim	(.5 MM)
8	TH104514	1	Spacer	-
9	19H2706	3	Cap Screw	5/8" X 2"
10	12H294	3	Lock Washer	5/8"
11	TH104509	2	Bushing	-
13	C607429	1	Pivot	(JOHN DEERE DEALER ORDER DIRECTLY FROM WOODS-CENTRAL FABRICATORS) (BUCKET EAR BLANK ASSEMBLY)
14	607048	2	Plate	(JOHN DEERE DEALER ORDER DIRECTLY FROM WOODS-CENTRAL FABRICATORS) (RIGHT AND LEFT SIDE)
15	AT131081	1	Dura-Max Cutting Edge	(JOHN DEERE DEALER ORDER DIRECTLY FROM WOODS-CENTRAL FABRICATORS) (CUT TO LENGTH)
16	304954	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM WOODS-CENTRAL FABRICATORS) (UPPER RIGHT SIDE CUTTER)
17	304955	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM WOODS-CENTRAL FABRICATORS) (UPPER LEFT SIDE CUTTER)
18	304953	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM WOODS-CENTRAL FABRICATORS) (LEFT SIDE CUTTER INSERT)
19	304952	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM WOODS-CENTRAL FABRICATORS) (RIGHT SIDE CUTTER INSERT)
21	-	1	Part 26	(SUB AT131080)
22	-	1	Part 27	(SUB AT131080)
23	09H1770	6	Bolt	7/8" X 2-1/2"
24	12H245	6	Lock Washer	7/8"
25	14H1077	6	Nut	7/8"
27	304966	1	Bar	(INNER WEAR)
28	606618	2	Bar	(OUTER WEAR)
29	-	1	Part 33	(WEAR SHROUD)
30	-	1	Part 34	(WEAR SHROUD)
31	14H1044	6	Nut	7/8"
40	-	1	Part 36	(SUB FOR AT131018 OR AT131138)( AT163580 NLA) WHOLEGOODS (24 INCH - .50 CUBIC YARD)
40	-	1	Part 37	(SUB FOR AT131019 OR AT131139)( AT163581 NLA) WHOLEGOODS (30 INCH - .64 CUBIC YARD)
40	-	1	Part 38	(SUB FOR AT131020 OR AT131140)( AT163582 NLA) WHOLEGOODS (36 INCH - .78 CUBIC YARD)
40	-	1	Part 39	(SUB FOR AT131021 OR AT131141)( AT163583 NLA) WHOLEGOODS (42 INCH - .92 CUBIC YARD)
40	-	1	Part 40	(SUB FOR AT131022 OR AT131142)( AT163584 NLA) WHOLEGOODS (48 INCH - 1.06 CUBIC YARD)
90	-	1	Part 41	( AT131080 NLA) (SIDE CUTTER KIT), WHOLEGOODS (WOODS-CENTRAL FABRICATORS NO. C20338)
91	-	1	Part 42	( AT167874 NLA) (EDGE PROTECTOR KIT), WHOLEGOODS (WOODS-CENTRAL FABRICATORS NO. C28357)
20A	604681	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM WOODS-CENTRAL FABRICATORS) (UPPER MOLDBOARD - 48 INCH BUCKET)
20A	604680	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM WOODS-CENTRAL FABRICATORS) (UPPER MOLDBOARD - 42 INCH BUCKET)
20A	604679	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM WOODS-CENTRAL FABRICATORS) (UPPER MOLDBOARD - 36 INCH BUCKET)
20A	604678	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM WOODS-CENTRAL FABRICATORS) (UPPER MOLDBOARD - 30 INCH BUCKET)
20A	604676	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM WOODS-CENTRAL FABRICATORS) (UPPER MOLDBOARD - 24 INCH BUCKET)
20B	604672	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM WOODS-CENTRAL FABRICATORS) (LOWER MOLDBOARD - 48 INCH BUCKET)
20B	604671	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM WOODS-CENTRAL FABRICATORS) (LOWER MOLDBOARD - 42 INCH BUCKET)
20B	604670	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM WOODS-CENTRAL FABRICATORS) (LOWER MOLDBOARD - 36 INCH BUCKET)
20B	604669	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM WOODS-CENTRAL FABRICATORS) (LOWER MOLDBOARD - 30 INCH BUCKET)
20B	604667	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM WOODS-CENTRAL FABRICATORS) (LOWER MOLDBOARD - 24 INCH BUCKET)

GENERAL PURPOSE BUCKET (ORDER TEETH SEPARATELY)

Нет текстового описания
