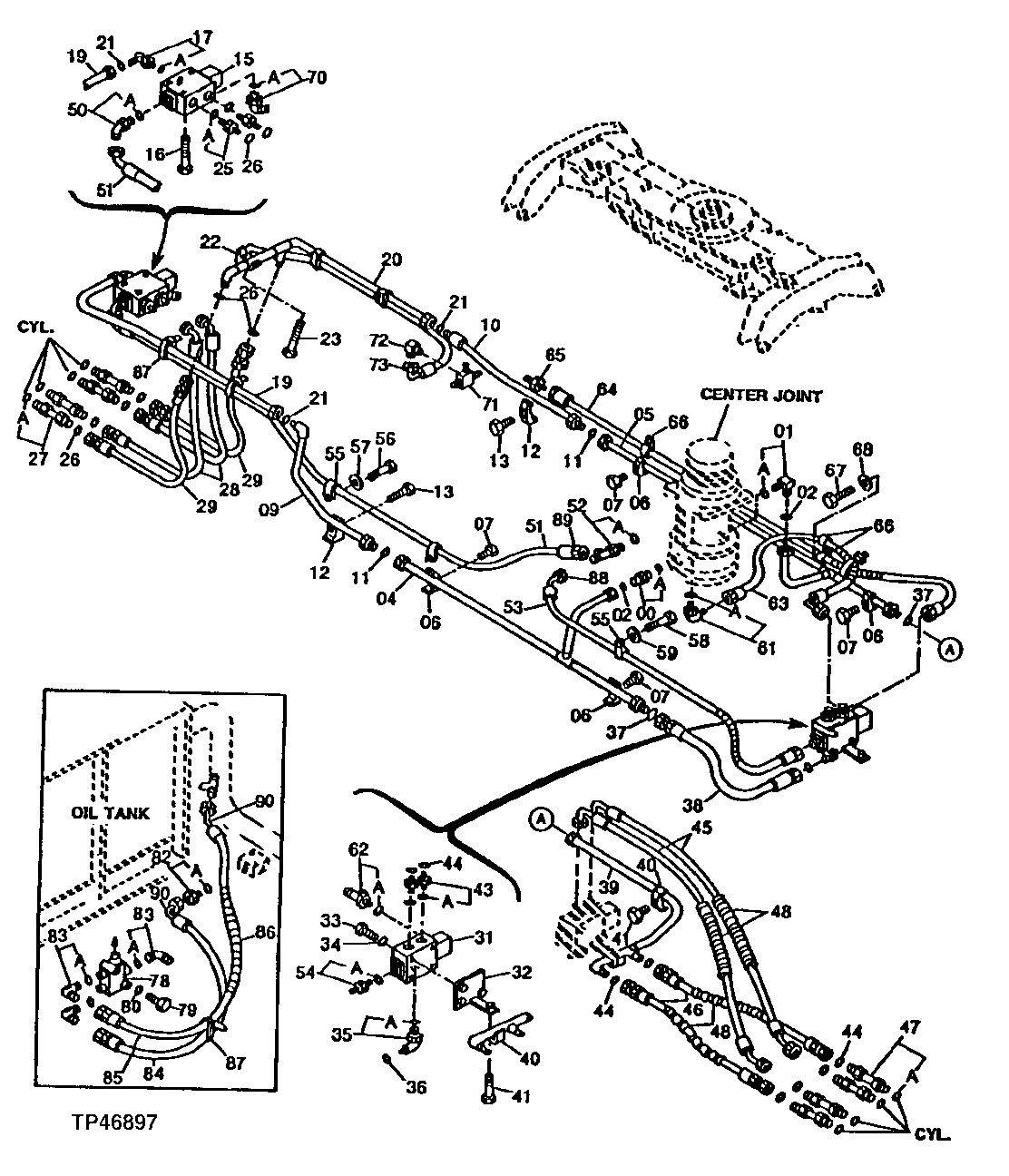

FOUR-STABILIZER HYDRAULIC HOSES AND LINES (001059 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4189601	1	Adapter Fitting	(SUB FOR AT107394)
1	4205391	1	Elbow Fitting	(SUB FOR AT127606)
2	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070"), (SUB FOR TH108326)
4	8043811	1	Oil Line	(SUB FOR AT128374)
5	8044973	1	Oil Line	(SUB FOR AT127949)
6	4190126	4	Clamp	(SUB FOR TH109830)
7	19M7361	4	Cap Screw	M12 X 50
9	8043812	1	Oil Line	(SUB FOR AT127945)
10	8043813	1	Oil Line	(SUB FOR AT127946)
11	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070"), (SUB FOR TH108326)
12	4190126	2	Clamp	(SUB FOR TH109830)
13	19M7361	2	Cap Screw	M12 X 50
15	4246691	1	Hyd Actuated Control Valve	(SUB FOR AT128375)
16	12M7058	3	Lock Washer	12 mm, (SUB FOR 12M7067)
16	19M8122	3	Cap Screw	M12 X 85
17	4205391	1	Elbow Fitting	(SUB FOR AT127606)
19	8041921	1	Oil Line	(SUB FOR AT128376)
20	8045702	1	Oil Line	(SUB FOR AT127956)
21	T76938	3	O-Ring	23.520 X 1.778 mm (0.926" X 0.070"), (SUB FOR TH108326)
22	4190126	1	Clamp	(SUB FOR TH109830)
23	19M7361	1	Cap Screw	M12 X 50
25	4188623	2	Fitting	(SUB FOR TH110492)
26	T77857	8	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), (SUB FOR TH108323)
27	4197531	4	Adapter Fitting	(SUB FOR AT127603)
28	AT128377	2	Hydraulic Hose	13/16" X 649 mm (25-1/2") X 13/16"
29	AT127609	2	Hydraulic Hose	13/16" X 650 mm (25-1/2") X 13/16"
31	4223033	1	Hyd Actuated Control Valve	(SUB FOR AT127665)
32	9732248	1	Bracket	(SUB FOR AT128378)
33	19M7949	3	Cap Screw	M12 X 100, (SUB FOR AT128379, ALONG WITH 12M7058)
34	12M7058	3	Lock Washer	12 mm, (SUB FOR 12M7067)
35	4157562	1	Elbow Fitting	(SUB FOR TH109540)
36	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070"), (SUB FOR TH108349)
37	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070"), (SUB FOR TH108326)
38	AT128380	1	Hydraulic Hose	30.1752" X 650 mm (25-1/2") X 36.5252"
39	8043331	1	Oil Line	(SUB FOR AT127944)
40	4190126	2	Clamp	(SUB FOR TH109830)
41	19M7361	2	Cap Screw	M12 X 50
43	4188623	2	Fitting	(SUB FOR TH110492)
44	T77857	8	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), (SUB FOR TH108323)
45	AT128381	2	Hydraulic Hose	13/16" X 949 mm (37-1/2") X 13/16"
46	AT126383	2	Hydraulic Hose	13/16" X 800 mm (31-1/2") X 13/16"
0A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
1A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
17A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
25A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
27A	4506418	1	O-Ring	17.800 X 2.400 mm (0.701" X 3/32"), (SUB FOR U46489)
35A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
43A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)

FOUR-STABILIZER HYDRAULIC HOSES AND LINES (001059 - )
