Открытый узел

AXLE LOCK LINES AND HOSES

AXLE LOCK LINES AND HOSES

AXLE LOCK LINES AND HOSES

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

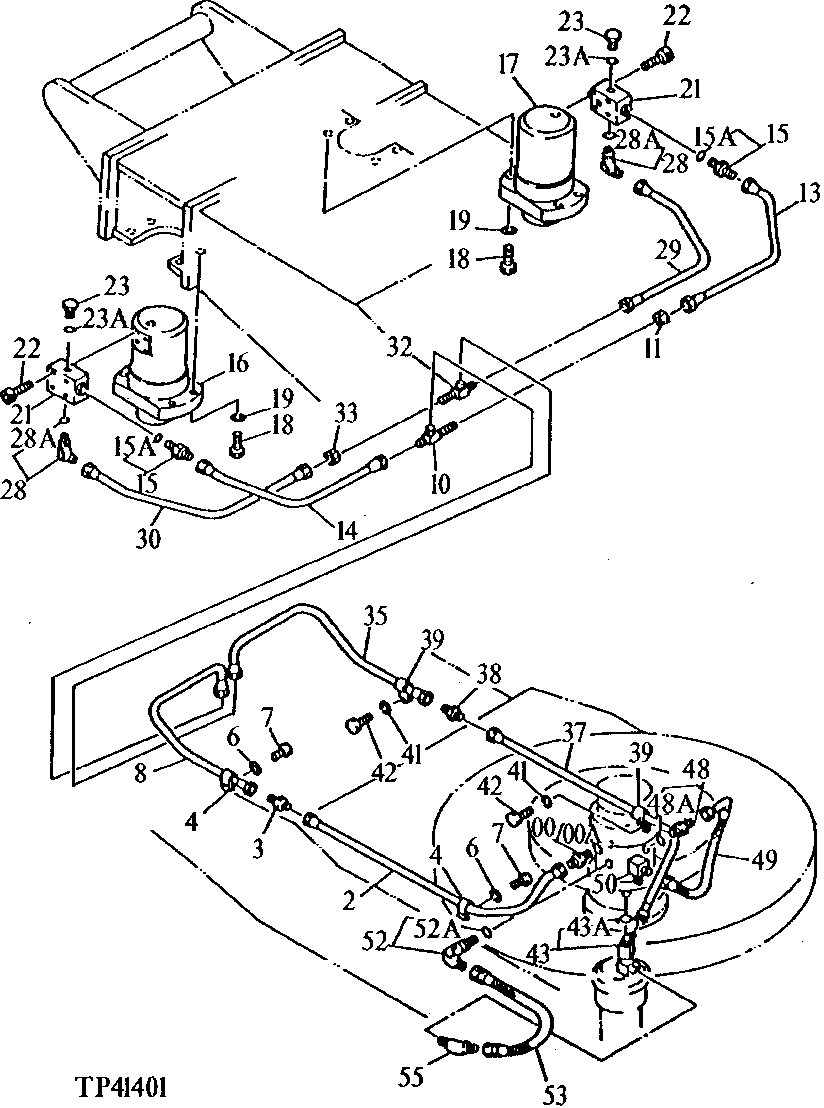

AXLE LOCK LINES AND HOSES

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4189438	1	Adapter Fitting	(SUB FOR AT126280)
2	8043321	1	Oil Line	(SUB FOR AT127936)
3	4043941	1	Adapter Fitting	(SUB FOR TH104006)
4	TH104034	2	Clamp	-
6	12M7006	2	Lock Washer	6 mm
7	J900614	2	Bolt	(SUB FOR TH104056)
8	8043322	1	Oil Line	(SUB FOR AT127937)
10	4216823	1	Tee Fitting	(SUB FOR AT127647)
11	14M7289	1	Nut	M16
13	8043323	1	Oil Line	(SUB FOR AT127938)
14	8043324	1	Oil Line	(SUB FOR AT127939)
15	4189438	2	Adapter Fitting	(SUB FOR AT126280)
16	4235114	1	Cylinder	(SUB FOR AT127693)(LEFT AXLE LOCK)
17	4231780	1	Cylinder	(SUB FOR AT127691)(RIGHT AXLE LOCK)
18	19M7719	8	Cap Screw	M16 X 70
19	12H294	8	Lock Washer	5/8"
21	4227459	2	Check Valve	(SUB FOR AT127672)LOCK-OUT
22	19M8554	8	Screw	M8 X 65
23	15M7036	2	Drain Plug	(SUB FOR 4092534, 4217653, TH109285 OR 0309805 ) (ALSO ORDER CH11570)
28	4209704	2	Elbow Fitting	(SUB FOR AT126472)
29	8043325	1	Oil Line	(SUB FOR AT127940)
30	8043326	1	Oil Line	(SUB FOR AT127941)
32	4216823	1	Tee Fitting	(SUB FOR AT127647)
33	14M7289	1	Nut	M16
35	8043327	1	Oil Line	(SUB FOR AT127942)
37	8043328	1	Oil Line	(SUB FOR AT127943)
38	4043941	1	Adapter Fitting	(SUB FOR TH104006)
39	TH104034	2	Clamp	-
41	12M7006	2	Lock Washer	6 mm
42	J900614	2	Bolt	(SUB FOR TH104056)
43	4209704	1	Elbow Fitting	(SUB FOR AT126472)
48	4200467	1	Adapter Fitting	(SUB FOR TH108417)
49	AT67065	1	HYDRAULIC HOSE - FABRICATE	9/16" X 508 mm (20") X 9/16", (SUB FOR AT127683)
50	T115889	1	ELBOW FITTING	(SUB FOR TH101035)
52	AT318014	1	Elbow Fitting	(SUB FOR 4156434 ) (SUB FOR TH101930)
53	AR98204	1	Hydraulic Hose	9/16" X 406 mm (16") X 9/16", (SUB FOR AT127684)
55	4219342	1	Elbow Fitting	(SUB FOR AT126725)
0A	M800650	1	Packing	-
15A	M800650	1	Packing	-
23A	CH11570	2	O-Ring	(USE WITH 4092534 OR TH109285)
28A	CH11570	1	O-Ring	-
43A	CH11570	1	O-Ring	-
48A	M800650	1	Packing	-
52A	M800650	1	Packing	-
