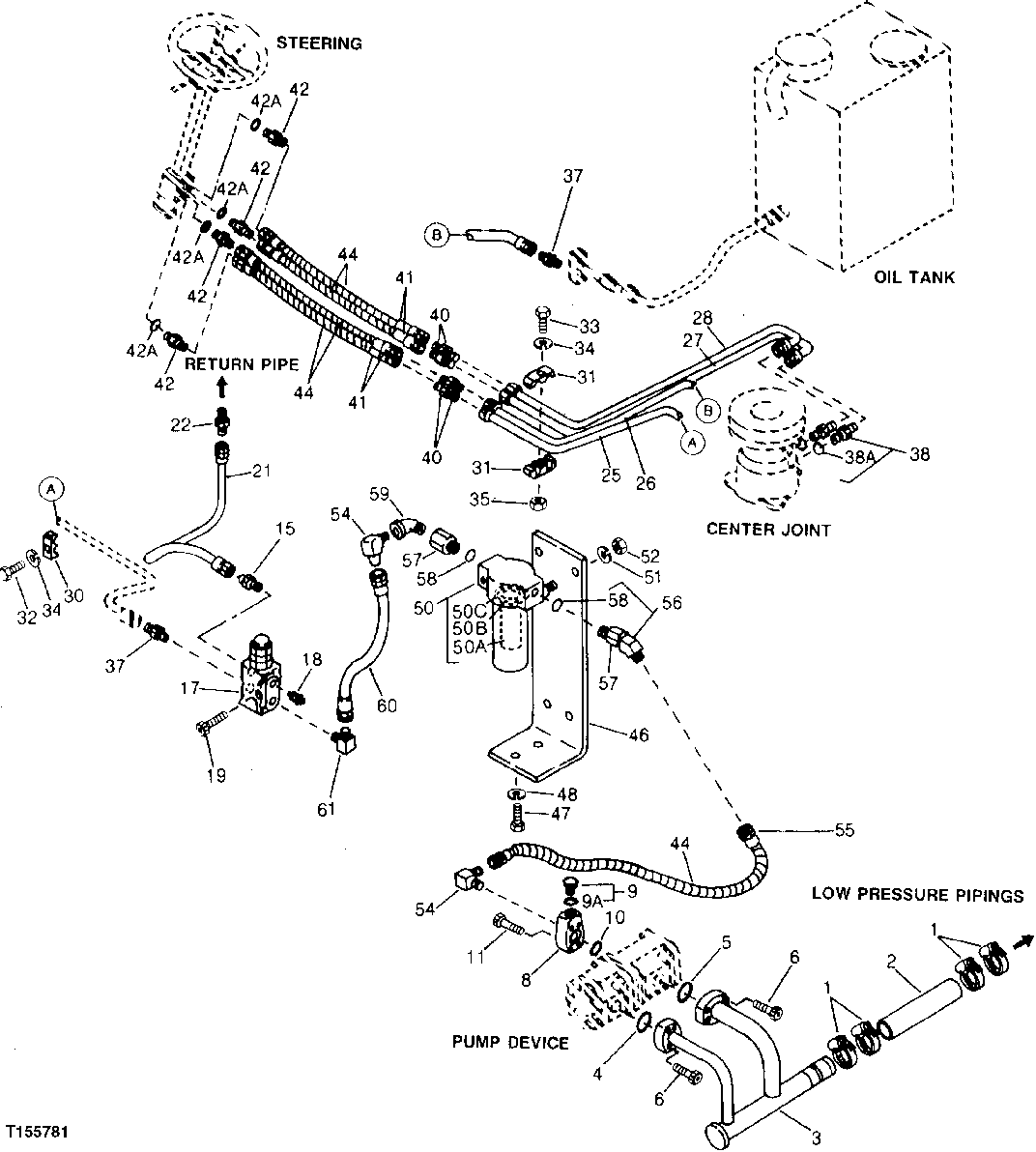

STEERING SYSTEM HYDRAULIC LINES AND HOSES [01H01]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TY22470	4	Clamp	(SUB FOR TH102960) (SUB FOR AR21840, THIS APPLICATION) (SUB FOR AR65293)
2	4120255	1	HOSE	(CUT TO LENGTH) (SUB FOR TH102959) (SUB FOR AT122226)
3	7016395	1	LINE	(SUB FOR TH103945)
4	U46166	1	O-Ring	(SUB FOR TH103946)
5	AT264324	1	O-Ring	(SUB FOR TH101912, T32587, TH100044)
6	19M8334	8	Screw	M6 X 30
8	4200313	1	ADAPTER FITTING	(SUB FOR TH103948) (ALSO ORDER TH106134, TH107040 AND TH101039) (SUB FOR TH107038)
9	AT318013	1	Drain Plug	(SUB FOR 4093624) (SUB FOR TH103949) (SUB FOR TH102536)
10	A811025	1	O-Ring	(SUB FOR TH103950)
11	19M8532	4	Screw	M6 X 35, (SUB FOR 19M8110)
15	4182732	1	Adapter Fitting	(SUB FOR TH103953)
17	4183589	1	RELIEF VALVE	(SUB FOR TH103954)
18	94-2023	1	Fitting Plug	(SUB FOR TH100667)
19	19M8335	2	Screw	M8 X 55
21	TH101005	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH103550)
22	4154653	1	ADAPTER FITTING	(SUB FOR TH100989)
25	7016401	1	OIL LINE	(SUB FOR TH103956)
26	7016402	1	OIL LINE	(SUB FOR TH103957)
27	8034359	1	OIL LINE	(SUB FOR TH103958)
28	8034360	1	OIL LINE	(SUB FOR TH103959)
30	4138227	1	Clamp	(SUB FOR TH101062)
31	4053593	2	CLAMP	(SUB FOR TH100969)
32	19M7358	1	Cap Screw	M10 X 40
33	19M8081	1	Cap Screw	M10 X 80
34	12M7066	2	Lock Washer	10 MM, (SUB FOR TH100417)
35	14M7274	1	Nut	M10
37	94-1302	2	Adapter Fitting	(SUB FOR TH101302)
38	4159158	2	FITTING	(SUB FOR TH103961)
40	T115957	4	ADAPTER FITTING	(SUB FOR TH101034)
41	4182710	4	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH103962)
42	R36426	4	Fitting	(SUB FOR TH103963 ALONG WITH R26375)
44	3052919	5	TUBE	(SUB FOR TH100996) (SUB FOR AT138222) (CUT TO LENGTH)
46	4192964	1	BRACKET	(SUB FOR TH105619)
47	19M7872	2	Cap Screw	M12 X 25
48	12H301	2	Lock Washer	1/2", (SUB FOR TH100413)
50	4189543	1	FILTER	(SUB FOR TH105620)
51	12M7066	2	Lock Washer	10 MM, (SUB FOR TH100417)
52	14M7274	2	Nut	M10
54	4154658	2	Elbow Fitting	(SUB FOR TH101035) (SUB FOR TH101039)
55	4190224	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH105624 OR TH107039) (SUB FOR TH106134)
56	4200326	1	ELBOW FITTING	(SUB FOR TH104011) (SUB FOR TH107040)
57	4200314	1	ADAPTER FITTING	(SUB FOR TH105625) (SUB FOR TH107041)
58	4506418	2	O-Ring	(SUB FOR TH100061) (SUB FOR U46489)
59	4267436	1	ELBOW FITTING	(SUB FOR TH102124) (SUB FOR TH107042)
60	4197782	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH105626) (SUB FOR TH107043)
61	4200315	1	Elbow Fitting	(SUB FOR TH107044)
9A	M800650	1	Packing	(SUB FOR TH100716)
38A	4506418	1	O-Ring	(SUB FOR U46489)
42A	R26375	4	O-Ring	(USE WITH R36426 FITTING)
42A	R26375	4	O-Ring	(SUB FOR U10778) (USE WITH TH103963 FITTING)
50A	4193201	1	FILTER ELEMENT	(SUB FOR TH105621)
50B	F1870R	1	O-Ring	(SUB FOR TH105622)
50C	4193202	1	BACK-UP RING	(SUB FOR TH105623)
