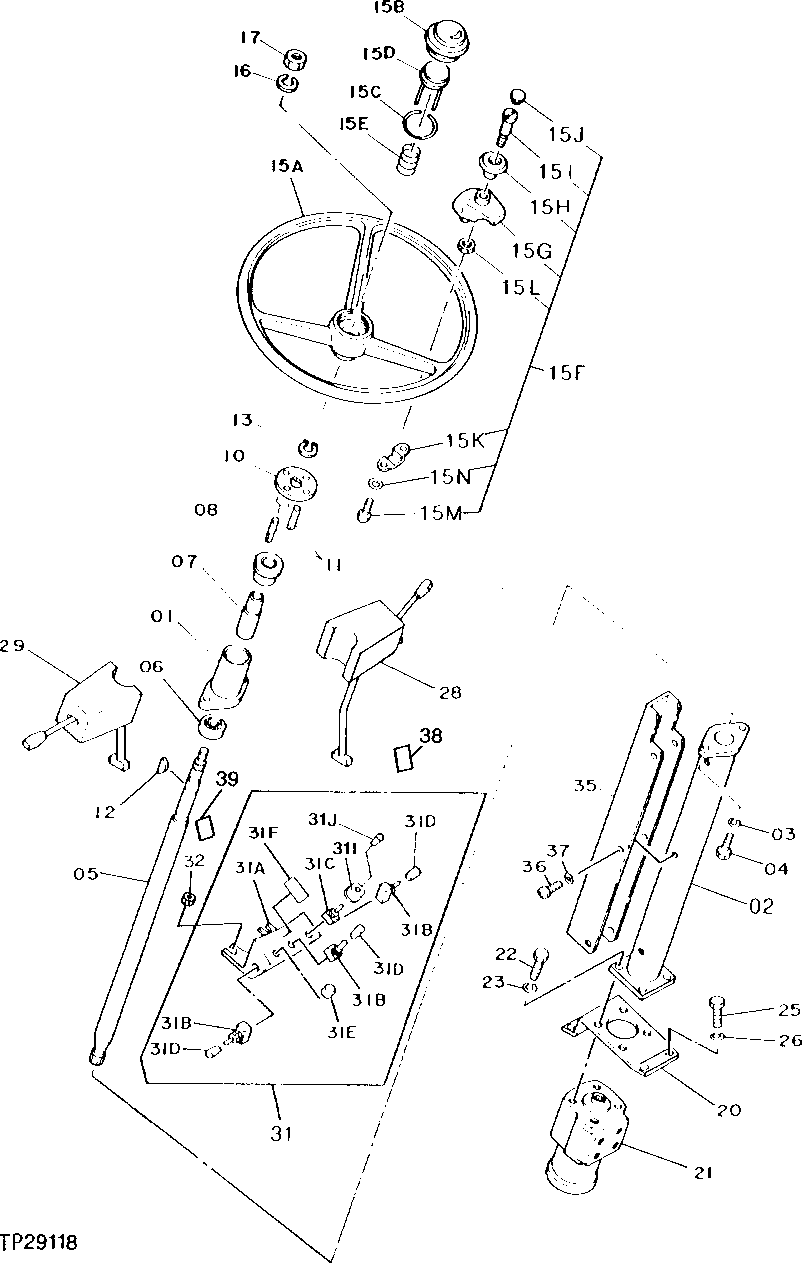

STEERING [01G21]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	8027180	1	STEERING COLUMN	(SUB FOR TH103910)
2	7013132	1	STEERING COLUMN	(SUB FOR TH103909)
3	12M7066	2	Lock Washer	10 MM, (SUB FOR TH100417)
4	19M7358	2	Cap Screw	M10 X 40
5	3027142	1	SHAFT	(SUB FOR TH103911)
6	JD30049	1	Ball Bearing	(SUB FOR TH103912)
7	4148007	1	SPACER	(SUB FOR TH103913)
8	4098806	1	BUSHING	(SUB FOR TH103914)
10	3027143	1	RETAINER	(SUB FOR TH103915)
11	34M7144	2	Spring Pin	4 X 28 MM, (SUB FOR TH103916)
12	94-2501	1	SHAFT KEY	(SUB FOR TH102579)
13	40M7080	1	Snap Ring	(SUB FOR TH103864)
16	12H301	1	Lock Washer	1/2", (SUB FOR TH100413)
17	14M7275	1	Nut	M12
18	4613978	1	RETAINER	(NOT ILLUSTRATED)
20	3027144	1	BRACKET	(SUB FOR TH103931)
21	4149140	1	VALVE	(SUB FOR TH103932)
22	19H3239	4	Cap Screw	3/8" X 1-1/4"
23	12H304	4	Lock Washer	3/8", (SUB FOR TH101070)
25	19M7938	4	Cap Screw	M10 X 20
26	12M7066	4	Lock Washer	10 MM, (SUB FOR TH100417)
28	4149143	1	SWITCH	(SUB FOR TH103933) (LIGHT)
29	4149144	1	Switch	(SUB FOR TH103934)
31	9069292	1	BOX	(SUB FOR TH105615) (INCLUDES WIRE HARNESS TO STEERING COLUMN)
32	14M7274	2	Nut	M10
35	3031908	1	COVER	(SUB FOR TH103943)
36	21M7288	6	Screw	M6 X 10, (SUB FOR TH100547)
37	24M7054	6	Washer	6.400 X 12 X 1.600 MM, (SUB FOR TH100278)
38	4163681	1	LABEL	(SUB FOR TH103941)
39	4163682	1	Label	(SUB FOR TH103942)
15A	4374065	1	STEERING WHEEL	(SUB FOR TH103919, 4107339) (ALSO ORDER 4613978)
15B	4374066	1	PUSH BUTTON	(SUB FOR TH103920, 4107340)
15C	4107342	1	RETAINER	(SUB FOR TH103921, 4107341)
15D	4374068	1	LOCK	(SUB FOR TH103922, 4107342)
15E	4374069	1	SPRING	(SUB FOR TH103923, 4107343)
15F	4374070	1	GRIP	(SUB FOR TH103924, 4107344)
15G	-	1	Part 19	(SUB AZ38364)
15H	-	1	Part 20	(SUB AZ38364)
15I	-	1	Part 21	(SUB AZ38364)
15J	-	1	Part 22	(SUB AZ38364)
15K	-	1	Part 23	(SUB AZ38364)
15L	14M7274	1	Nut	M10, (SUB FOR TH102127)
15M	21M7277	2	Screw	M6 X 25
15N	12M7006	2	Lock Washer	6 MM, (SUB FOR TH100548)
31A	8030457	1	PANEL	(SUB FOR TH103936)
31B	AT50820	3	Toggle/Rocker Switch	(SUB FOR TH103937)
31C	4441159	1	Toggle/Rocker Switch	(SUB FOR TH103938) (ALSO ORDER TH105617 AND TH105618) (SUB FOR TH106931)
31D	4042098	3	Cap	(SUB FOR TH103939)
31E	4146754	1	ISOLATOR	(SUB FOR TH100572)
31F	4192961	1	Label	(SUB FOR TH105616)
31I	4192962	1	Cap	(USE WITH TH106931) (SUB FOR TH105617)
31J	4192963	1	Cap	(USE WITH TH106931) (SUB FOR TH105618)
