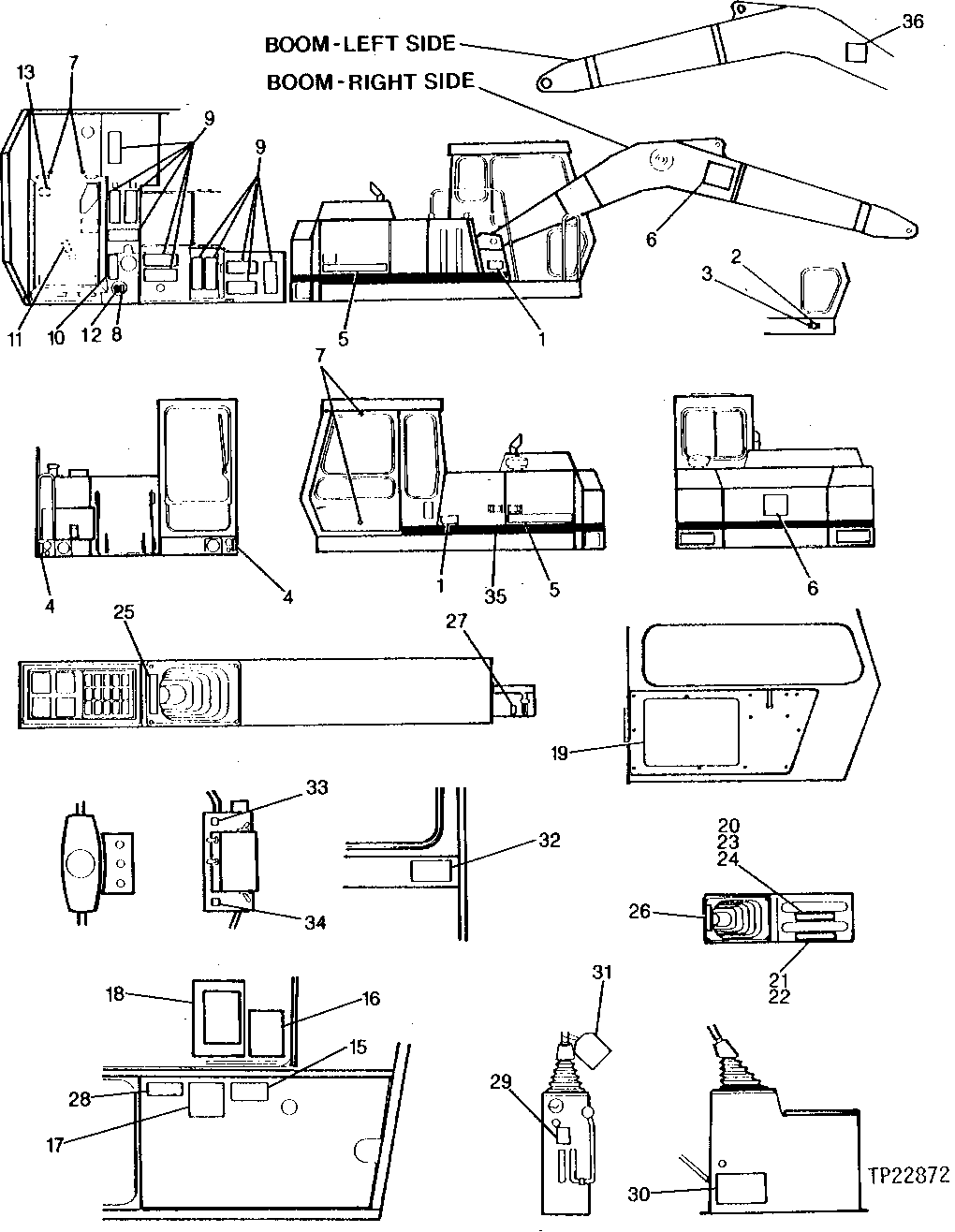

NAME PLATES, DECALS AND LABELS [01I11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	3035941	2	LABEL	(SUB FOR TH106908) (595 NAME PLATE)
2	-	1	Part 2	( TH106909 NOT AVAILABLE)(SERIAL NUMBER PLATE)
3	37H131	2	Screw	0.140" X 3/8"
4	4191421	2	REFLECTOR	(SUB FOR TH106910)
5	JD5613	2	LABEL	-
6	JD5626	3	LABEL	-
7	T119535	4	Label	(SUB FOR TH101411) (BUMPER)
8	4173122	1	SAFETY SIGN	(SUB FOR TH103519)
8	T114537	1	SAFETY SIGN	(SUB FOR TH108035)
9	H21259	12	Mat	-
10	H21259	1	Mat	-
11	-	1	Part 12	( TH106911 NOT AVAILABLE)(NAME PLATE)
12	P63448	1	Label	(SUB FOR AT155733 OR T108113) (PUMP BLEED)
13	T146102	1	Label	(WARNING PLATE-JUMP STARTING) (SUB FOR TH106912, T75512, T146102 OR T146102 OR T146102)
15	T108077	1	LABEL	(SUB FOR TH106913) (INFO-TRANSMISSSION)
16	3036581	1	LABEL	(SUB FOR TH106914) (NAME PLATE)
17	3036582	1	LABEL	(SUB FOR TH106915) (WARNING - BRAKE AIR PRESSURE)
18	2023382	1	LABEL	(SUB FOR TH106916) (NAME PLATE - LIFT CAPACITY)
19	1011147	1	LABEL	(SUB FOR TH108033) (PERIODIC MAINTENANCE)
19	1011147	1	LABEL	(SUB FOR TH106906) (SUB TH108033) (PERIODIC MAINTENANCE)
20	T104226	1	LABEL	(SUB FOR TH106917) (NAME PLATE - STABILIZER)
21	4194507	1	LABEL	(SUB FOR TH106918) (NAME PLATE - CENTER STABILIZER)
22	T104226	1	LABEL	(SUB FOR TH106919) (NAME PLATE - AUXILIARY)
23	4194509	1	LABEL	(SUB FOR TH106920) (NAME PLATE- END STABILIZER)
24	4194510	1	LABEL	(SUB FOR TH106921) (NAME PLATE - BLADE)
25	TH103404	1	Label	(SUB FOR TH101699) (RIGHT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)
26	TH103405	1	Label	(SUB FOR TH101700) (LEFT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)
27	4146723	1	LABEL	(SUB FOR TH101412) (WATER SHUTOFF LABEL)
28	T35672	1	LABEL	(SUB FOR TH101403)
29	4167679	1	LABEL	(SUB FOR TH101701) (DECAL, LEFT CONTROL LEVER)
30	T146667	1	Safety Sign	(SUB FOR T114392) (DANGER - ELECTROCUTION)
31	-	1	Part 32	( TH103518 NOT AVAILABLE)(STABILITY WARNING NAME PLATE TAG)
32	3029370	1	LABEL	(SUB FOR TH101399) (HEATER INSTRUCTIONS DECAL)
33	4163681	1	LABEL	(SUB FOR TH103941) (NAME PLATE)
34	4163682	1	Label	(SUB FOR TH103942) (NAME PLATE)
35	T107057	1	LABEL	(SUB FOR TH106907) (TAPE, BLACK STRIP)
36	T107626	1	SAFETY SIGN	(WARNING)(TO BE VISIBLE FROM OPERATOR STATION)
36	T107626	1	SAFETY SIGN	(WARNING)(ON UNITS WITHOUT BOOM, INSTALL LABEL PER DIRECTIONS ON REAR OF LABEL)

NAME PLATES, DECALS AND LABELS [01I11]
