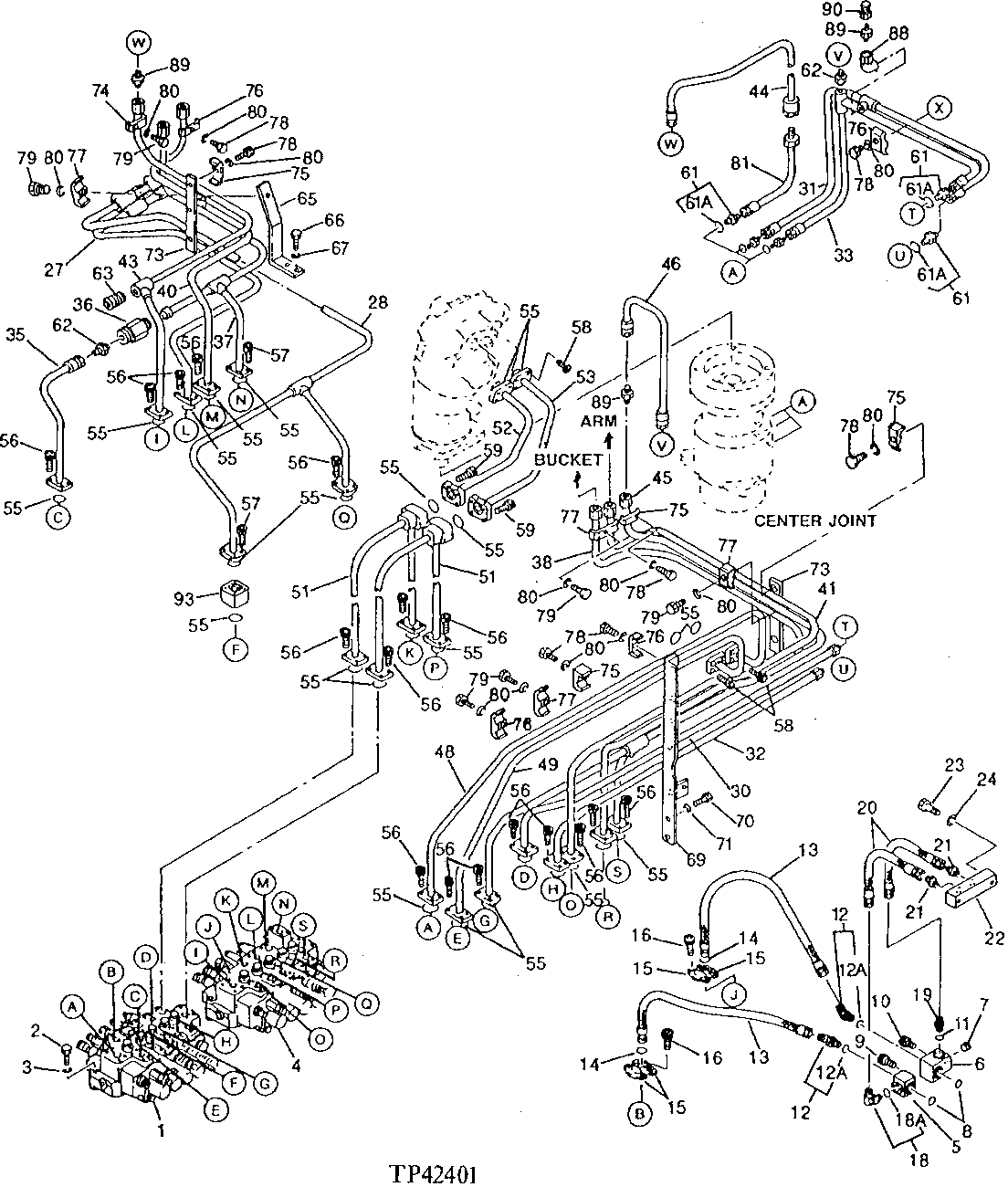

HIGH PRESSURE HYDRAULIC LINES AND HOSES [02G07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
57	19M8336	8	Screw	M10 X 100
58	19M8448	16	Screw	(SUB FOR TH101907)
59	19M8395	8	Screw	M12 X 40
61	4042033	3	ADAPTER FITTING	(SUB FOR TH101978)
62	94-1304	2	THREADED NIPPLE	(SUB FOR TH100985)
63	94-2025	1	Fitting Plug	(SUB FOR TH103776) (SUB FOR TH109497)
65	3027844	1	SUPPORT	(SUB FOR TH103777)
66	19M7662	2	Cap Screw	M10 X 30
67	12M7066	2	Lock Washer	10 MM, (SUB FOR TH100417)
69	8032306	1	SUPPORT	(SUB FOR TH103778)
70	19M8017	2	Cap Screw	M12 X 20
71	12H301	2	Lock Washer	1/2", (SUB FOR TH100413)
73	4150607	1	SUPPORT	(SUB FOR TH103779)
74	4053598	1	Clamp	(SUB FOR TH101032)
75	4053595	3	Clamp	(SUB FOR TH100947)
76	4053596	4	CLAMP	(SUB FOR TH100948)
77	4153488	4	Clamp	(SUB FOR TH103780)
78	19M7362	7	Cap Screw	M12 X 55
79	19M8348	5	Cap Screw	M12 X 65
80	12H301	12	Lock Washer	1/2", (SUB FOR TH100413)
81	9724393	1	OIL LINE	(SUB FOR TH105604)
88	94-0634	1	Elbow Fitting	(SUB FOR TH102980)
89	4192957	3	ADAPTER FITTING	(SUB FOR TH105605)
90	9718916	1	UNION FITTING	(SUB FOR TH105606)
93	4183563	1	SPACER	(SUB FOR TH105607)
61A	4506424	1	O-Ring	(SUB FOR TH100055)

HIGH PRESSURE HYDRAULIC LINES AND HOSES [02G07]
