Открытый узел

CHASSIS (TWO-STABILIZERS) [01J14]

CHASSIS (TWO-STABILIZERS) [01J14]

CHASSIS (TWO-STABILIZERS) [01J14]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

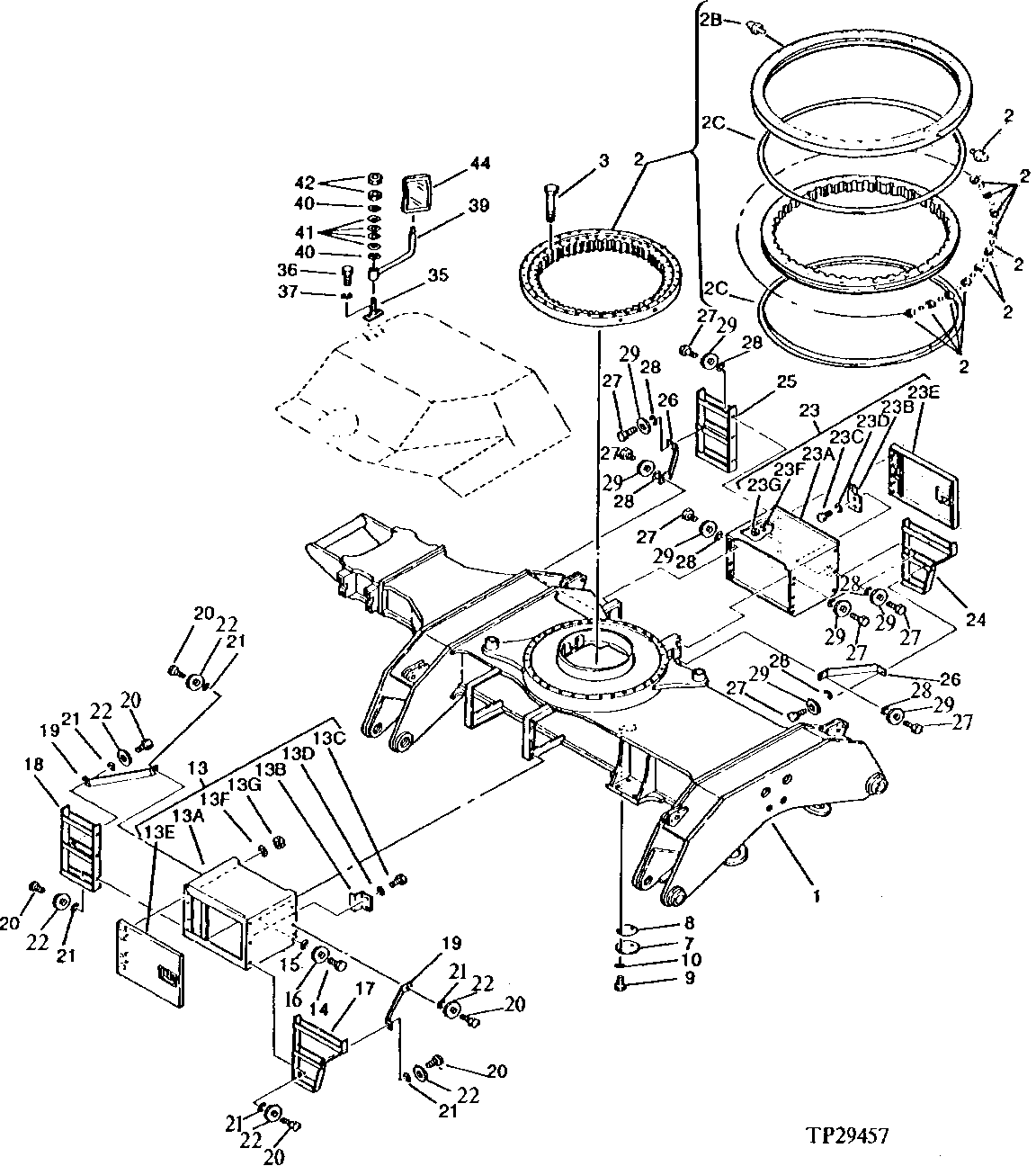

CHASSIS (TWO-STABILIZERS) [01J14]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	( TH104254 NO LONGER AVAILABLE)
2	9035176	1	SWING BEARING	(SUB FOR TH104228)
3	J932003	36	BOLT	(SUB FOR TH104234)
7	4093615	1	PLATE	(SUB FOR TH104235) (SUB FOR TH112221)
8	4150828	1	GASKET	(SUB FOR TH104236)
9	19M7938	2	Cap Screw	M10 X 20
10	12M7066	2	Lock Washer	10 MM, (SUB FOR TH100417)
13	9060180	1	TOOLBOX	(SUB FOR TH104237)
14	19M8765	8	Screw	M12 X 28, (SUB FOR 19M3204) (SUB FOR TH101717, ALONG WITH 12M7067)
15	12H301	8	Lock Washer	1/2", (SUB FOR TH100413)
16	12M7058	8	Lock Washer	12 MM, (SUB FOR 12M7067)
17	8028714	1	STEP	(SUB FOR TH104241)
18	8028715	1	STEP	(SUB FOR TH104242)
19	4155743	2	SUPPORT	(SUB FOR TH104243)
20	19M8765	10	Screw	M12 X 28, (SUB FOR 19M3204) (SUB FOR TH101717, ALONG WITH 12M7067)
21	12H301	10	Lock Washer	1/2", (SUB FOR TH100413)
22	12M7058	10	Lock Washer	12 MM, (SUB FOR 12M7067)
23	9066742	1	TOOLBOX	(SUB FOR TH104244)
24	8035075	1	STEP	(SUB FOR TH104247)
25	8035076	1	STEP	(SUB FOR TH104248)
26	4155743	2	SUPPORT	(SUB FOR TH104243)
27	19M8765	18	Screw	M12 X 28, (SUB FOR 19M3204) (SUB FOR TH101717, ALONG WITH 12M7067)
28	12H301	18	Lock Washer	1/2", (SUB FOR TH100413)
29	12M7058	18	Lock Washer	12 MM, (SUB FOR 12M7067)
35	9722060	1	BRACKET	(SUB FOR TH104249)
36	12M7058	2	Lock Washer	12 MM, (SUB FOR 12M7067)
36	19M8011	2	Cap Screw	M12 X 30
37	12H301	2	Lock Washer	1/2", (SUB FOR TH100413)
39	8017069	1	SUPPORT	(SUB FOR TH104251)
40	24M7053	2	Washer	17 X 30 X 3 MM, (SUB FOR TH100520)
41	4101568	4	WASHER	(SUB FOR TH104252)
42	14M7276	2	Nut	M16, (SUB FOR TH101725)
44	4317906	1	Rear View Mirror	(SUB FOR TH104119 AND 4335342 AND 4165676) ( TH104119 NO LONGER AVAILABLE)
44	4420724	1	Rear View Mirror	(SUB FOR AT185207)
2A	4428919	1	Ball	(SUB FOR AT182113 AND TH104229 AND 4355728)
2B	TH100074	3	Lubrication Fitting	-
2C	T203958	2	Seal	(SUB FOR T191211, TH104230 OR AT131732, TH103078 OR TH108166 AND AT131484) (ALSO ORDER TY21517 AND AT66866) (SUB FOR 4199645)
2C	TY21517	1	Adhesive	(NOT ILLUSTRATED)
2C	AT66866	1	Fluid	(NOT ILLUSTRATED)
2E	4127708	95	Spacer	(SUB FOR TH104232)
2F	4127707	14	Spacer	(SUB FOR TH104233)
13A	7013931	1	TOOLBOX	(SUB FOR TH104238)
13B	4155941	1	LATCH	(SUB FOR TH104239)
13C	12M7058	2	Lock Washer	12 MM, (SUB FOR 12M7067)
13C	19M8765	2	Screw	M12 X 28, (SUB FOR 19M3204) (SUB FOR TH101717, ALONG WITH 12M7067)
13D	12H301	2	Lock Washer	1/2", (SUB FOR TH100413)
13E	7013937	1	COVER	(SUB FOR TH104240)
13F	12M7066	4	Lock Washer	10 MM, (SUB FOR TH100417)
13G	14M7274	4	Nut	M10
23A	7016730	1	TOOLBOX	(SUB FOR TH104245)
23B	4155941	1	LATCH	(SUB FOR TH104239)
23C	12M7058	2	Lock Washer	12 MM, (SUB FOR 12M7067)
23C	19M8765	2	Screw	M12 X 28, (SUB FOR 19M3204) (SUB FOR TH101717, ALONG WITH 12M7067)
23D	12H301	2	Lock Washer	1/2", (SUB FOR TH100413)
23E	7015338	1	COVER	(SUB FOR TH104246)
23F	12M7066	4	Lock Washer	10 MM, (SUB FOR TH100417)
23G	14M7274	4	Nut	M10
