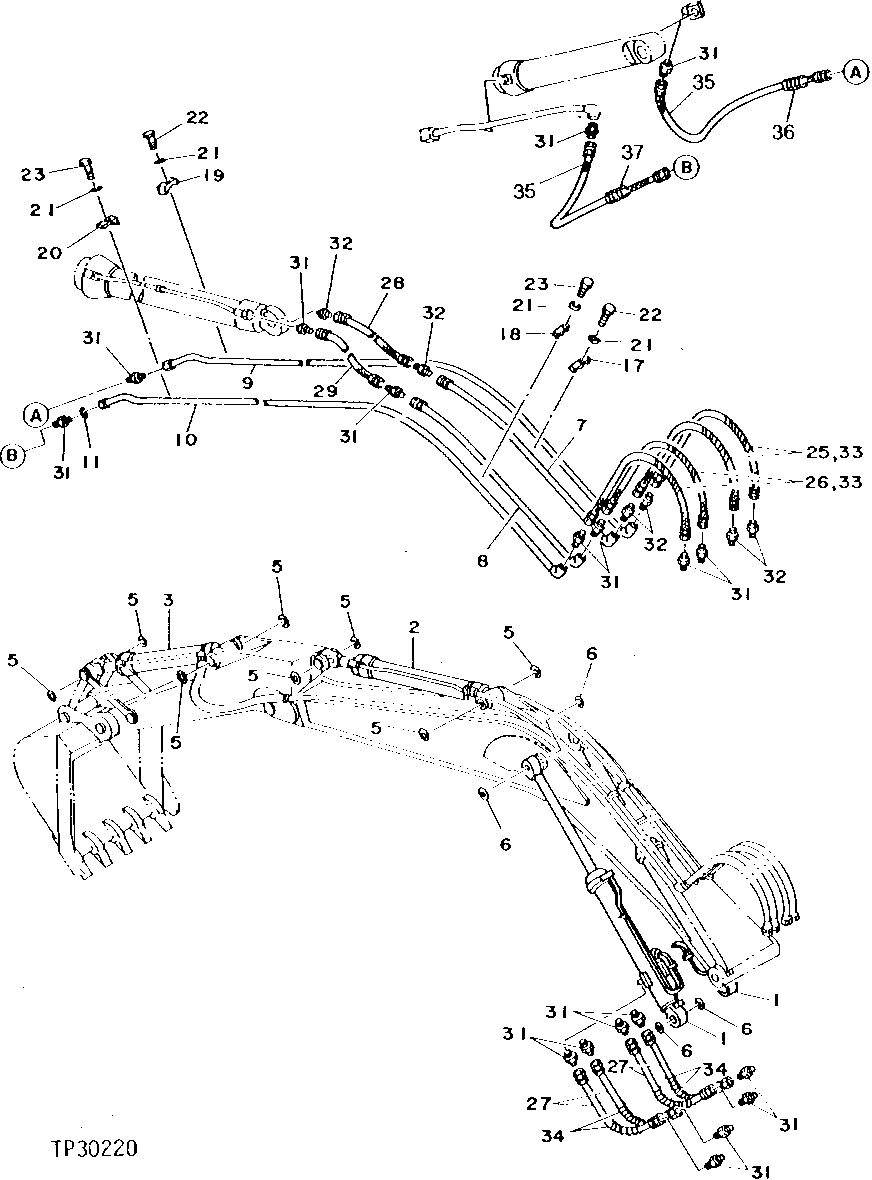

BOOM AND ARM HYDRAULIC LINES AND HOSES [02H03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4193203	2	HYDRAULIC CYLINDER	(SUB FOR TH105582, AT264209)
2	4193204	1	HYDRAULIC CYLINDER	(SUB FOR TH105583, AT264188)
3	TH105584	1	HYDRAULIC CYLINDER	(USE IF AVAILABLE) (IF TH105584 NO LONGER AVAILABLE, SUB 4193205)
3	4193205	1	HYDRAULIC CYLINDER	(REMANUFACTURED) (SUB FOR AT182464)
5	TH100374	8	Seal	-
6	TH104472	8	Seal	-
7	9724384	1	OIL LINE	(SUB FOR TH104483)
8	9724385	1	OIL LINE	(SUB FOR TH104484)
9	8034361	1	OIL LINE	(SUB FOR TH104485)
10	8034362	1	OIL LINE	(SUB FOR TH104486)
11	4061743	1	WASHER	(SUB FOR TH101572)
17	4053599	2	Clamp	(SUB FOR TH101980)
18	4053596	2	CLAMP	(SUB FOR TH100948)
19	4053598	2	Clamp	(SUB FOR TH101032)
20	4053595	2	Clamp	(SUB FOR TH100947)
21	12H301	8	Lock Washer	1/2", (SUB FOR TH100413)
22	19M8348	4	Cap Screw	M12 X 65
23	19M7362	4	Cap Screw	M12 X 55
25	4182718	2	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH104487)
26	4182716	2	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH104488)
27	4156474	4	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH104489)
28	4182717	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH104490)
29	4182714	1	HYDRAULIC HOSE	(SUB FOR TH104491)
31	4154654	18	ADAPTER FITTING	(SUB FOR TH100942)
32	4156432	6	ADAPTER FITTING	(SUB FOR TH101939)
33	3052919	4	TUBE	(SUB FOR TH100996) (SUB FOR AT138222) (CUT TO LENGTH)
34	4053613	4	GUARD	(SUB FOR TH104492)
35	4182611	2	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH104494)
36	4055189	2	Guard	(SUB FOR TH104496) (LONG ARM)
37	4053610	2	Hose Guard	(SUB FOR TH104495) (STANDARD ARM)

BOOM AND ARM HYDRAULIC LINES AND HOSES [02H03]
