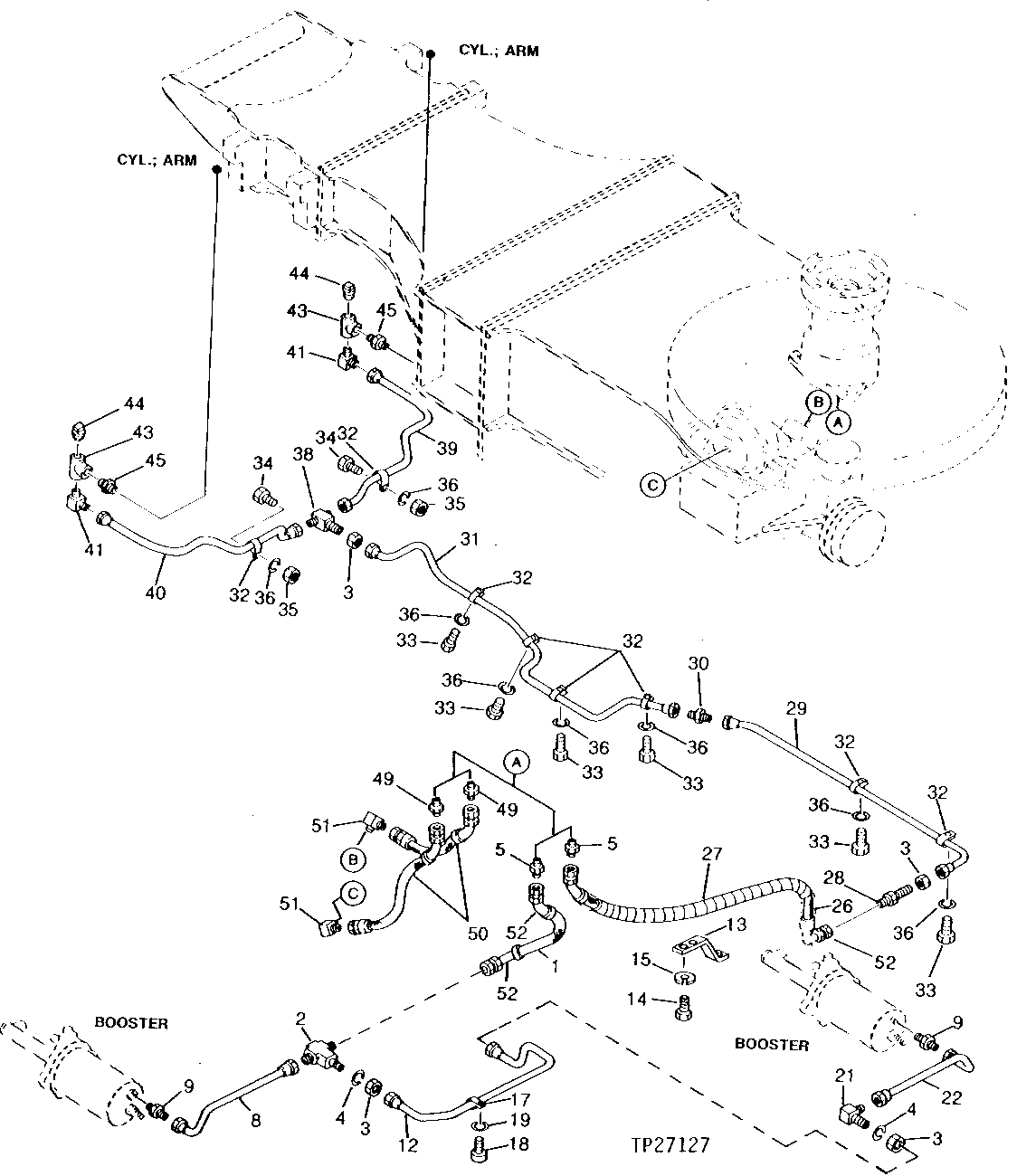

AXLE LOCK AND BRAKE LINES AND HOSES [01C11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR98204	1	Hydraulic Hose	9/16" X 407 MM (16") X 9/16", (SUB FOR TH104380, ALONG WITH (2) AU43156)
2	4186301	1	TEE FITTING	(SUB FOR TH104381)
3	14M7289	4	Nut	M16
4	12H294	2	Lock Washer	5/8", (SUB FOR TH100466)
5	4186629	2	ADAPTER FITTING	(SUB FOR TH104379)
8	8034956	1	OIL LINE	(SUB FOR TH104382)
9	4178056	2	ADAPTER FITTING	(SUB FOR TH104383)
12	8036000	1	OIL LINE	(SUB FOR TH105633)
13	-	1	Part 9	( TH104385 NOT AVAILABLE)
14	19M7938	2	Cap Screw	M10 X 20
15	12M7066	2	Lock Washer	10 MM, (SUB FOR TH100417)
17	TH104034	1	Clamp	-
18	21M7288	1	Screw	M6 X 10, (SUB FOR TH100547)
19	12M7006	1	Lock Washer	6 MM, (SUB FOR TH100548)
21	4179078	1	ELBOW FITTING	(SUB FOR TH104386)
22	8034955	1	OIL LINE	(SUB FOR TH104387)
26	AR86055	1	Hydraulic Hose	9/16" X 622 MM (24-1/2") X 9/16", (SUB FOR TH104388, ALONG WITH AU43156)
27	-	1	Part 18	(MAKE FROM AT138222 BULK MATERIAL, CUT TO LENGTH)
28	4183224	1	Adapter Fitting	(SUB FOR TH104007)
29	8028159	1	OIL LINE	(SUB FOR TH104389)
30	4043941	1	Adapter Fitting	(SUB FOR TH104006)
31	7015481	1	OIL LINE	(SUB FOR TH104390)
32	TH104034	8	Clamp	-
33	21M7288	6	Screw	M6 X 10, (SUB FOR TH100547)
34	19M7077	2	Cap Screw	M6 X 20
35	14M7272	2	Nut	M6
36	12M7006	8	Lock Washer	6 MM, (SUB FOR TH100548)
38	4165921	1	TEE FITTING	(SUB FOR TH104391)
39	8032267	1	OIL LINE	(SUB FOR TH104392)
40	8032266	1	OIL LINE	(SUB FOR TH104393)
41	4086584	2	ELBOW FITTING	(SUB FOR TH104012)
43	94-0660	2	Tee Fitting	(SUB FOR TH104394)
44	M800462	2	Plug	(SUB FOR TH101049)
45	T116057	2	Fitting	(SUB FOR TH101997)
49	4186629	2	ADAPTER FITTING	(SUB FOR TH104379)
50	AE25986	2	Hydraulic Hose	9/16" X 497 MM (19-1/2") X 9/16", (SUB FOR TH104395)
51	T115889	2	ELBOW FITTING	(SUB FOR TH101035)
52	AU43156	3	Elbow Fitting	-

AXLE LOCK AND BRAKE LINES AND HOSES [01C11]
