Открытый узел

PROPEL HYDRAULIC HOSES AND LINES (002295 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4189601	2	Adapter Fitting	(SUB FOR AT107394)
5	4341132	2	Adapter Fitting	(SUB FOR AT170424)
7	T76938	4	O-Ring	23.520 X 1.778 mm (0.926" X 0.070"), (SUB FOR TH108326)
11	4285723	2	Clamp	(SUB FOR TH109071 OR 4189859)
12	19M7361	2	Cap Screw	M12 X 50
13	4190124	2	Clamp	(SUB FOR TH108727)
14	12H301	2	Lock Washer	1/2"
14	19M7493	2	Cap Screw	M12 X 40
20	4200469	2	Adapter Fitting	(SUB FOR TH108400)
21	4200466	1	Adapter Fitting	(SUB FOR TH108320)
22	4157562	2	Elbow Fitting	(SUB FOR TH109540)
23	A853166	2	Adapter Fitting	(SUB FOR AT107392 OR 4189619)
24	7028015	1	Oil Line	(SUB FOR AT170425)
25	7028016	1	Oil Line	(SUB FOR AT170426)
26	7028017	1	Oil Line	(SUB FOR AT170427)
27	7028018	1	Oil Line	(SUB FOR AT170429)
28	7028019	1	Oil Line	(SUB FOR AT170428)
29	T77858	8	O-Ring	18.771 X 1.778 mm (0.739" X 0.070"), (SUB FOR TH108349)
31	AT170430	2	Hydraulic Hose	30.1752" X 520 mm (20-1/2") X 30.1752"
32	AT170431	2	Hydraulic Hose	30.1752" X 480 mm (19") X 30.1752"
1A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
5A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
20A	4506418	1	O-Ring	(SUB FOR U46489)
21A	CH11570	1	O-Ring	-
22A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
23A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)

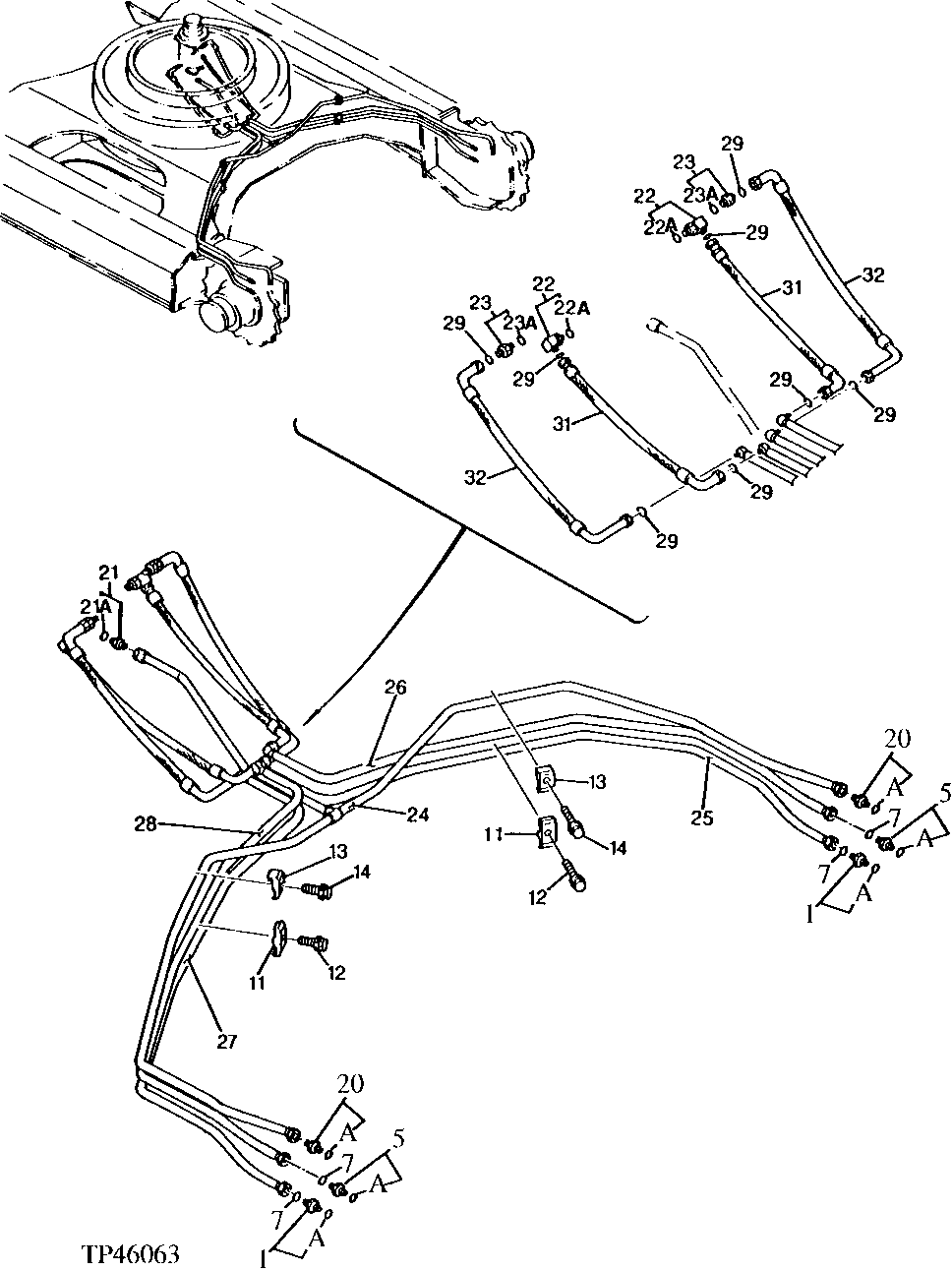

PROPEL HYDRAULIC HOSES AND LINES (002295 - )

Нет текстового описания
