PILOT HYDRAULICS THREE-SPOOL SOLENOID VALVE

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	( TH109249 NO LONGER AVAILABLE)
2	-	1	Part 2	( TH109250 NO LONGER AVAIALBLE)
3	0308711	3	Spring	(SUB FOR TH109259)
4	CH11570	3	O-Ring	-
5	985099	3	O-Ring	(SUB FOR TH101479)
6	AT264333	3	O-Ring	(SUB FOR TH100096)
8	-	2	Part 15	( TH109260 NO LONGER AVAILABLE)
9	0308713	3	O-Ring	(SUB FOR TH109261)
10	-	3	Part 19	( 0308714 NO LONGER AVAILABLE), (SUB FOR TH109262)
10	4488303	3	Line	-
11	4488306	3	Valve Seat	(SUB FOR TH109263, 0308715 OR 4605187)
12	4488310	3	Spring	(SUB FOR TH109264 OR 0308716)
13	0308717	3	PLUNGER	(SUB FOR TH109265)
14	0308718	3	Stop	(SUB FOR TH109266)
15	4488302	3	Rod	(SUB FOR 0308719 ) (SUB FOR TH109267)
16	-	3	Part 26	( TH109268 NO LONGER AVAILABLE)
17	4488304	3	Spacer	(SUB FOR TH109269 OR 0308721)
18	0308722	3	Solenoid	(SUB FOR TH109270)
19	-	1	Part 29	(SUB TH108398)( TH109271 NO LONGER AVAILABLE)
20	0308724	3	Screw	(SUB FOR TH109272)
25	-	1	Part 33	ECONOMY MODE ( TH109273 NO LONGER AVAILABLE) (SUB STANDARD ELECTRICAL VINYL TAPE CUT TO LENGTH)
26	-	1	Part 34	AUTOMATIC IDLE ( TH109274 NO LONGER AVAILABLE) (SUB STANDARD ELECTRICAL VINYL TAPE CUT TO LENGTH)
27	-	1	Part 35	HYDRAULIC PUMP (HIGH-LOW MAXIMUM DISPLACEMENT) ( TH109275 NO LONGER AVAILABLE) (SUB STANDARD ELECTRICAL VINYL TAPE CUT TO LENGTH)
28	4196411	1	Solenoid Valve	(SUB FOR TH108398)
29	AT146246	1	Shim Kit	(INCLUDES PARTS MARKED (A))
2A	-	1	Part 3	( TH109251 NO LONGER AVAILABLE)
2B	4487648	1	Gasket	(SUB FOR TH109252 OR 0308704)
2C	4487138	1	O-Ring	(SUB FOR TH109253 OR 0308705)
2D	-	1	Part 6	(A) ( TH109254 NO LONGER AVAILABLE FOR SERVICE - ORDER AT146246 KIT)
2D	-	1	Part 9	(A) ( TH109255 NO LONGER AVAILABLE FOR SERVICE - ORDER AT146246 KIT)
2D	-	1	Part 10	(A) ( TH109256 NO LONGER AVAILABLE FOR SERVICE - ORDER AT146246 KIT)
2E	-	1	Part 7	( TH109257 NO LONGER AVAILABLE)
2F	0308710	1	Spring	(SUB FOR TH109258)
8A	-	1	Part 16	-
8B	-	1	Part 17	-
19A	-	1	Part 30	(SUB TH108398)
19B	-	1	Part 31	(SUB TH108398)

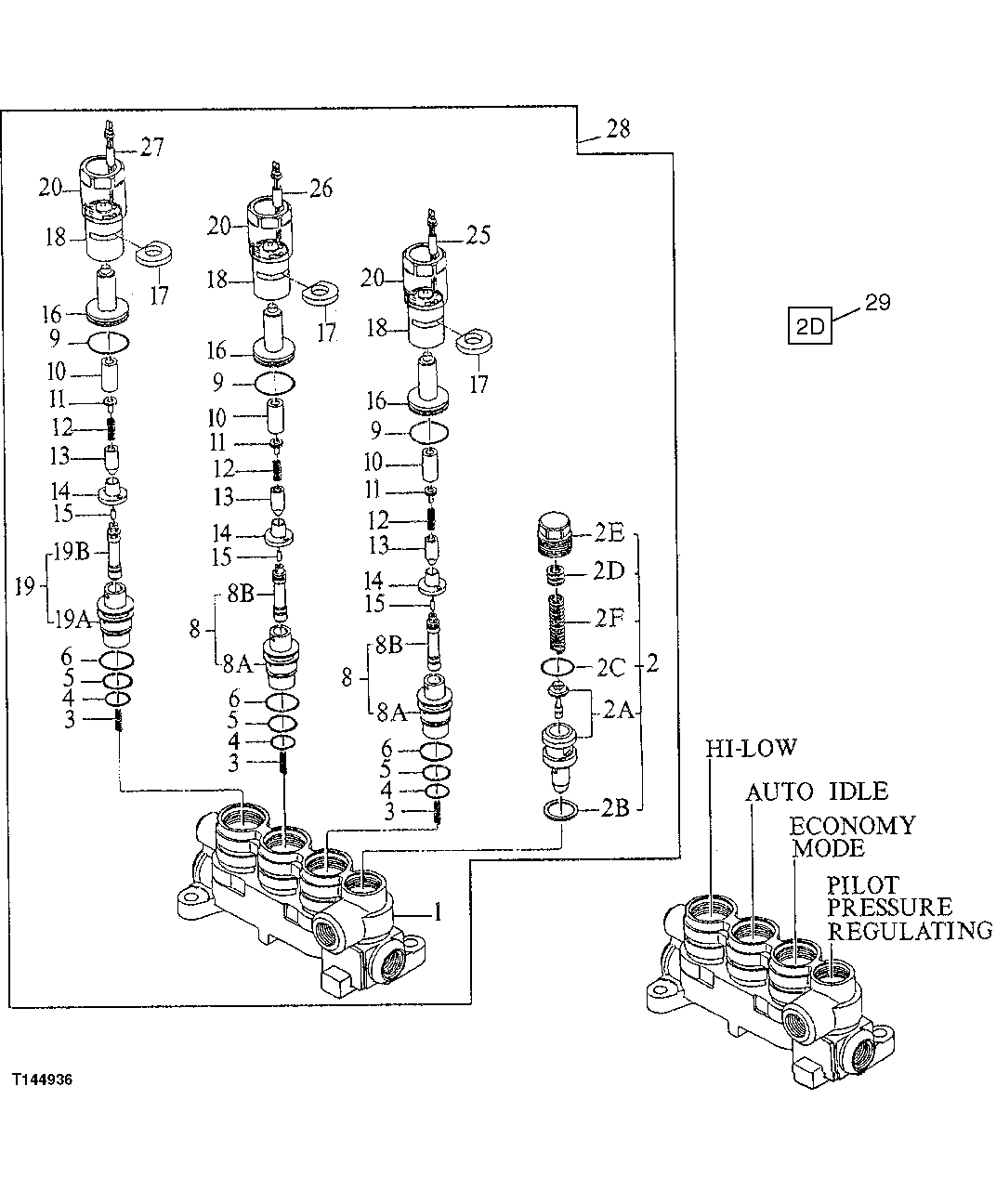

PILOT HYDRAULICS THREE-SPOOL SOLENOID VALVE
