Открытый узел

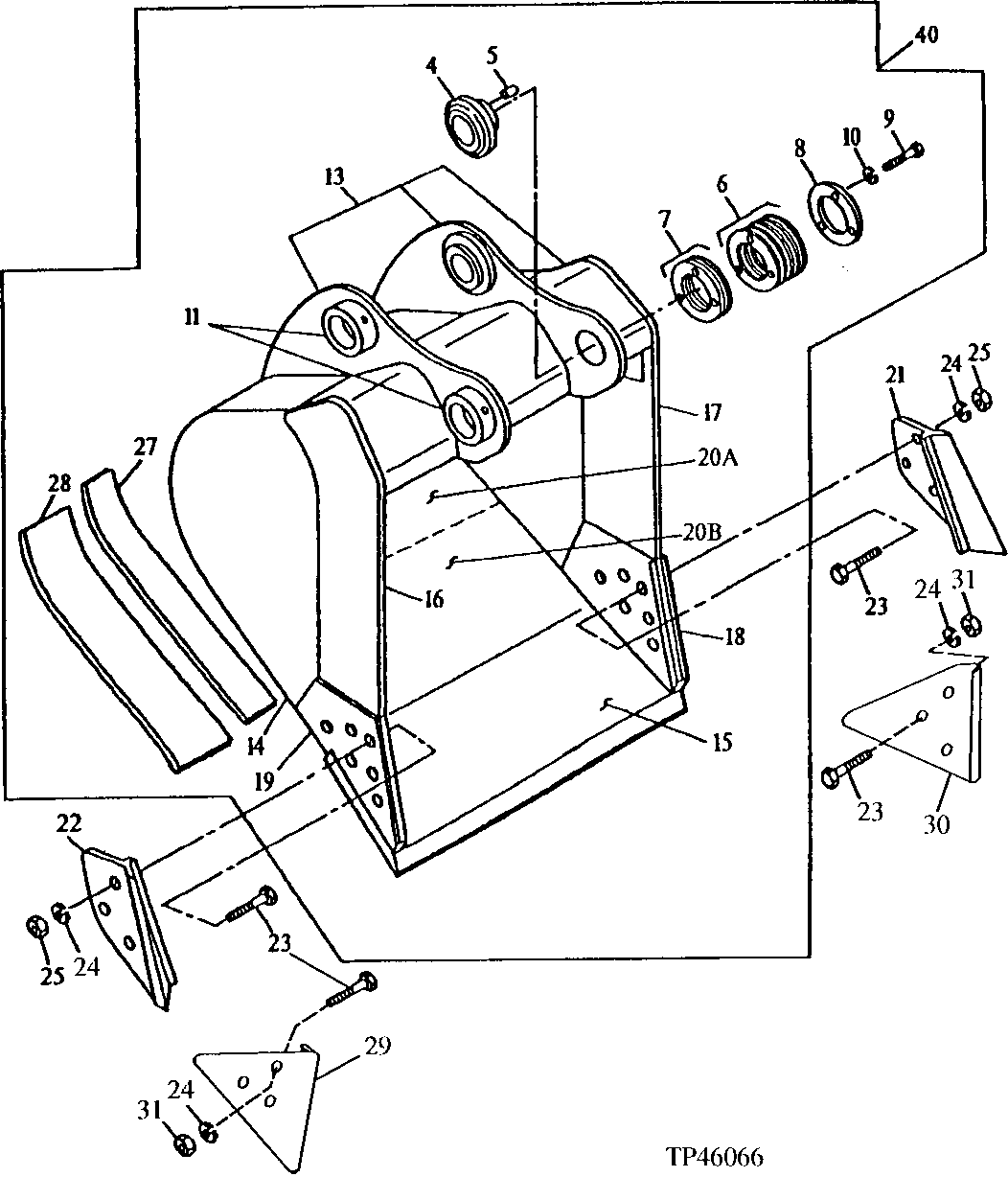

HEAVY DUTY BUCKET (ORDER TEETH SEPARATELY)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	-	1	Part 1	( AT131083 NLA)
5	R48685	1	Dowel Pin	-
6	TH104512	9	Washer	(1 MM)
7	TH104513	1	Shim	(.5 MM)
8	TH104514	1	Spacer	-
9	19H2706	3	Cap Screw	5/8" X 2"
10	12H294	3	Lock Washer	5/8"
11	TH104509	2	Bushing	-
13	C607429	1	Pivot	(John Deere Dealer Order Directly From Woods-Central Fabricators) (BUCKET EAR BLANK ASSEMBLY)
14	300167	2	Plate	(John Deere Dealer Order Directly From Woods-Central Fabricators) (RIGHT AND LEFT SIDE)
15	AT131082	1	Dura-Max Cutting Edge	(CUT TO LENGTH)
16	300159	1	Vertical Cutter	(John Deere Dealer Order Directly From Woods-Central Fabricators) (UPPER RIGHT SIDE CUTTER)
17	300160	1	Vertical Cutter	(John Deere Dealer Order Directly From Woods-Central Fabricators) (UPPER LEFT SIDE CUTTER)
18	300158	1	Vertical Cutter	(John Deere Dealer Order Directly From Woods-Central Fabricators) (LEFT SIDE CUTTER INSERT)
19	300157	1	Vertical Cutter	(John Deere Dealer Order Directly From Woods-Central Fabricators) (RIGHT SIDE CUTTER INSERT)
21	-	1	Part 22	(SUB AT131080)
22	-	1	Part 23	(SUB AT131080)
23	09H1770	6	Bolt	7/8" X 2-1/2"
24	12H245	6	Lock Washer	7/8"
25	14H1077	6	Nut	7/8"
27	300156	1	Bar	(John Deere Dealer Order Directly From Woods-Central Fabricators) (INNER WEAR)
28	306452	2	Bar	(John Deere Dealer Order Directly From Woods-Central Fabricators) (OUTER WEAR)
29	-	1	Part 29	(WEAR SHROUD), (SUB AT167874)
30	-	1	Part 30	(WEAR SHROUD), (SUB AT167874)
31	14H1044	6	Nut	7/8", (K2)
40	-	1	Part 32	(SUB FOR AT131027, AT131147 ) (SUB AT332679)WHOLEGOODS (24 INCH - .59 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) ( AT163589 NLA)
40	-	1	Part 33	(SUB FOR AT131028, AT131148 ) (SUB AT332680)WHOLEGOODS (30 INCH - .77 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) ( AT163590 NLA)
40	-	1	Part 34	(SUB FOR AT131029, AT131149 ) (SUB AT332681)WHOLEGOODS (36 INCH - .95 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) ( AT163591 NLA)
40	-	1	Part 35	(SUB FOR AT160741, AT160742 ) (SUB AT332682)WHOLEGOODS (42 INCH - 1.12 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) ( AT163592 NLA)
90	-	1	Part 36	( AT131080 NLA) (SIDE CUTTER KIT), WHOLEGOODS (WOODS-CENTRAL FABRICATORS NO. C20338)
91	-	1	Part 37	(AT167874 NLA) (EDGE PROTECTOR KIT), WHOLEGOODS (WOODS-CENTRAL FABRICATORS NO. C28357)
20A	600115	1	Moldboard	(John Deere Dealer Order Directly From Woods-Central Fabricators) (UPPER MOLDBOARD - 36 INCH BUCKET)
20A	600114	1	Moldboard	(John Deere Dealer Order Directly From Woods-Central Fabricators) (UPPER MOLDBOARD - 30 INCH BUCKET)
20A	600113	1	Moldboard	(John Deere Dealer Order Directly From Woods-Central Fabricators) (UPPER MOLDBOARD - 24 INCH BUCKET)
20B	600120	1	Moldboard	(UPPER MOLDBOARD - 36 INCH BUCKET)
20B	600119	1	Moldboard	(John Deere Dealer Order Directly From Woods-Central Fabricators) (UPPER MOLDBOARD - 30 INCH BUCKET)
20B	600118	1	Moldboard	(John Deere Dealer Order Directly From Woods-Central Fabricators) (UPPER MOLDBOARD - 24 INCH BUCKET)

HEAVY DUTY BUCKET (ORDER TEETH SEPARATELY)
