Открытый узел

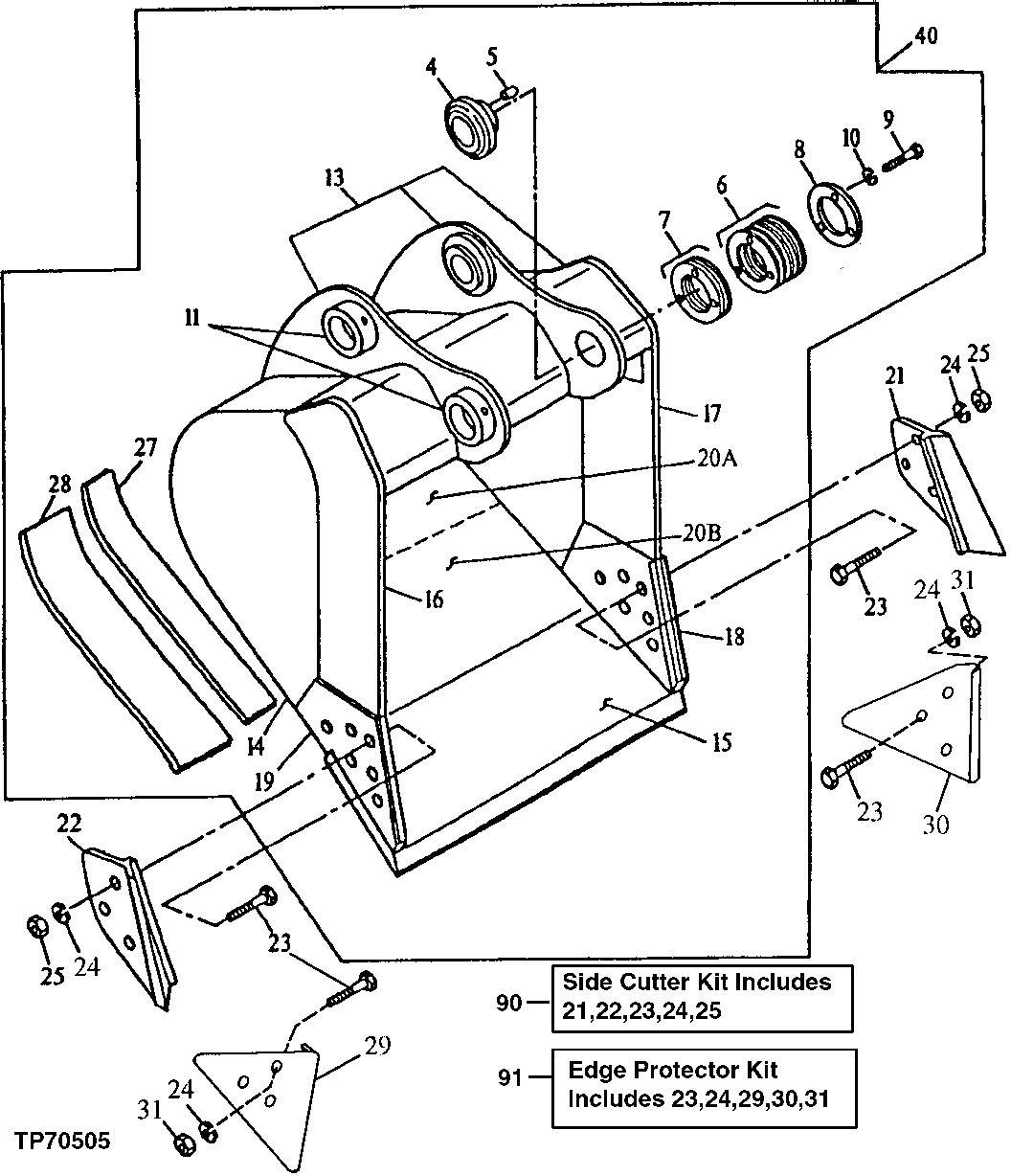

GENERAL PURPOSE HIGH CAPACITY BUCKET (ORDER TEETH SEPARATELY)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	-	1	Part 1	( AT131083 NLA)
5	R48685	1	Dowel Pin	-
6	TH104512	9	Washer	(1 MM)
7	TH104513	1	Shim	(.5 MM)
8	TH104514	1	Spacer	-
9	19H2706	3	Cap Screw	5/8" X 2"
10	12H294	3	Lock Washer	5/8"
11	TH104509	2	Bushing	-
13	C607429	1	Pivot	(John Deere Dealer Order Directly From Woods-Central Fabricators) (BUCKET EAR BLANK ASSEMBLY)
14	300298	2	Plate	(John Deere Dealer Order Directly From Woods-Central Fabricators) (RIGHT AND LEFT SIDE)
15	AT131082	1	Dura-Max Cutting Edge	(CUT TO LENGTH)
16	300296	1	Vertical Cutter	(John Deere Dealer Order Directly From Woods-Central Fabricators) (UPPER RIGHT SIDE CUTTER)
17	300297	1	Vertical Cutter	(John Deere Dealer Order Directly From Woods-Central Fabricators) (UPPER LEFT SIDE CUTTER)
18	300295	1	Vertical Cutter	(John Deere Dealer Order Directly From Woods-Central Fabricators) (LEFT SIDE CUTTER INSERT)
19	300294	1	Vertical Cutter	(John Deere Dealer Order Directly From Woods-Central Fabricators) (RIGHT SIDE CUTTER INSERT)
20A	600252	1	Moldboard	(John Deere Dealer Order Directly From Woods-Central Fabricators) (UPPER MOLDBOARD - 24 INCH BUCKET)
20A	600253	1	Moldboard	(John Deere Dealer Order Directly From Woods-Central Fabricators) (UPPER MOLDBOARD - 30 INCH BUCKET)
20A	600254	1	Moldboard	(John Deere Dealer Order Directly From Woods-Central Fabricators) (UPPER MOLDBOARD - 36 INCH BUCKET)
20A	600255	1	Moldboard	(John Deere Dealer Order Directly From Woods-Central Fabricators) (UPPER MOLDBOARD - 42 INCH BUCKET)
20B	600247	1	Moldboard	(John Deere Dealer Order Directly From Woods-Central Fabricators) (LOWER MOLDBOARD - 24 INCH BUCKET)
20B	600248	1	Moldboard	(John Deere Dealer Order Directly From Woods-Central Fabricators) (LOWER MOLDBOARD - 30 INCH BUCKET)
20B	600249	1	Moldboard	(John Deere Dealer Order Directly From Woods-Central Fabricators) (LOWER MOLDBOARD - 36 INCH BUCKET)
20B	600250	1	Moldboard	(John Deere Dealer Order Directly From Woods-Central Fabricators) (LOWER MOLDBOARD - 42 INCH BUCKET)

GENERAL PURPOSE HIGH CAPACITY BUCKET (ORDER TEETH SEPARATELY)
