AUXILIARY FUNCTION VALVE, HOSES, PEDAL, CIRCUIT RELIEF VALVES AND PEDAL LOCK

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4208911	1	Tee Fitting	(SUB FOR TH110202 ) (SUB FOR AT126456)
2	AT72803	1	HYDRAULIC HOSE - FABRICATE	9/16" X 1498 mm (59") X 9/16", (SUB FOR TH110198)
3	24M7028	2	Washer	10.500 X 20 X 2 mm
4	9727637	1	PLATE	(SUB FOR TH108457)
5	9727639	1	HOSE CLAMP	(SUB FOR TH108456)
6	12M7066	8	Lock Washer	10 mm
7	19M7550	4	Cap Screw	M10 X 35
8	4208473	1	Tee Fitting	(SUB FOR TH110203)
9	AT69452	1	Hydraulic Hose	(SUB FOR TH110199)
10	9728875	1	FOOTREST	(SUB FOR TH110195)
11	19M7402	2	Cap Screw	M10 X 25
12	24M7028	2	Washer	10.500 X 20 X 2 mm
13	8046079	1	PEDAL	(SUB FOR TH110191 ) (SUB FOR AT134292)
14	14M7273	1	Nut	M8
15	19M8008	1	Cap Screw	M8 X 35
16	34M7062	1	Spring Pin	5 X 32 mm
17	34M7124	1	Spring Pin	8 X 30 mm, (SUB FOR 34M7065)
18	4211166	1	SUPPORT	(SUB FOR TH110190)
19	19M8008	3	Cap Screw	M8 X 35
20	12M7064	3	Lock Washer	5 mm
21	9074843	1	Hyd Actuated Control Valve	(SUB FOR TH110188)USE WITH (2) AT128070 CIRCUIT RELIEF VALVES (NOT INCLUDED IN TH108154)
22	45M3667	1	Pin Fastener	10 X 28 mm, (SUB FOR TH105681)
23	9733399	1	Bracket	(SUB FOR TH110192 ) (SUB FOR AT134303)
24	4149125	1	SPRING	(SUB FOR TH106748)
25	8034081	1	BRACKET	(SUB FOR TH110193)
26	19M8761	2	Screw	M10 X 22, (SUB FOR TH102993)
27	11M7082	1	Cotter Pin	2.500 X 25 mm, (SUB FOR 11M7080)
28	4211167	1	SPACER	(SUB FOR TH110194)
28	14M7274	2	Nut	M10, (NOT ILLUSTRATED) UNDER CAB FLOOR BENEATH TH110194
29	4200467	3	Adapter Fitting	(SUB FOR TH108417)
30	AT130683	1	Hydraulic Hose	9/16" X 2349 mm (92-1/2") X 9/16", (SUB FOR TH110196 OR 4210338, ALONG WITH AE24616)
31	AT318014	1	Elbow Fitting	(SUB FOR 4156434 ) (SUB FOR TH101930)
32	AT130683	1	Hydraulic Hose	9/16" X 2349 mm (92-1/2") X 9/16", (SUB FOR TH110197 OR 4210352, ALONG WITH AE24616)
33	9728874	1	Plate	(SUB FOR TH110189)
34	AT72803	1	HYDRAULIC HOSE - FABRICATE	9/16" X 1498 mm (59") X 9/16", (SUB FOR 4209792, ALONG WITH R27238 AND 14H832)
34	R27238	1	Fitting	(NOT ILLUSTRATED)
34	14H832	1	Nut	9/16", (NOT ILLUSTRATED)
35	4202422	1	Adapter Fitting	(SUB FOR TH108440)
36	4200466	1	Adapter Fitting	(SUB FOR TH108320)
37	AT50269	1	HYDRAULIC HOSE - FABRICATE	9/16" X 1016 mm (40") X 9/16", (SUB FOR 4209793, ALONG WITH R27238 AND 14H832)
37	R27238	1	Fitting	(NOT ILLUSTRATED)
37	14H832	1	Nut	9/16"
38	M45242	1	Clamp	(SUB FOR TH108321 ) (SUB FOR 4190292)
40	TH108154	1	KIT	AUXILIARY FUNCTION, (ALSO ORDER (2) 4265364)
41	AE24616	2	Elbow Fitting	-
42	3040042	1	MAT	(SUB FOR AT132472)
1A	CH11570	1	O-Ring	-
29A	M800650	1	Packing	-
31A	M800650	1	Packing	-
35A	CH11570	1	O-Ring	-
36A	CH11570	1	O-Ring	-

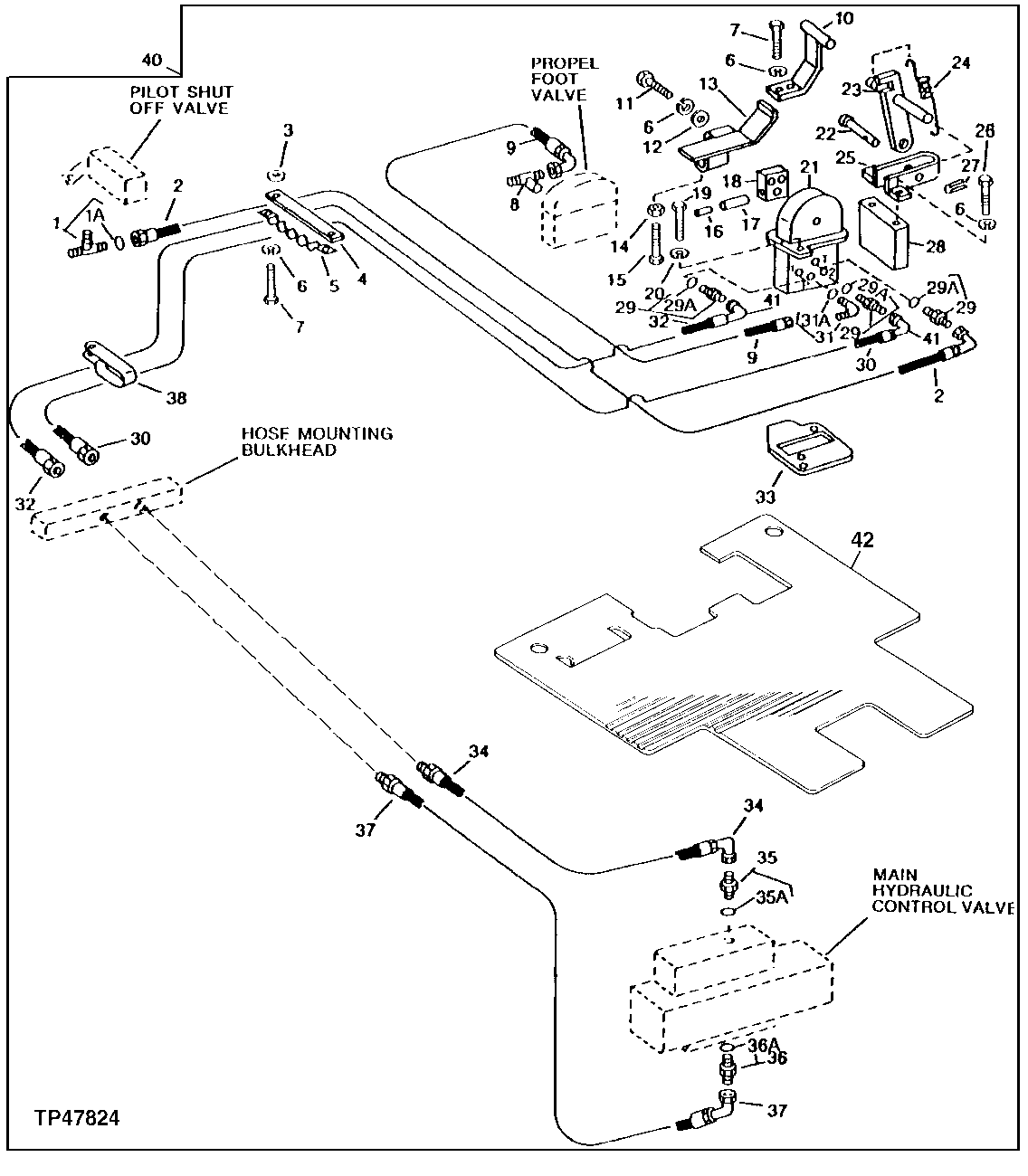

AUXILIARY FUNCTION VALVE, HOSES, PEDAL, CIRCUIT RELIEF VALVES AND PEDAL LOCK
