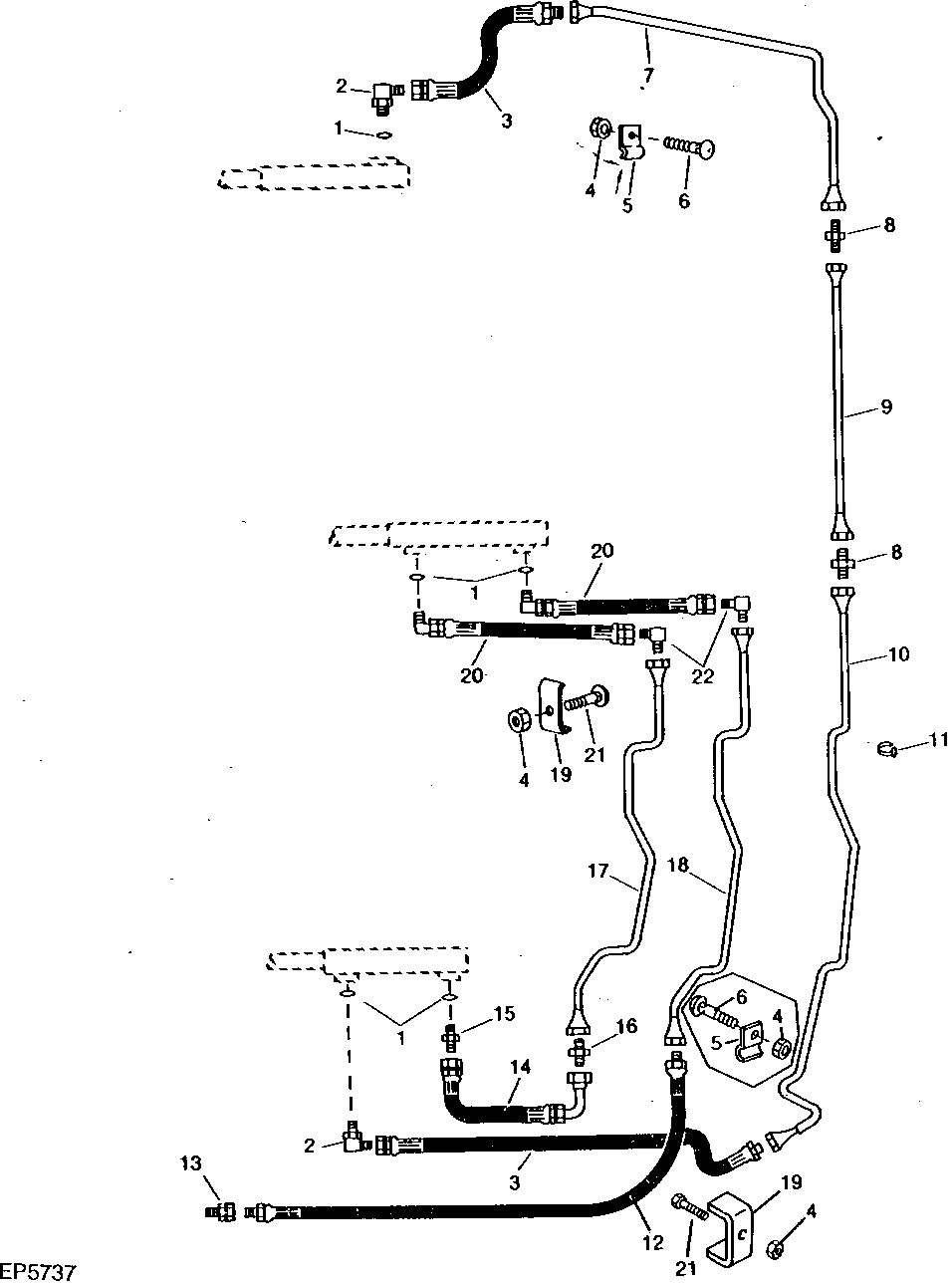

REEL LIFT HYDRAULIC CIRCUIT (36 FT (10.9M) WINDROWER) [C13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26448	5	O-Ring	-
2	AM31412	2	Elbow Fitting	(SUB AT35121 AND R26448) 90°
3	ES10646	2	HYDRAULIC HOSE	(SUB FOR AW24813)
4	K40003	4	Lock Nut	3/8"
5	W35541	1	CLAMP	-
6	03H1500	1	Bolt	3/8" X 1"
7	AW25041	1	OIL LINE	1/4" OD
7	ES10642	1	OIL LINE	3/8" OD
8	H33795	2	Union Fitting	1/4" TUBE
8	R27095	2	Fitting	3/8" TUBE
9	AW26315	1	OIL LINE	1/4" TUBE, (SUB ES10643)
9	ES10643	1	OIL LINE	3/8" TUBE
10	AW25040	1	OIL LINE	1/4" OD
10	ES10644	1	OIL LINE	3/8" OD
11	W36415	16	CLIP	(FOR 1/4" O.D. TUBE)
11	W36457	32	CLIP	(FOR 3/8" O.D. TUBE)
11	W36457	16	CLIP	(FOR 3/8" O.D. TUBE)
12	AW26336	1	HYDRAULIC HOSE	(TRACTOR TO REEL LIFT CYLINDER)
13	AW24815	1	HYDRAULIC RESTRICTOR	(0.052" DIAMETER ORIFICE)
14	AW26334	1	HYDRAULIC HOSE	-
15	AM31413	1	Fitting	(INCLUDES R26448)
16	R27095	1	Fitting	-
17	AW26316	1	OIL LINE	-
18	AW26317	1	OIL LINE	-
19	W36477	2	CLAMP	-
20	AW26337	2	HYDRAULIC HOSE	-
21	03H1834	2	Bolt	3/8" X 2"
22	T19821	2	ELBOW FITTING	90°

REEL LIFT HYDRAULIC CIRCUIT (36 FT (10.9M) WINDROWER) [C13]
