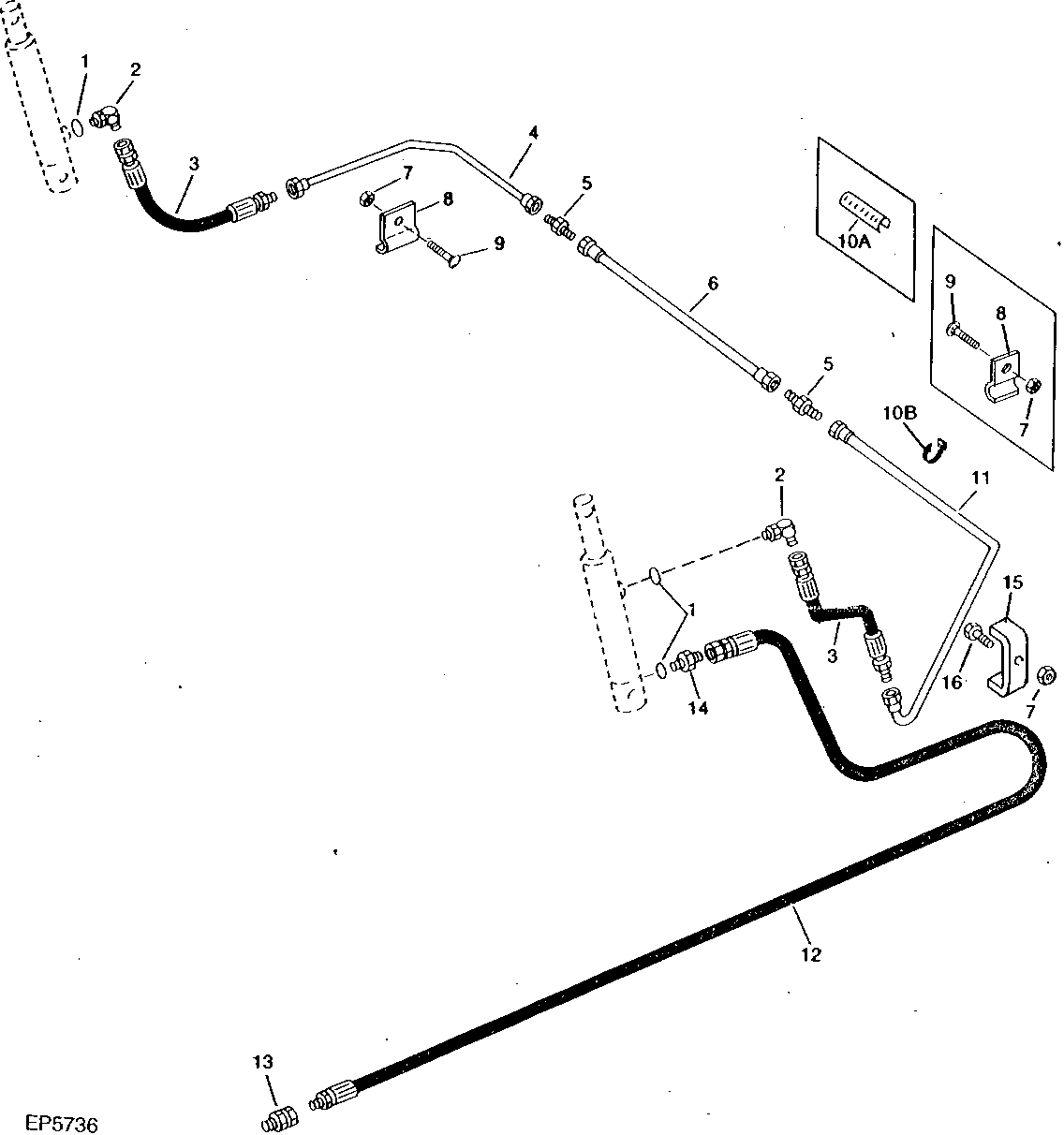

REEL LIFT HYDRAULIC CIRCUIT (21 FT (6.4M), 25 FT (7.6M) AND 30 FT (9.1M) WINDROWERS) [C11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26448	3	O-Ring	-
2	AT35121	2	Elbow Fitting	-
3	AW24813	2	HYDRAULIC HOSE	-
3	ES10646	2	HYDRAULIC HOSE	-
4	AW24933	1	OIL LINE	21' (6.4M)
4	AW24932	1	OIL LINE	25' (7.6M)
4	AW24750	1	OIL LINE	30' (9.1M)
4	AW25041	1	OIL LINE	21' (6.4M), 25' (7.6M), 30' (9.1M)
5	H33795	1	Union Fitting	21' (6.4M), 25' (7.6M), 30' (9.1M)
5	H33795	1	Union Fitting	(1 USED ON 21' (6.4M), 2 USED ON 25' (7.6M) AND 30' (9.1M))
6	AW25045	1	OIL LINE	25' (7.6M)
6	AW25044	1	OIL LINE	30' (9.1M)
7	K40003	2	Lock Nut	3/8"
8	W35541	1	CLAMP	-
9	03H1500	1	Bolt	3/8" X 1"
11	AW24749	1	OIL LINE	21' (6.4M), 25' (7.6M), 30'(9.1M)
11	AW25042	1	OIL LINE	21' (6.4M), 25' (7.6M)
11	AW25040	1	OIL LINE	30' (9.1M)
12	AW24817	1	HYDRAULIC HOSE	-
13	AW24814	1	HYDRAULIC RESTRICTOR	(0.052" DIAMETER ORIFICE)
14	AM31413	1	Fitting	(INCLUDES R26448)
15	W36477	1	CLAMP	-
16	03H1834	1	Bolt	3/8" X 2"
10A	W36111	1	GUARD	(18 USED ON 21' (6.4M), 20 USED ON 25' (7.6M), 24 USED ON 30' (9.1M))
10B	W36415	1	CLIP	(16 USED ON 21' (6.4M), 20 USED ON 25' (7.6M), 22 USED ON 30' (9.1M))

REEL LIFT HYDRAULIC CIRCUIT (21 FT (6.4M), 25 FT (7.6M) AND 30 FT (9.1M) WINDROWERS) [C11]
